Solid Carbide Lockcase Cutter – Professional Door Mortice & Lock Recess Router Bits
Couldn't load pickup availability
Same Day Despatch - Mon To Fri
On All Orders Ordered Before 3pm
3 Flute Long Reach Spiral Upcut Roughing Router Cutters

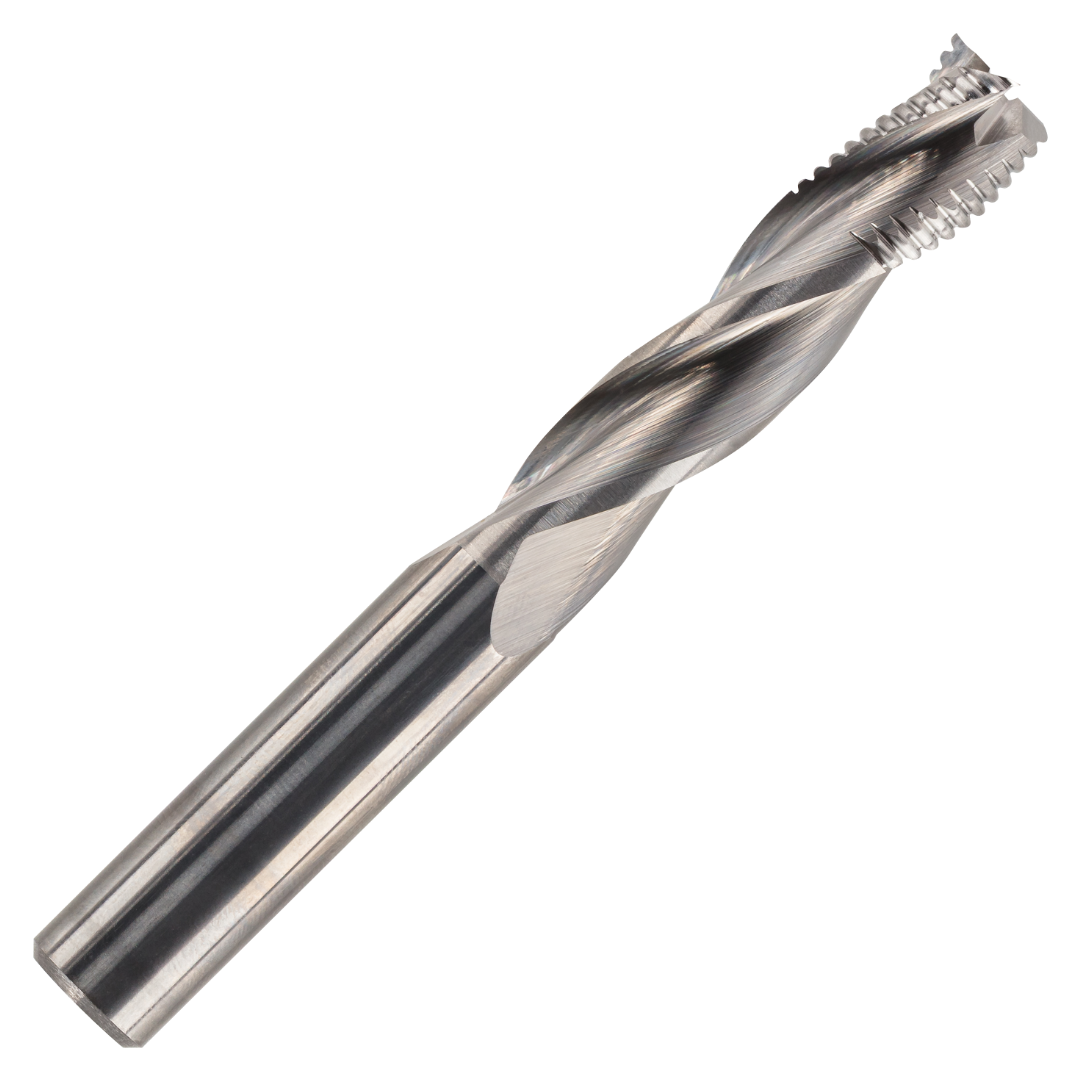

Our Solid Carbide CNC Lock case Cutters are specifically designed for use on CNC routing machines, delivering clean, accurate lockcase recesses with maximum consistency and repeatability.
Manufactured from premium solid carbide, this cutter offers exceptional rigidity, heat resistance, and edge retention — making it ideal for high-speed CNC machining environments.
Designed for professional door manufacturers, joinery workshops, and CNC production facilities.
Designed For
-
CNC door machining centres
-
Automated lockcase recess cutting
-
Production door workshops
-
Hardwood, softwood & engineered doors
-
Repetitive high-precision lock preparation
⚠️ For CNC use only. Not suitable for handheld routers.
Micrograin carbide for increased wear resistance
Lower chip pressure due chipbreaker flutes
This tool is designed for optimal chip flow when cutting deep holes
| Cutting Diameter (D) | Flute Length (A) | Neck Relief (I) | Overall Length (L) | Shank Diameter (S) |

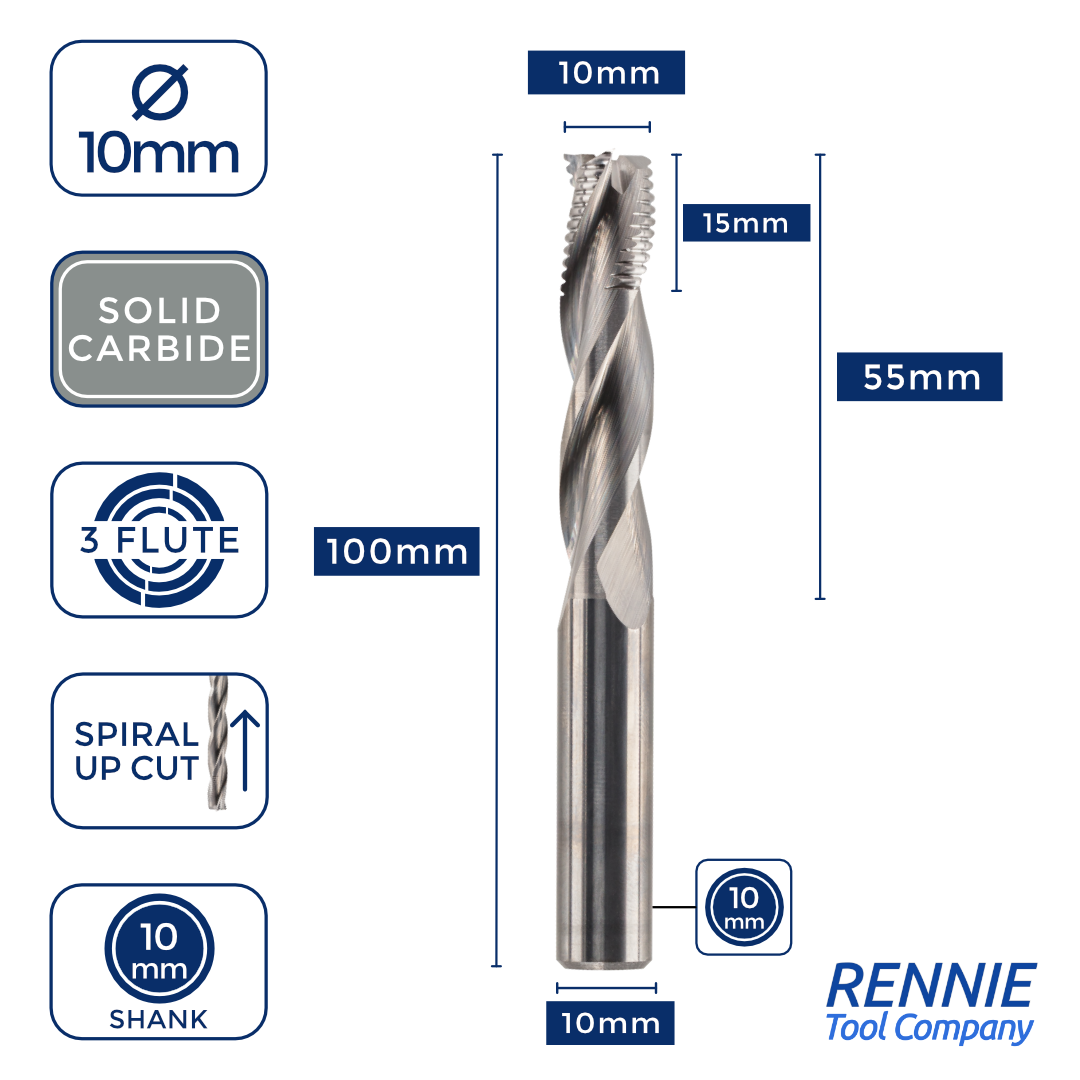

| 10mm | 15mm | 55mm | 100mm | 10mm |
| 12mm | 15mm | 50mm | 100mm | 12mm |
| 12mm | 26mm | 80mm | 130mm | 12mm |

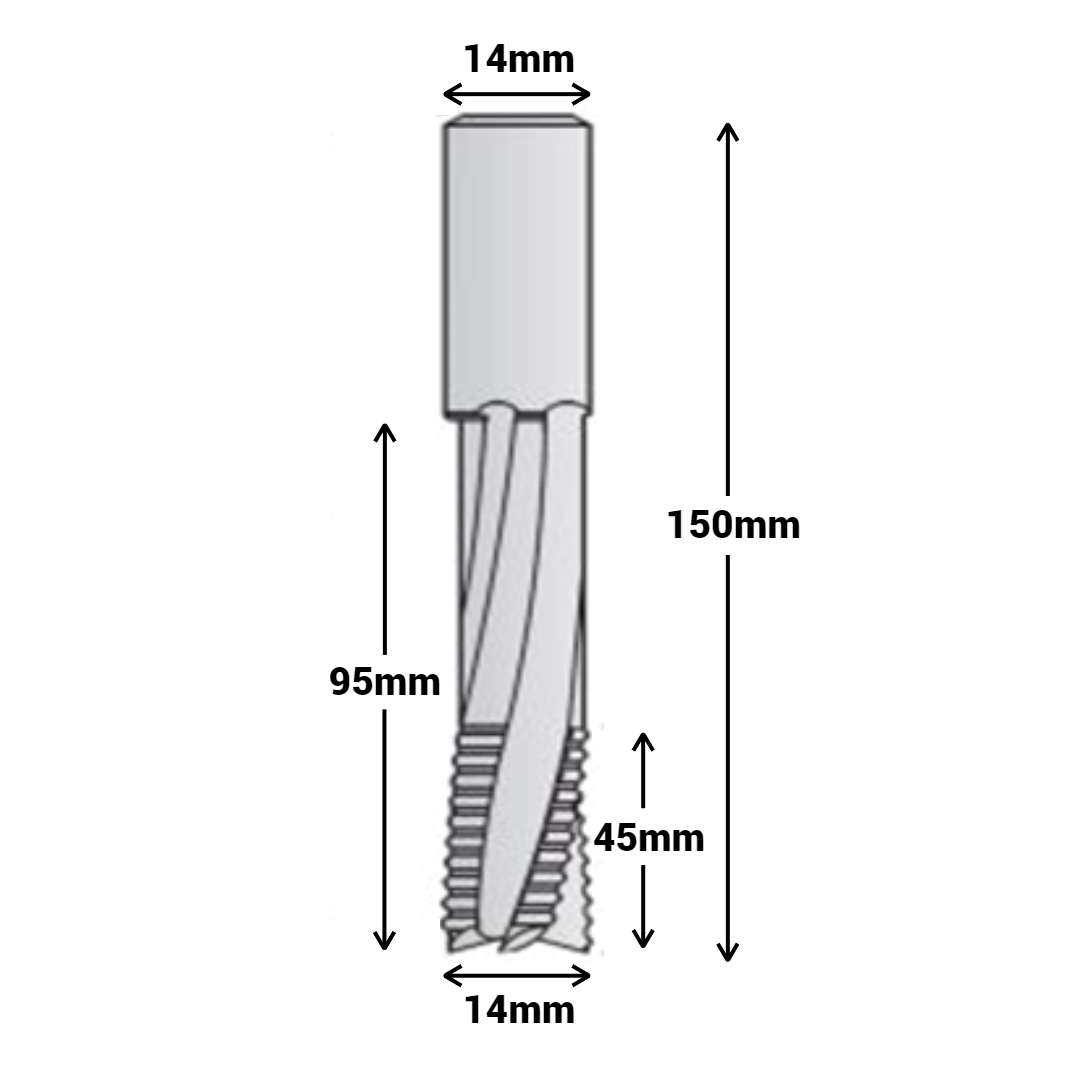

| 14mm | 45mm | 95mm | 150mm | 14mm |

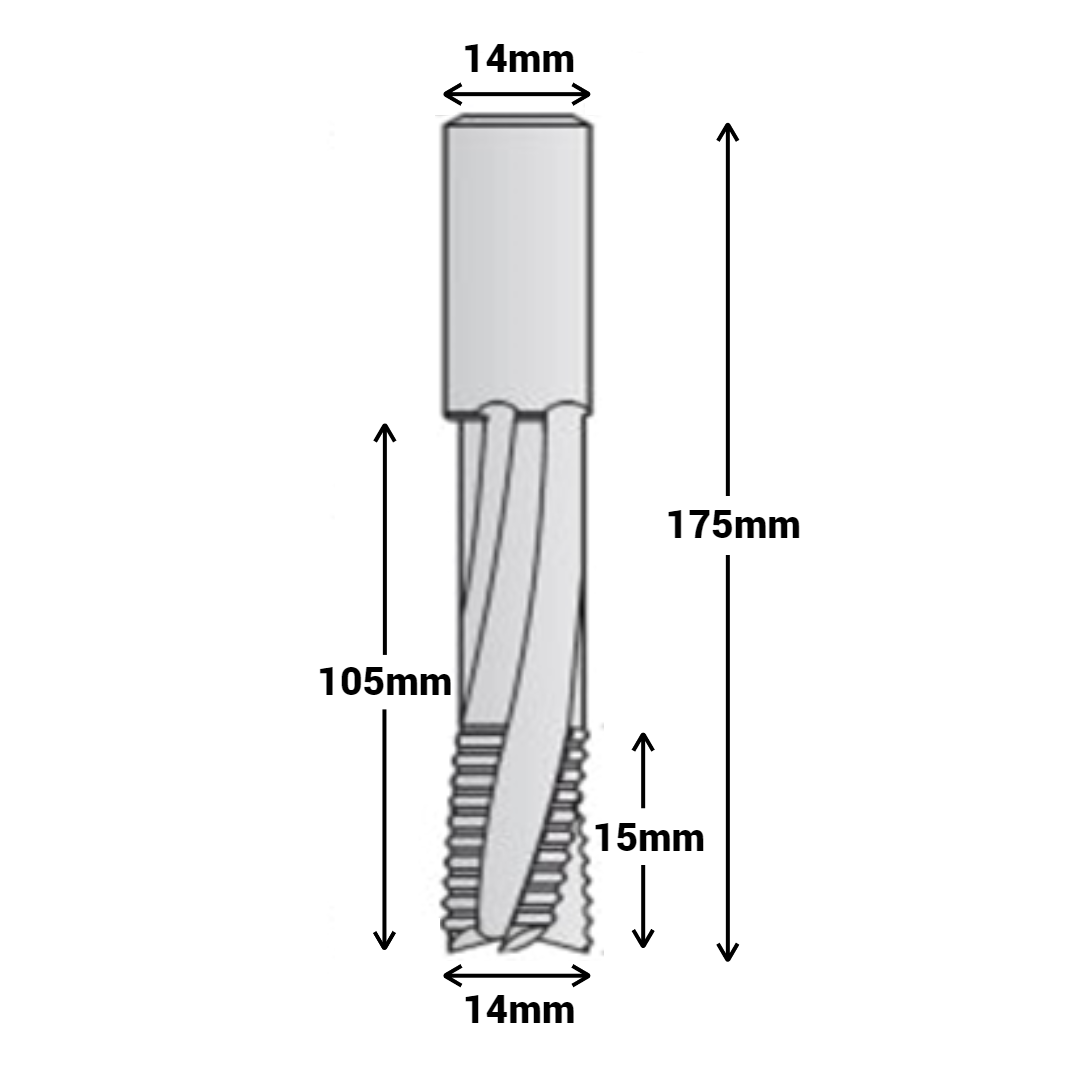

| 14mm | 15mm | 105mm | 175mm | 14mm |
| 16mm | 25mm | 95mm | 150mm | 16mm |
| 16mm | 45mm | 95mm | 150mm | 16mm |
| 16mm | 16mm | 105mm | 170mm | 16mm |

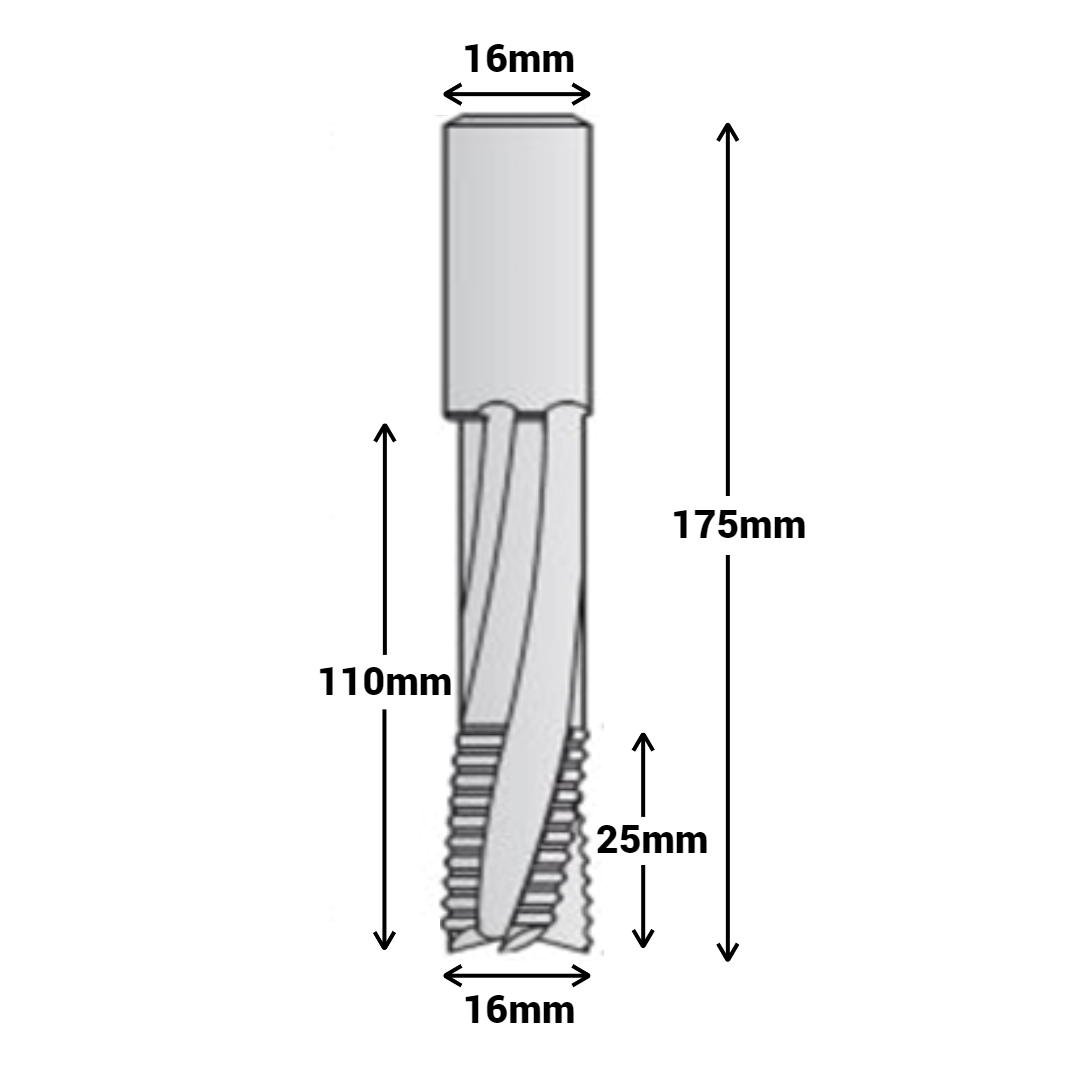

| 16mm | 25mm | 110mm | 175mm | 16mm |
| 18mm | 25mm | 110mm | 175mm | 18mm |
| 20mm | 16mm | 90mm | 150mm | 20mm |
| 20mm | 32mm | 95mm | 150mm | 20mm |
-
