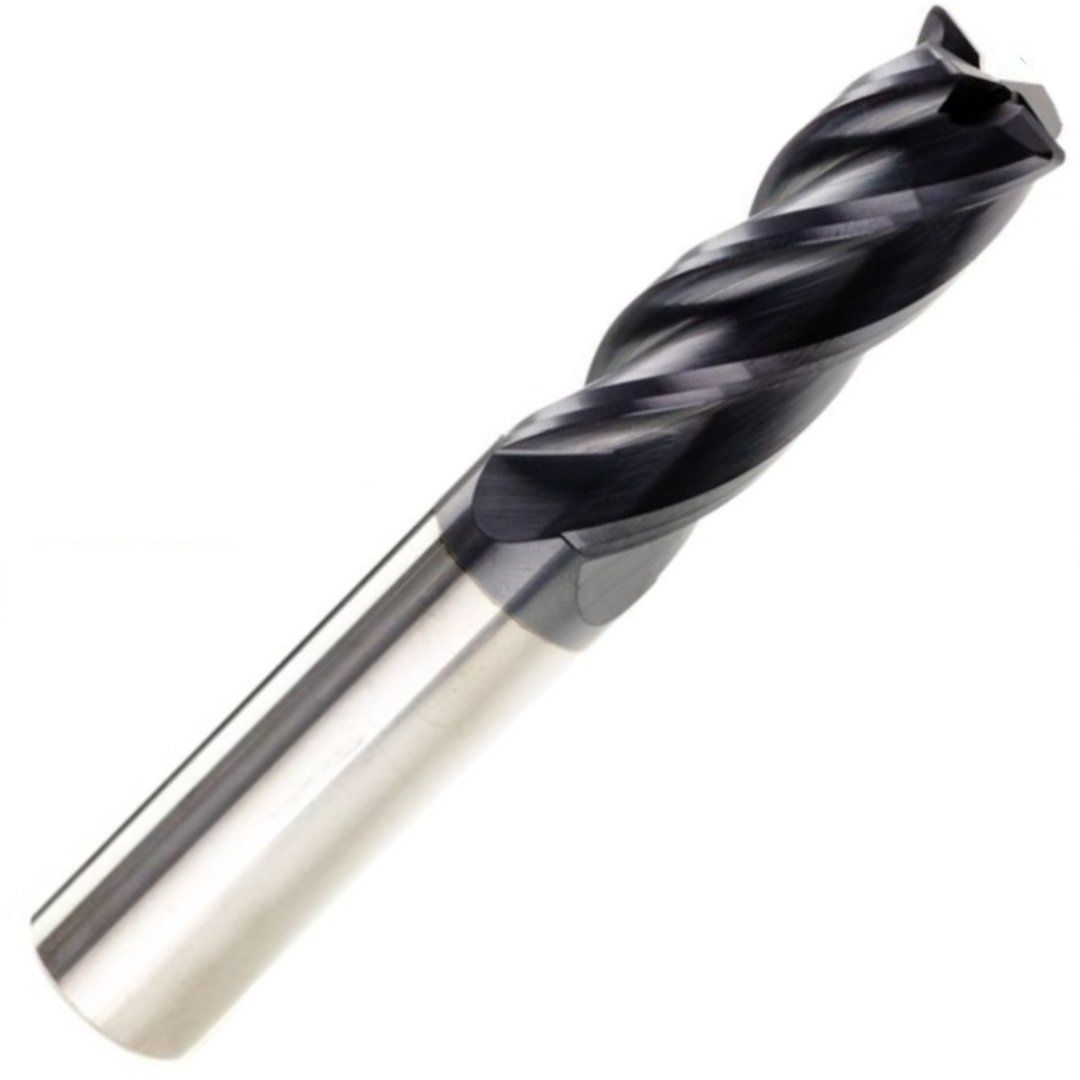

Solid Carbide 4 Flute Tialn Coated Corner Radius Endmills

Solid Carbide 4 Flute Tialn Coated Corner Radius Endmills

Shipping calculated at checkout.
Only 42 left!

4 Flute Corner Radius Solid Carbide End Mill

Micrograin Carbide

TiAlN Coated For General Use On Materials Upto 45HRC, Performs Well On Steel, Cast Iron, Carbon Steel, Alloy Steel, Non Ferrous, Copper & Mould Steel

Cutting Diameter Shank Diameter Flute Length Overall Length  Corner Radius
1mm 4mm 3mm 50mm 0.2mm Rad
2mm
 4mm 5mm 50mm 0.2mm Rad
2mm 4mm 5mm 50mm 0.5mm Rad
3mm
 3mm 8mm 50mm 0.2mm Rad
3mm 3mm 8mm 50mm 0.5mm Rad
4mm
 4mm 10mm 50mm 0.2mm Rad
4mm 4mm 10mm 50mm 0.5mm Rad
5mm 5mm 13mm 50mm 0.5mm Rad
5mm
 5mm 13mm 50mm 1.0mm Rad
6mm
 6mm 15mm 50mm 0.5mm Rad
6mm
 6mm 15mm 50mm 1.0mm Rad
8mm
 8mm 20mm 60mm 0.5mm Rad
8mm
 8mm 20mm 60mm 1.0mm Rad
10mm
 10mm 25mm 75mm
 0.5mm Rad
10mm
 10mm
 25mm 75mm 1.0mm Rad
12mm 12mm 30mm 75mm 0.5mm Rad
12mm 12mm 30mm 75mm 1.0mm Rad
16mm 16mm 45mm 100mm 0.5mm Rad
16mm 16mm 45mm 100mm 1.0mm Rad
