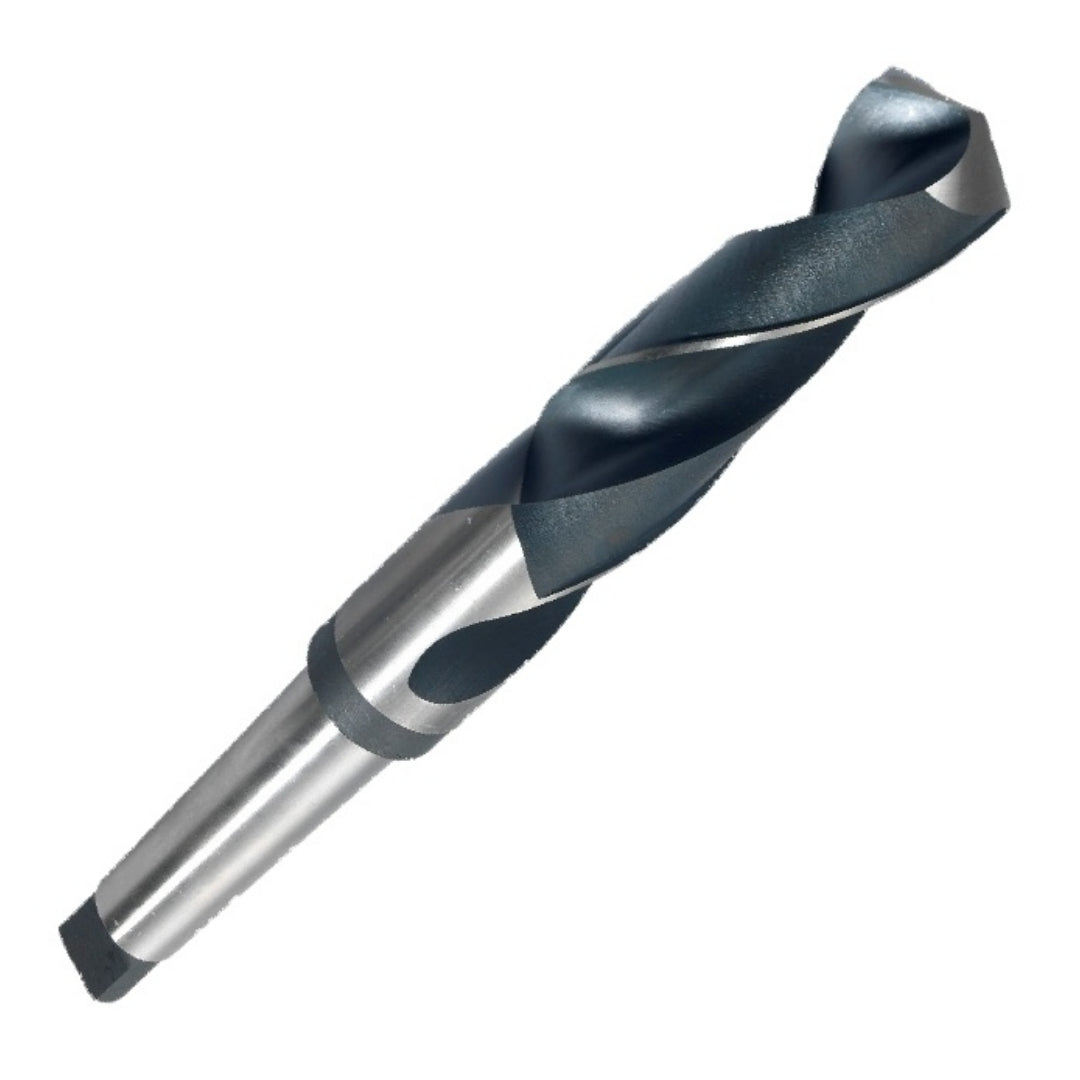

HSS Morse Taper Shank Drills Metric Sizes DIN345
Flute Type
Standard helix,right hand spiral,ground flutes
Point Angle
118°
Surface Treatment
Blue oxide
Application
Drills in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics.
Manufactured To
Din 345
Material
HSS
Standard helix,right hand spiral,ground flutes
Point Angle
118°
Surface Treatment
Blue oxide
Application
Drills in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics.
Manufactured To
Din 345
Material
HSS
Dimension -
| Cutting Diameter | Flute Length | Overall Length | Morse Taper |
| 5mm | 52mm | 133mm | 1 |
| 6mm1 | 57mm | 138mm | 1 |
| 7mm | 69mm | 150mm | 1 |
| 8mm | 75mm | 156mm | 1 |
| 8.5mm | 75mm | 156mm | 1 |
| 9mm | 81mm | 162mm | 1 |
| 10mm | 87mm | 168mm | 1 |
| 10.2mm | 87mm | 168mm | 1 |
| 10.5mm | 87mm | 168mm | 1 |
| 11mm | 94mm | 175mm | 1 |
| 11.5mm | 94mm | 175mm | 1 |
| 12mm | 101mm | 182mm | 1 |
| 12.5mm | 101mm | 182mm | 1 |
| 13mm | 101mm | 182mm | 1 |
| 13.5mm | 108mm | 189mm | 1 |
| 14mm | 108mm | 189mm | 1 |
| 14.5mm | 114mm | 212mm | 2 |
| 15mm | 114mm | 212mm | 2 |
| 15.5mm | 120mm | 218mm | 2 |
| 16mm | 120mm | 218mm | 2 |
| 16.5mm | 125mm | 223mm | 2 |
| 17mm | 125mm | 223mm | 2 |
| 17.5mm | 130mm | 228mm | 2 |
| 18mm | 130mm | 228mm | 2 |
| 18.5mm | 135mm | 233mm | 2 |
| 19mm | 135mm | 233mm | 2 |
| 19.5mm | 140mm | 238mm | 2 |
| 20mm | 140mm | 238mm | 2 |
| 20.5mm | 145mm | 243mm | 2 |
| 21mm | 145mm | 243mm | 2 |
| 21.5mm | 150mm | 248mm | 2 |
| 22mm | 150mm | 248mm | 2 |
| 22.5mm | 155mm | 253mm | 2 |
| 23mm | 155mm | 253mm | 2 |
| 23.5mm | 155mm | 276mm | 3 |
| 24mm | 160mm | 281mm | 3 |
| 24.5mm | 160mm | 281mm | 3 |
| 25mm | 160mm | 281mm | 3 |
| 25.5mm | 165mm | 286mm | 3 |
| 26mm | 165mm | 286mm | 3 |
| 26.5mm | 165mm | 286mm | 3 |
| 27mm | 170mm | 291mm | 3 |
| 27.5mm | 170mm | 291mm | 3 |
| 28mm | 170mm | 291mm | 3 |
| 28.5mm | 175mm | 296mm | 3 |
| 29mm | 175mm | 296mm | 3 |
| 29.5mm | 175mm | 296mm | 3 |
| 30mm | 175mm | 296mm | 3 |
| 30.5mm | 180mm | 301mm | 3 |
| 31mm | 180mm | 301mm | 3 |
| 31.5mm | 180mm | 301mm | 3 |
| 32mm | 185mm | 334mm | 4 |
| 33mm | 185mm | 334mm | 4 |
| 34mm | 190mm | 339mm | 4 |
| 35mm | 190mm | 339mm | 4 |
| 36mm | 195mm | 344mm | 4 |
| 37mm | 195mm | 344mm | 4 |
| 38mm | 200mm | 349mm | 4 |
| 39mm | 200mm | 349mm | 4 |
| 40mm | 200mm | 349mm | 4 |
| 41mm | 205mm | 354mm | 4 |
| 42mm | 205mm | 354mm | 4 |
| 43mm | 210mm | 359mm | 4 |
| 44mm | 210mm | 359mm | 4 |
| 45mm | 210mm | 359mm | 4 |
| 46mm | 215mm | 364mm | 4 |
| 48mm | 220mm | 369mm | 4 |
| 50mm | 220mm | 369mm | 4 |
