Solid Carbide Point Roundover Router Bits / Ovolo Cutters
Solid carbide point roundover bits are designed for smooth, precise edge forming on a wide range of materials including hardwood, softwood, MDF, and composite panels. The solid carbide construction ensures long tool life, exceptional strength, and consistent performance even under high-speed routing conditions.

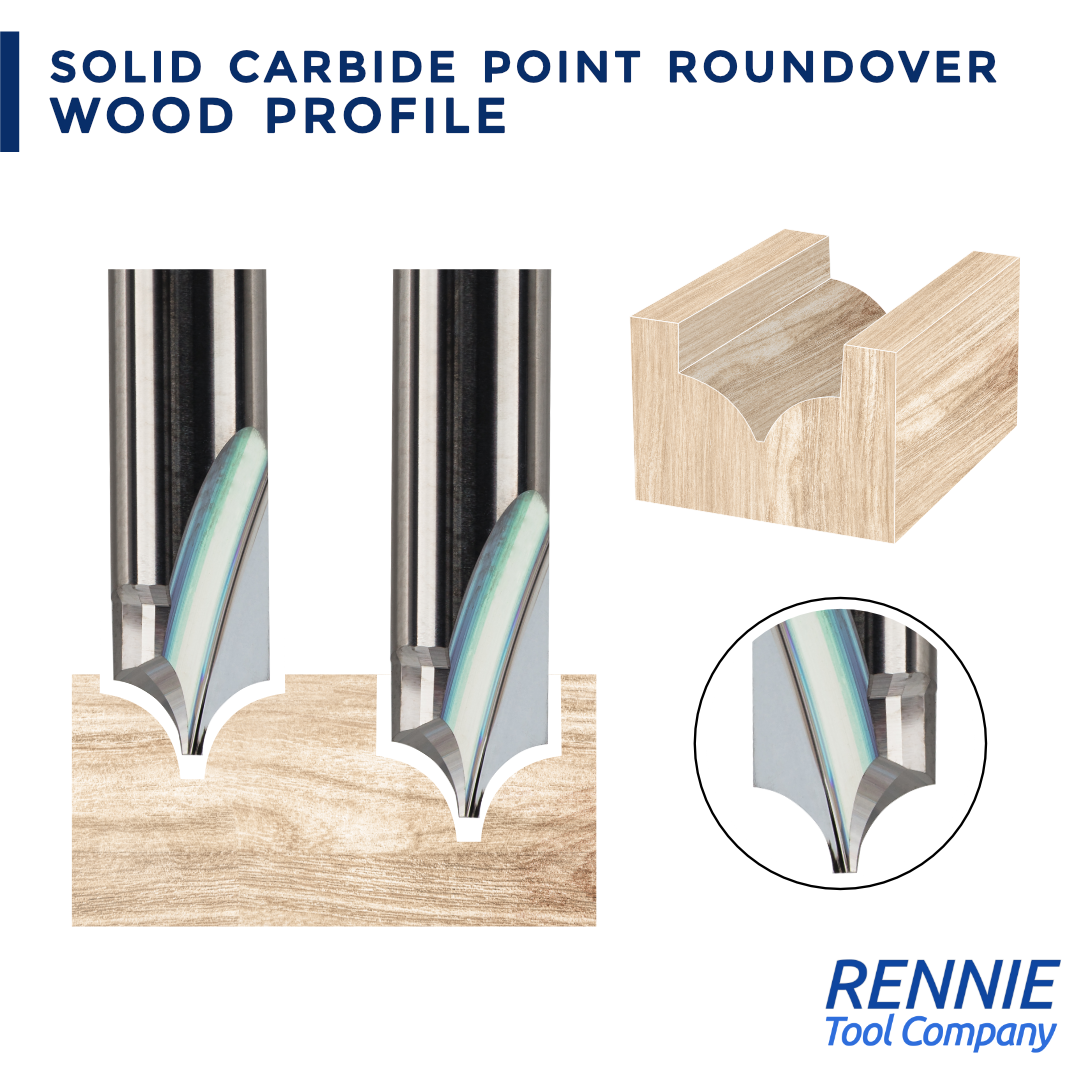

Each bit features a point roundover profile that produces a clean, refined edge with a subtle ridge, giving furniture and cabinetry a high-quality, finished look. These bits are ideal for both handheld and CNC router applications where precision and durability are critical.
The precision-ground cutting edges deliver a smooth surface finish and minimal tear-out, reducing sanding time and ensuring professional results. Their solid carbide body provides superior heat resistance and wear protection compared to carbide-tipped or HSS bits, making them the perfect choice for demanding workshop or production environments.
Available in multiple diameters and shank sizes to suit a variety of projects, solid carbide point roundover bits are a reliable solution for craftsmen seeking consistent, professional-quality edge profiles.
Full Dimensions -
Name | Point Dia | Cutting Dia | Radius | Flute Length | Shank Dia | Overall Length |

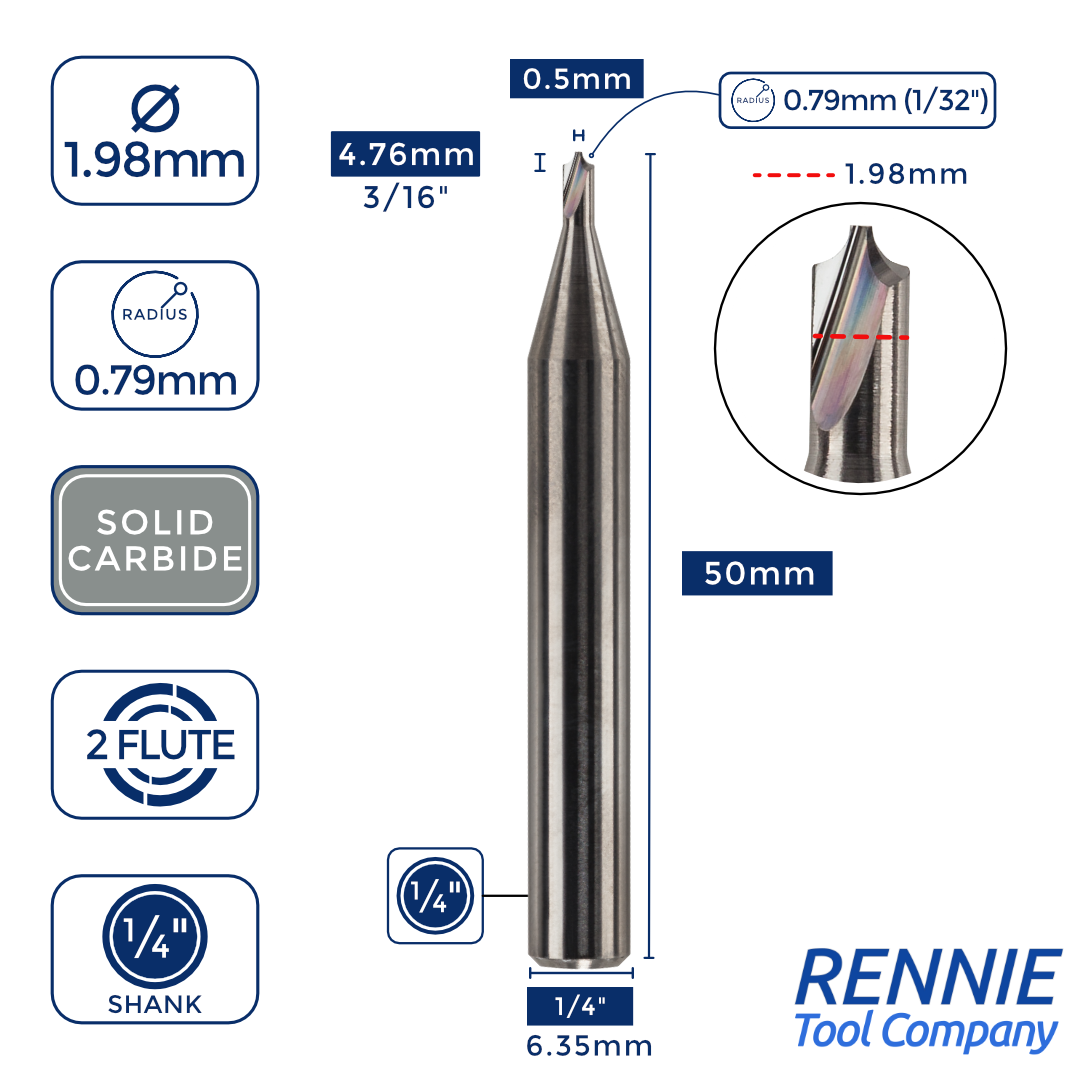

1/32" Rad x 0.5mm x 1.98mm Cut x 1/4" Shank | 0.5mm | 5/64" (1.98mm) | 1/32" (0.79mm) | 3/16" (4.76mm) | 1/4'' (6.35mm) | 50mm |

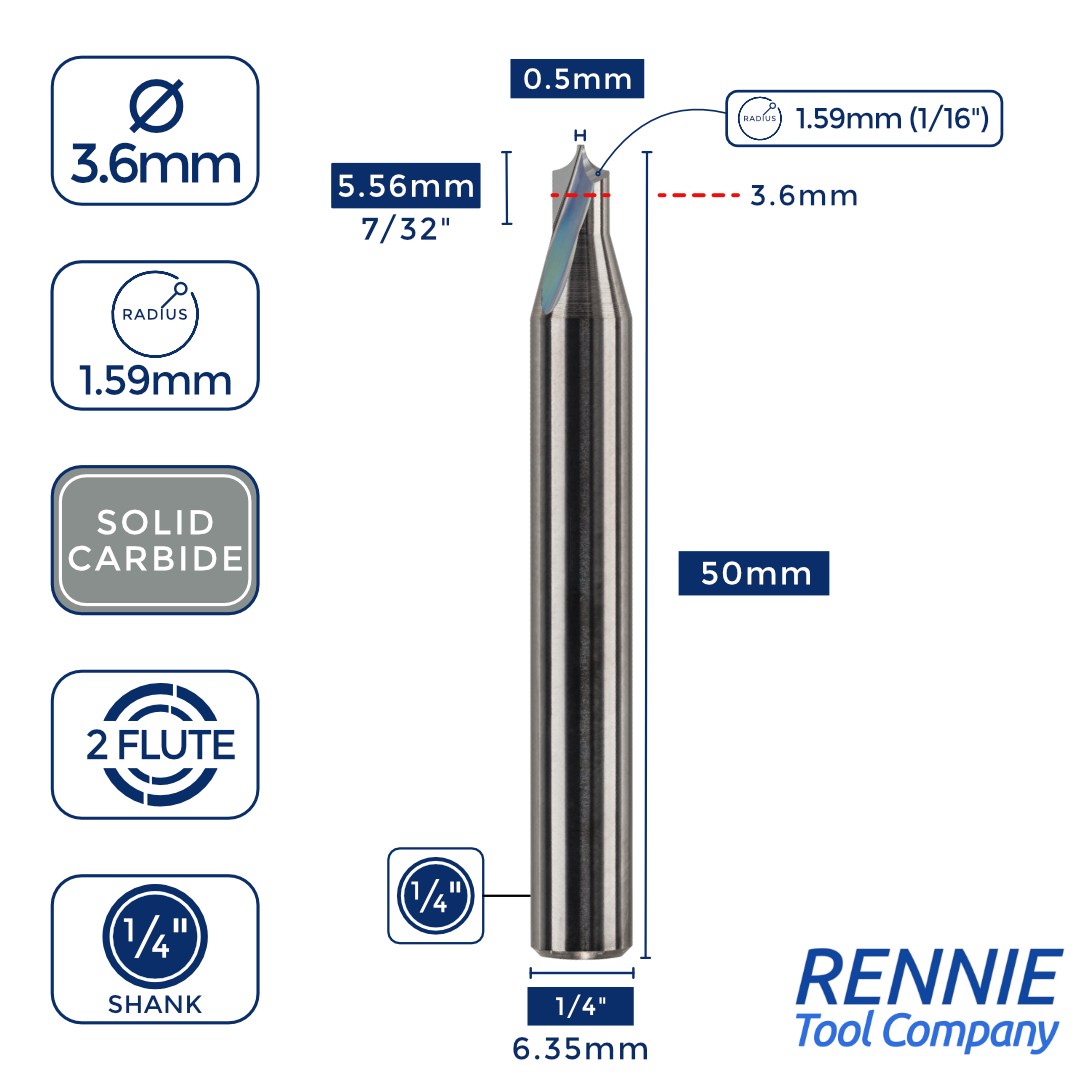

1/16" Rad x 0.5mm x 3.6mm Cut x 1/4" Shank | 0.5mm | 9/64" (3.6mm) | 1/16" (1.59mm) | 9/64" (3.57mm) | 1/4'' (6.35mm) | 50mm |
3/32" Rad x 0.5mm x 5.2mm Cut x 1/4" Shank | 0.5mm | 13/64" (5.2mm) | 3/32" (2.38mm) | 13/64" (5.16mm) | 1/4'' (6.35mm) | 50mm |

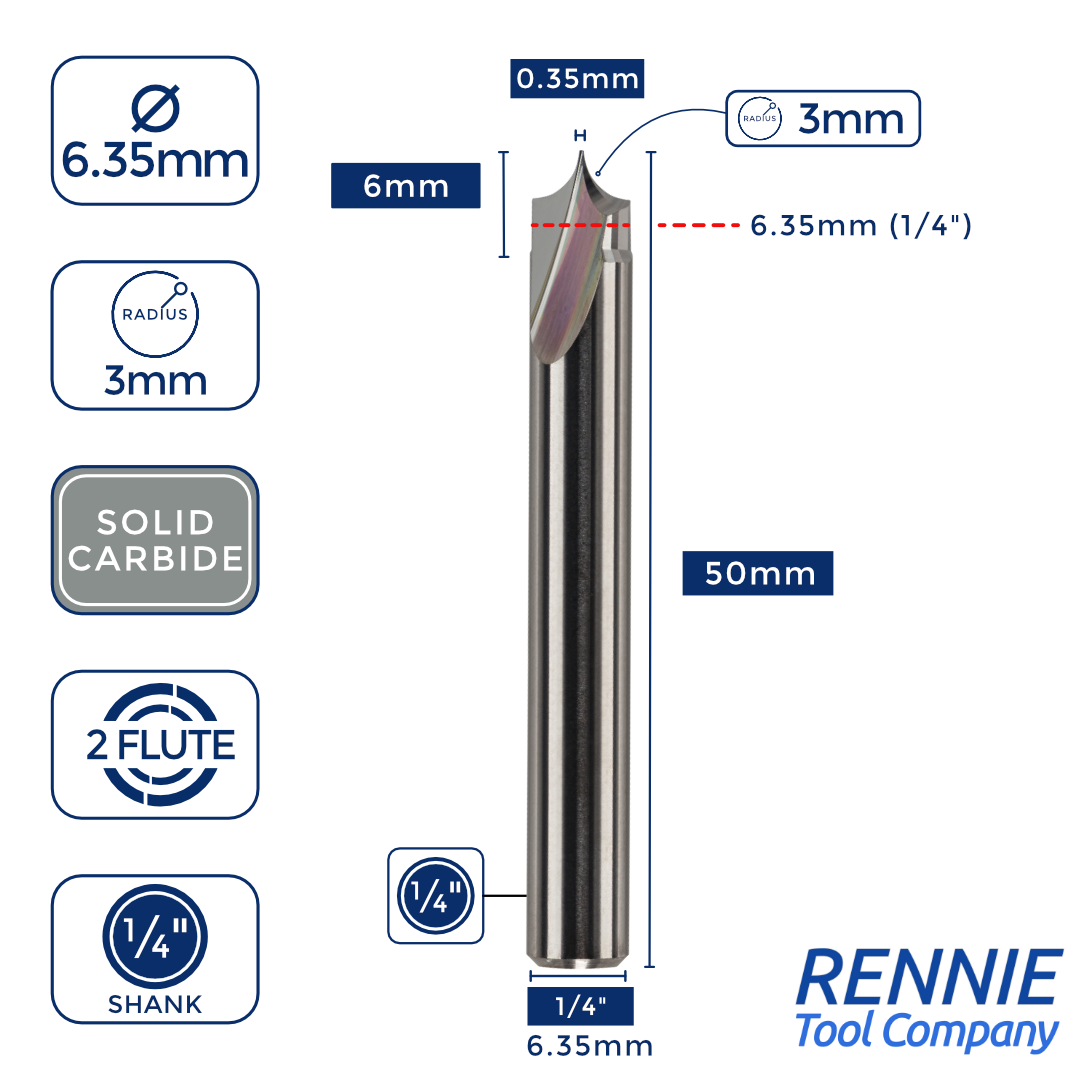

3mm Rad x 0.35mm x 1/4" Cut x 1/4" Shank | 0.35mm | 1/4" (6.35mm) | 3mm | 6mm | 1/4'' (6.35mm) | 50mm |

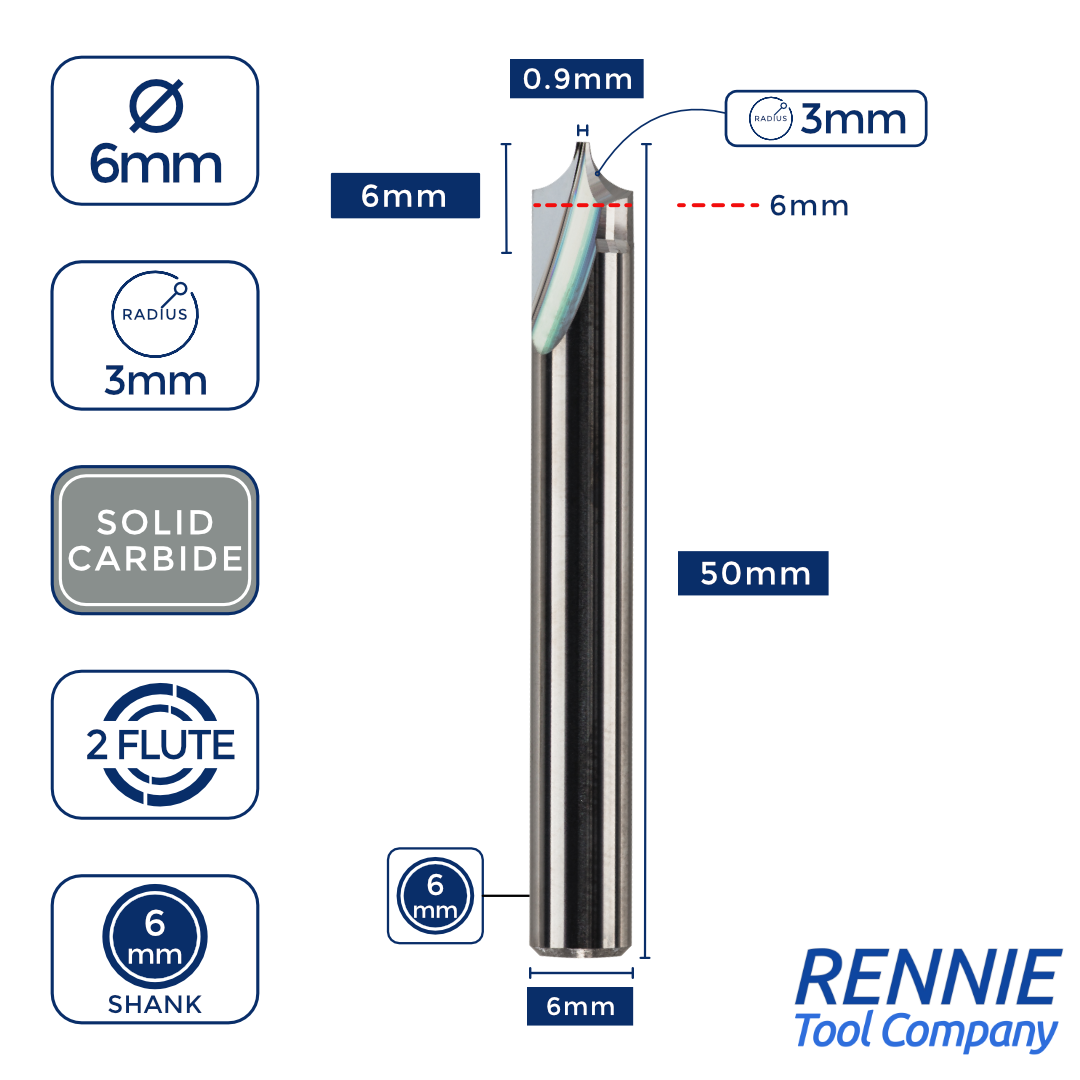

3mm Rad x 0.9mm x 6mm Cut x 1/4" Shank | 0.9mm | 6mm | 3mm | 6mm | 1/4'' (6.35mm) | 50mm |

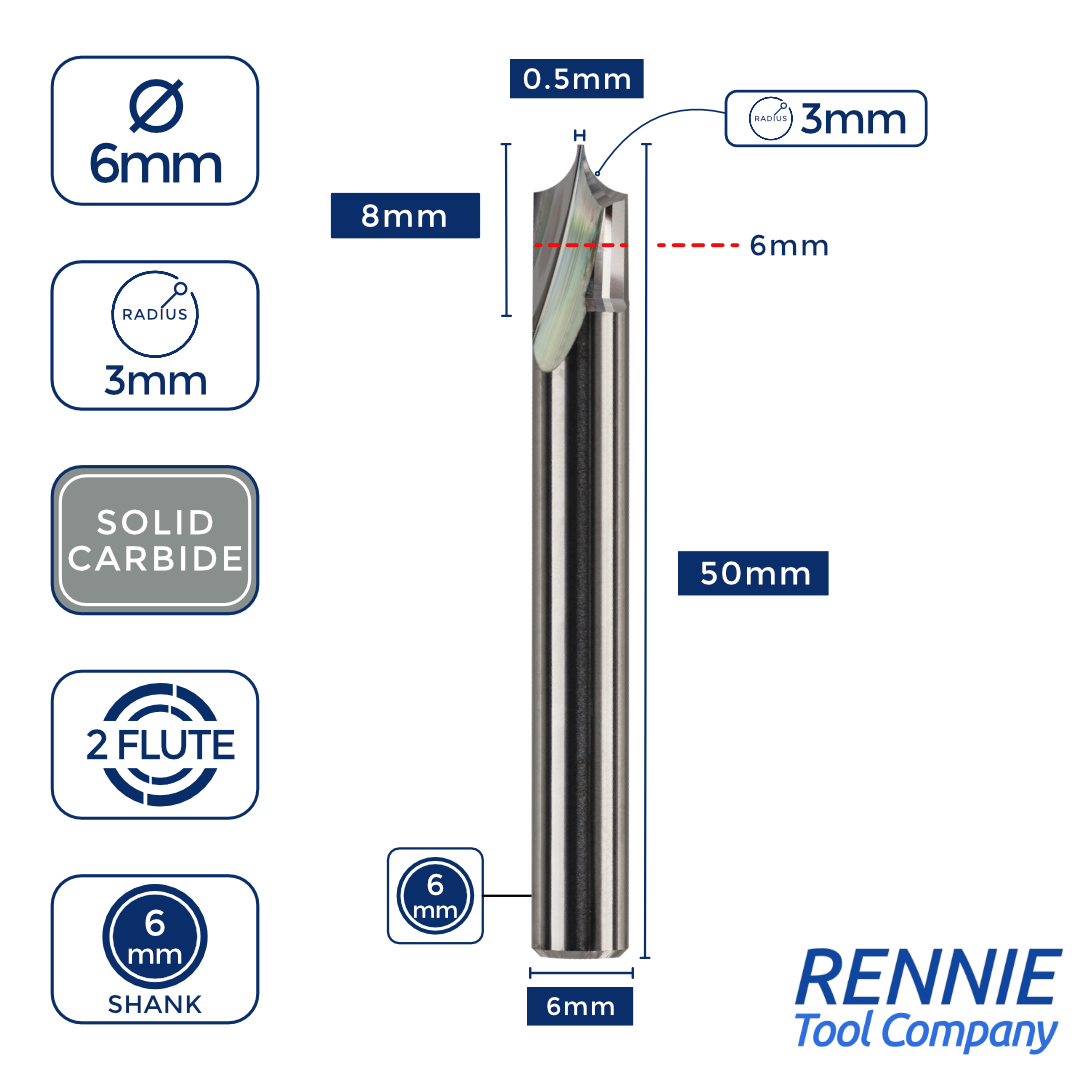

3mm Rad x 0.5mm x 6mm Cut x 6mm Shank | 0.5mm | 6mm | 3mm | 8mm | 6mm | 50mm |
1/8" Rad x 0.5mm x 1/4" Cut x 1/4" Shank | 0.5mm | 1/4" (6.35mm) | 1/8" (3.175mm) | 5/16" (7.94mm) | 1/4'' (6.35mm) | 50mm |
