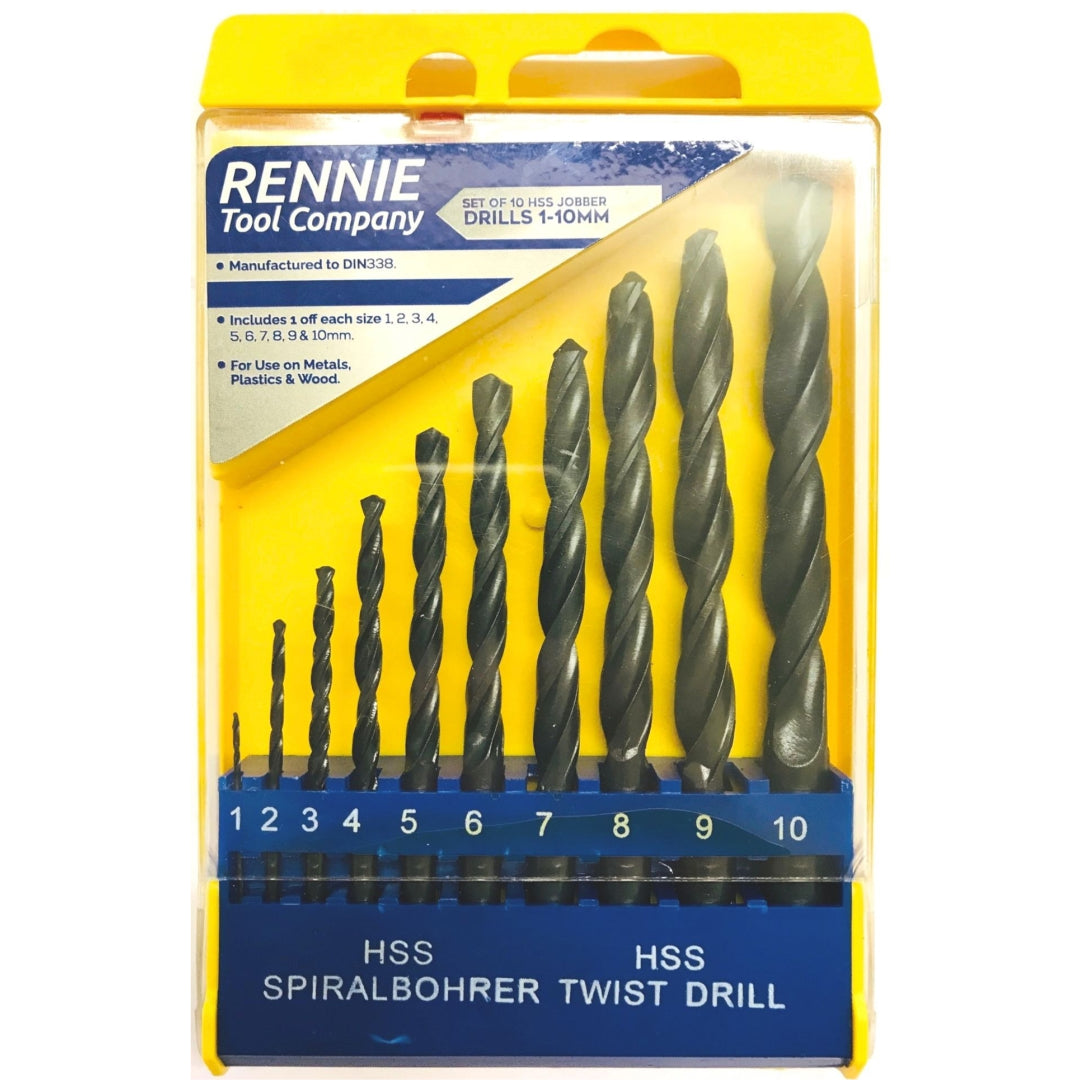

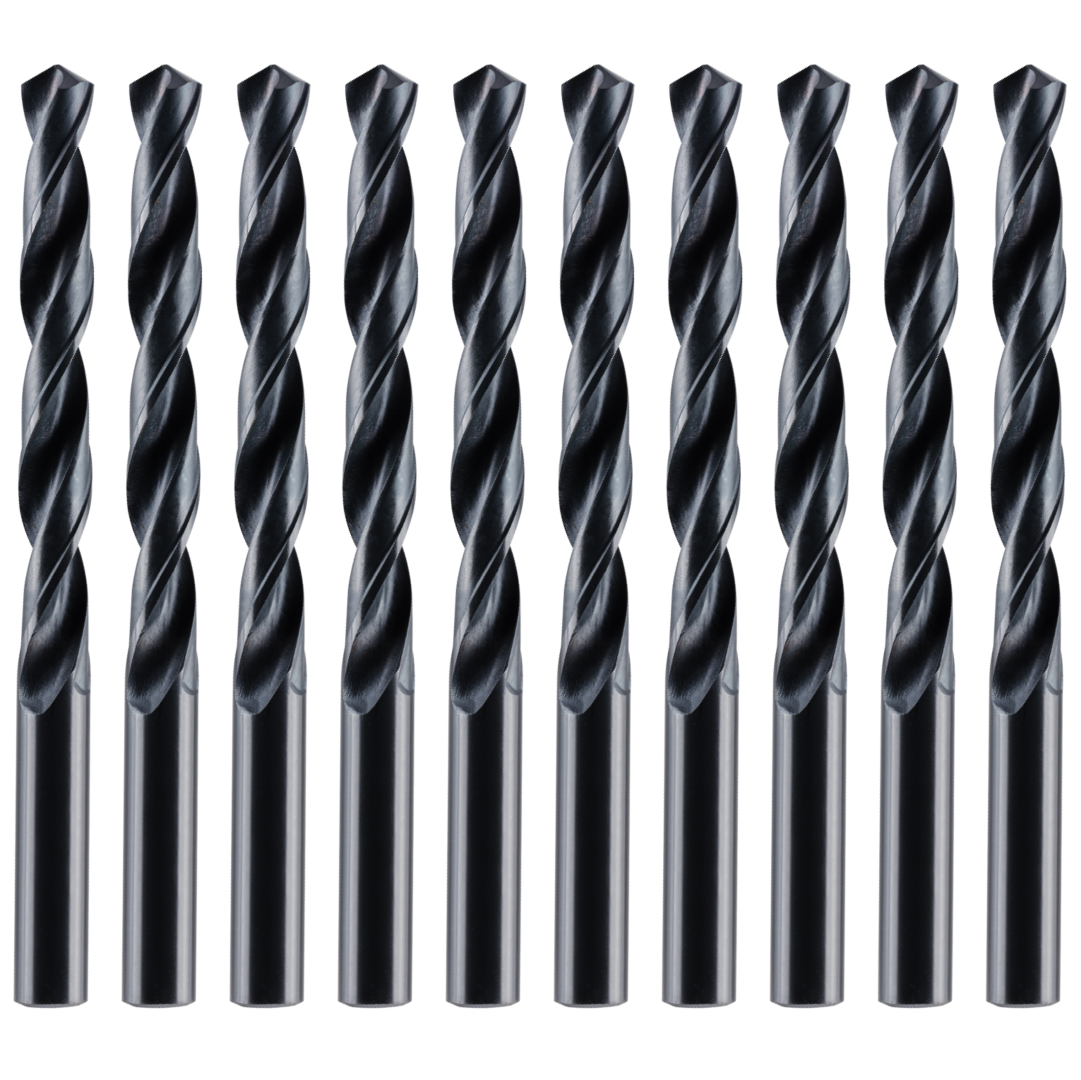

Box Of 10 x HSS ROLL FORGED JOBBER DRILLS
Premium Quality HSS Roll Forged Jobber Drills
- Ideal Drill Bits For Drilling Aluminium, Non-ferrous Metals, Plastic & Wood

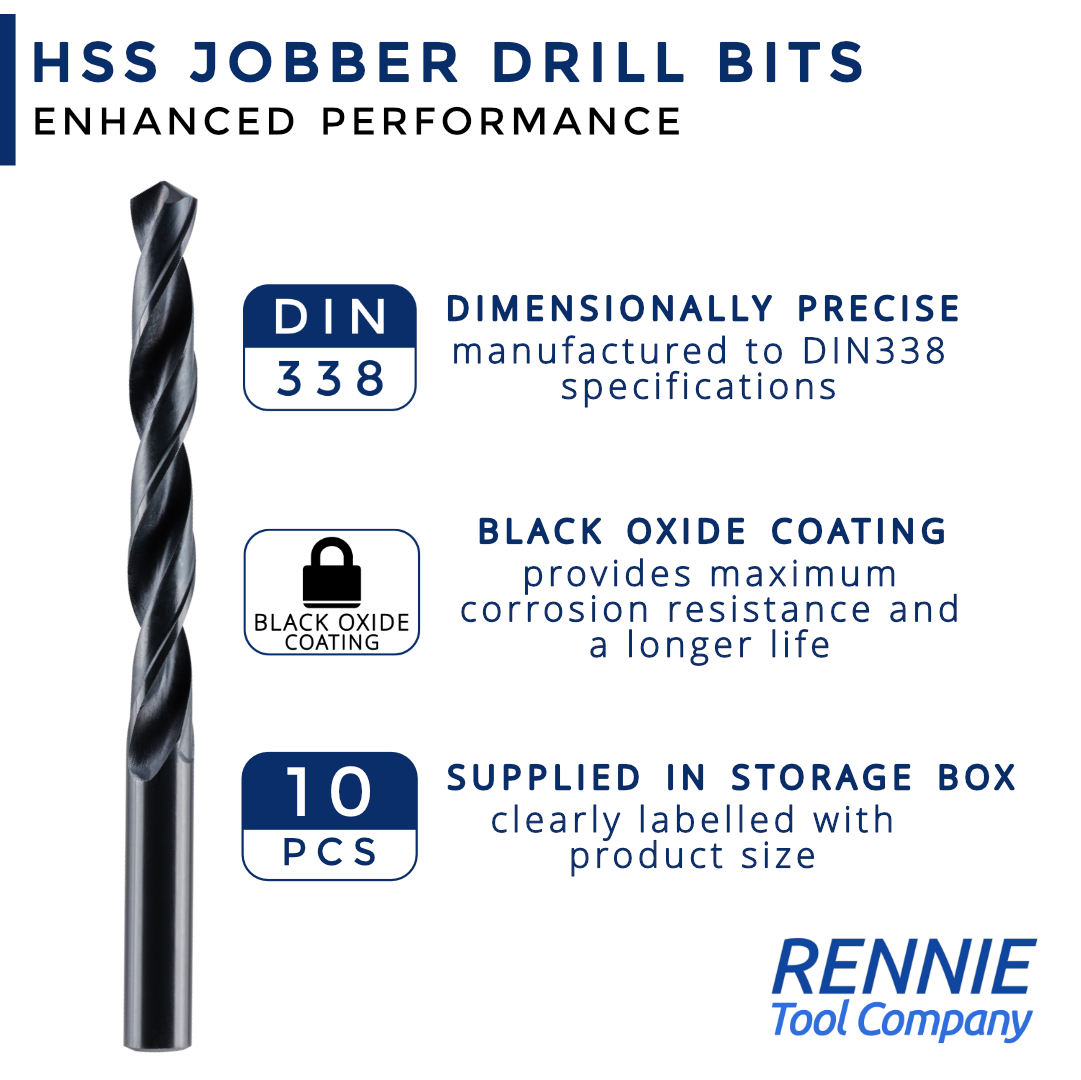

- All Our Drills Are Manufactured to DIN338
- The most common and best value drill bit used today

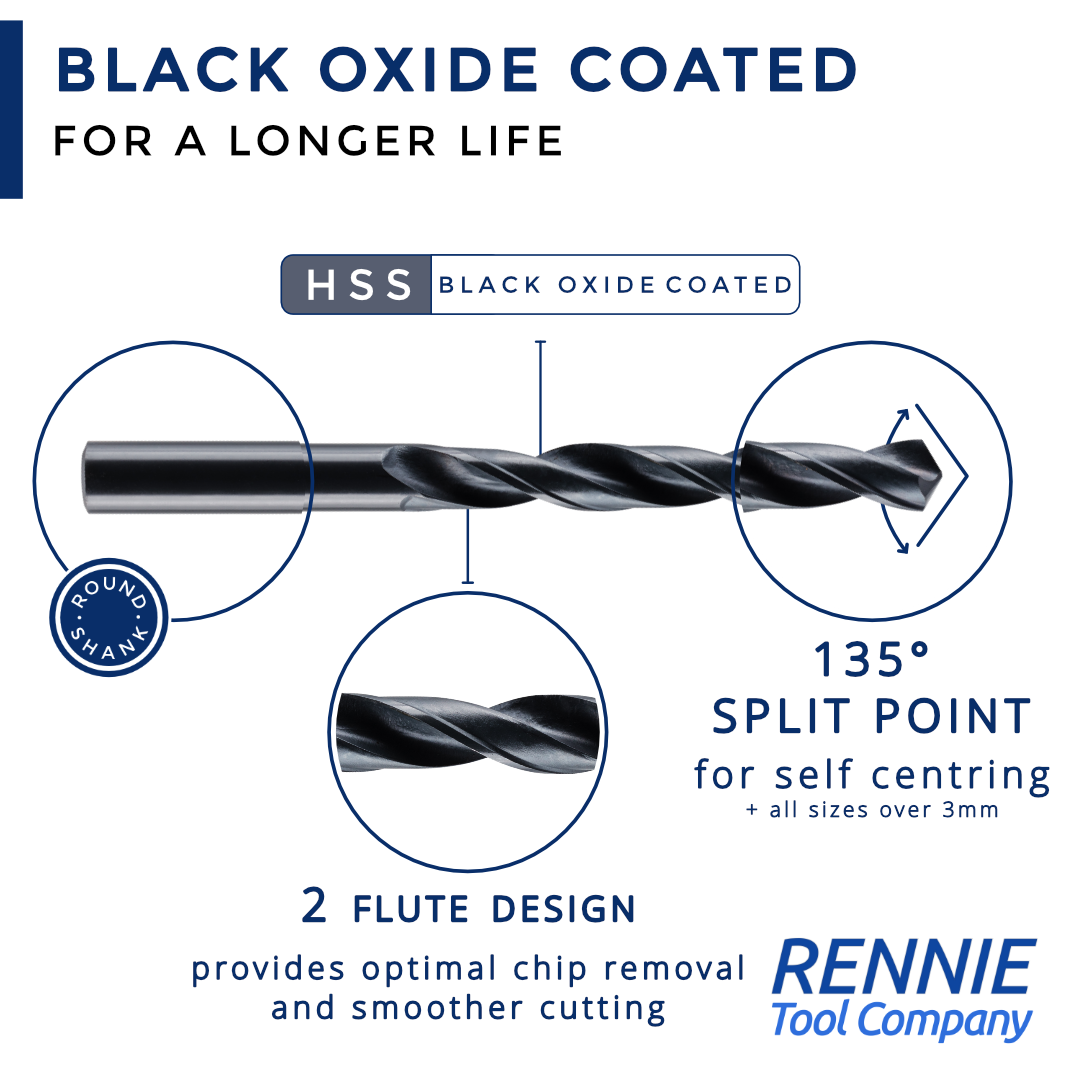

- Black oxide layer is a result of steam tempering. Helps dissipate heat, chip flow and provides a coolant property on the drill surface.
- Sizes available from 1.0mm - 13.0mm
Dimensions
Drill Diameter | Flute Length | Overall Length |

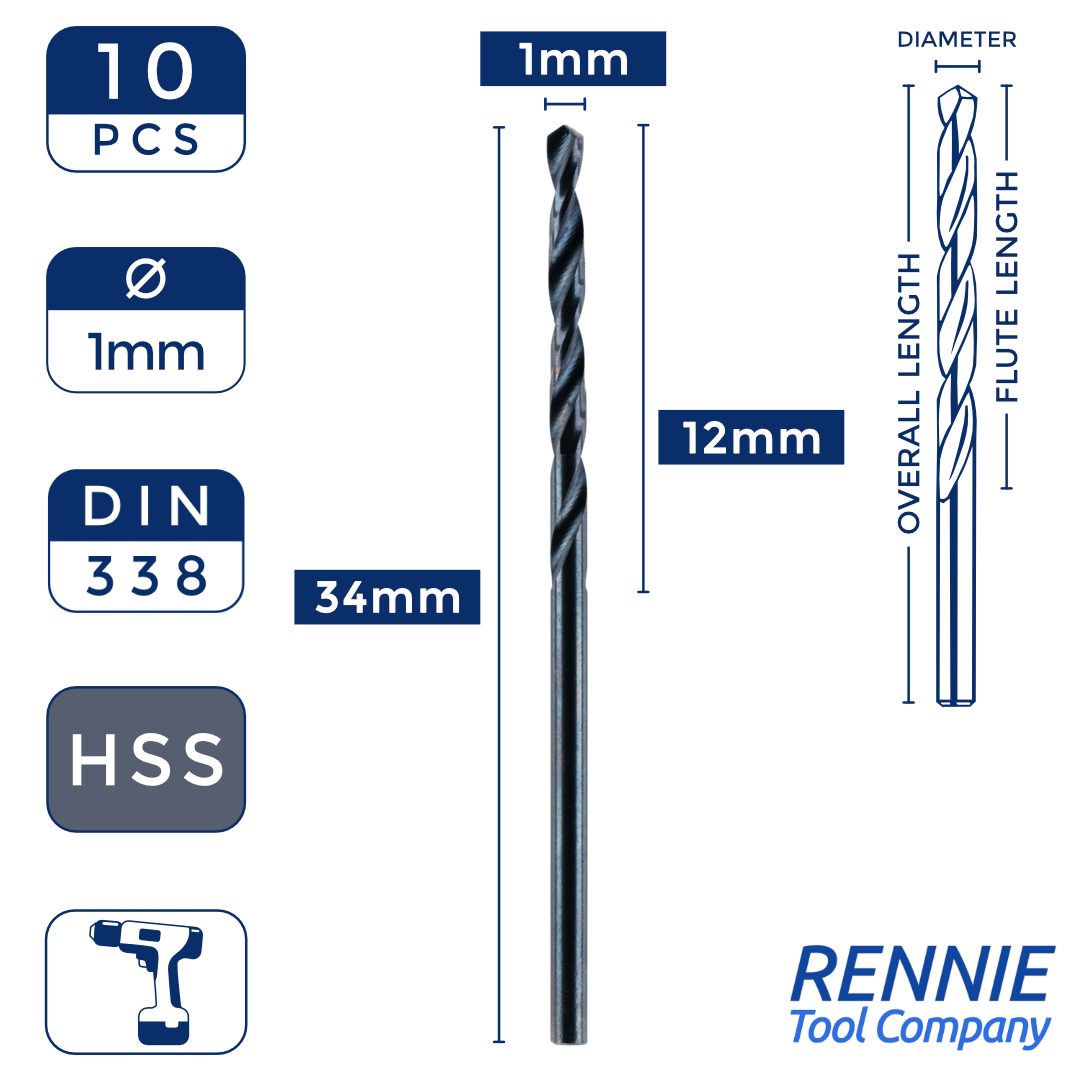

1mm | 12mm | 34mm |

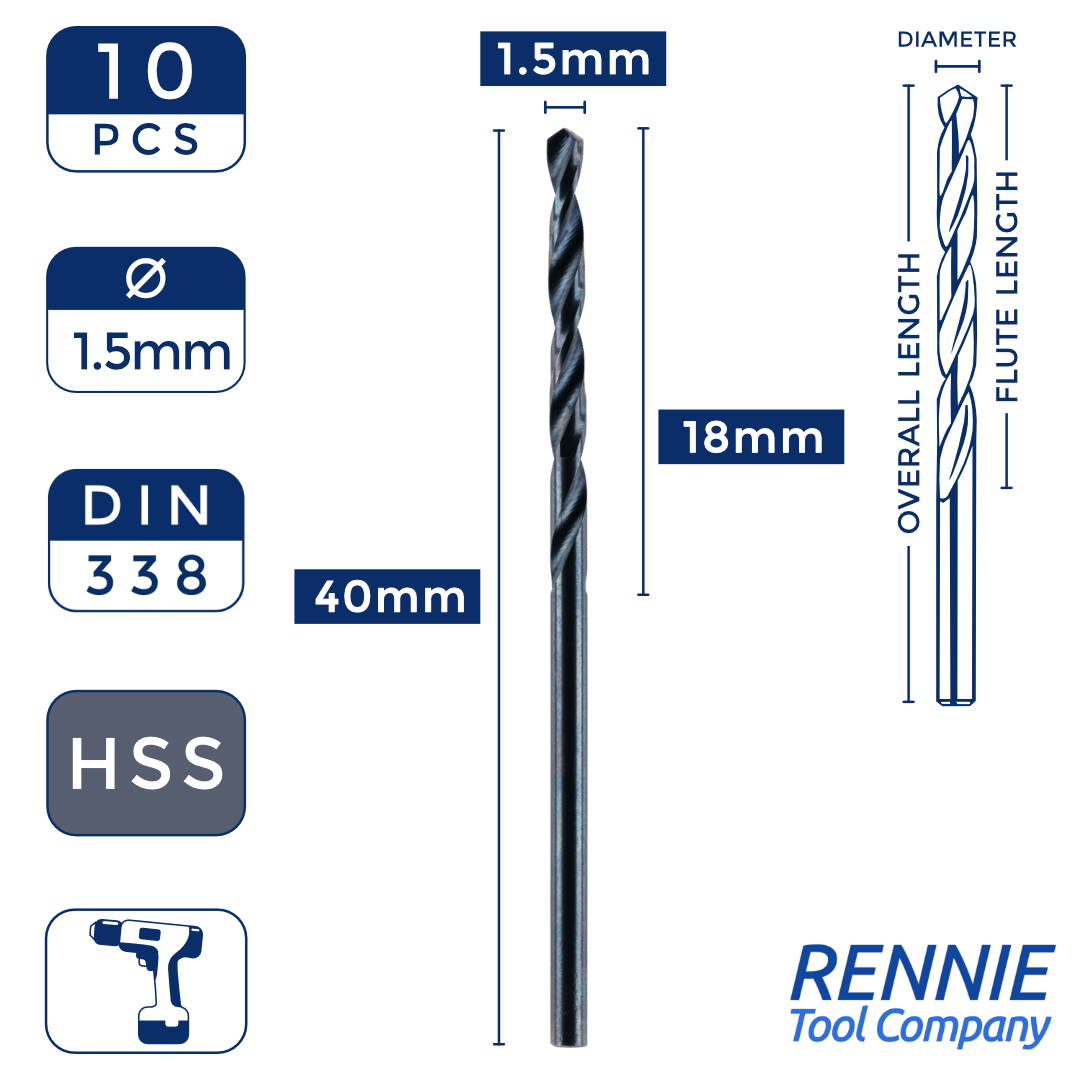

1.5mm | 18mm | 40mm |
1.6mm | 20mm | 43mm |
1.8mm | 22mm | 46mm |
2mm | 24mm | 49mm |

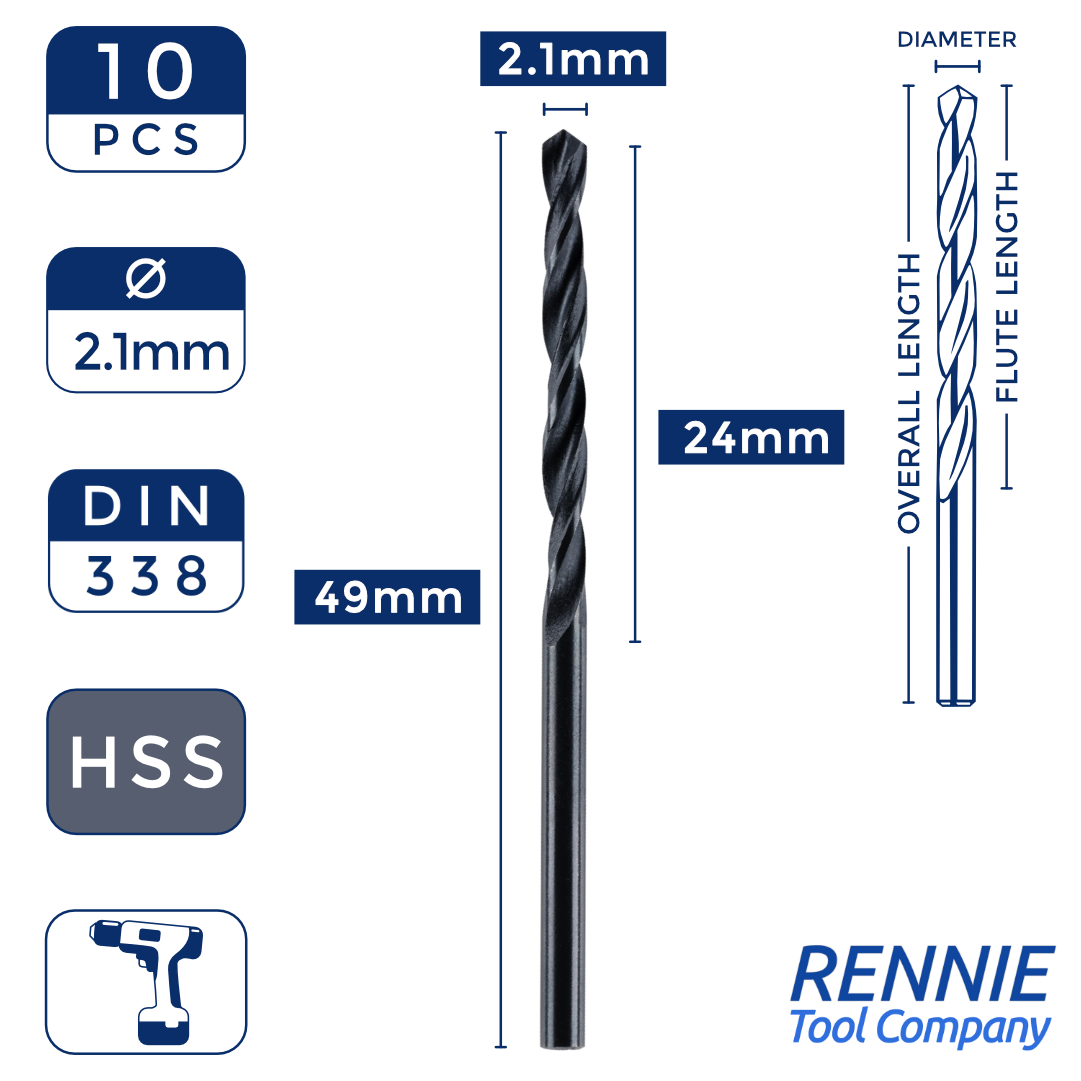

2.1mm | 24mm | 49mm |
2.4mm | 30mm | 57mm |
2.5mm | 30mm | 57mm |

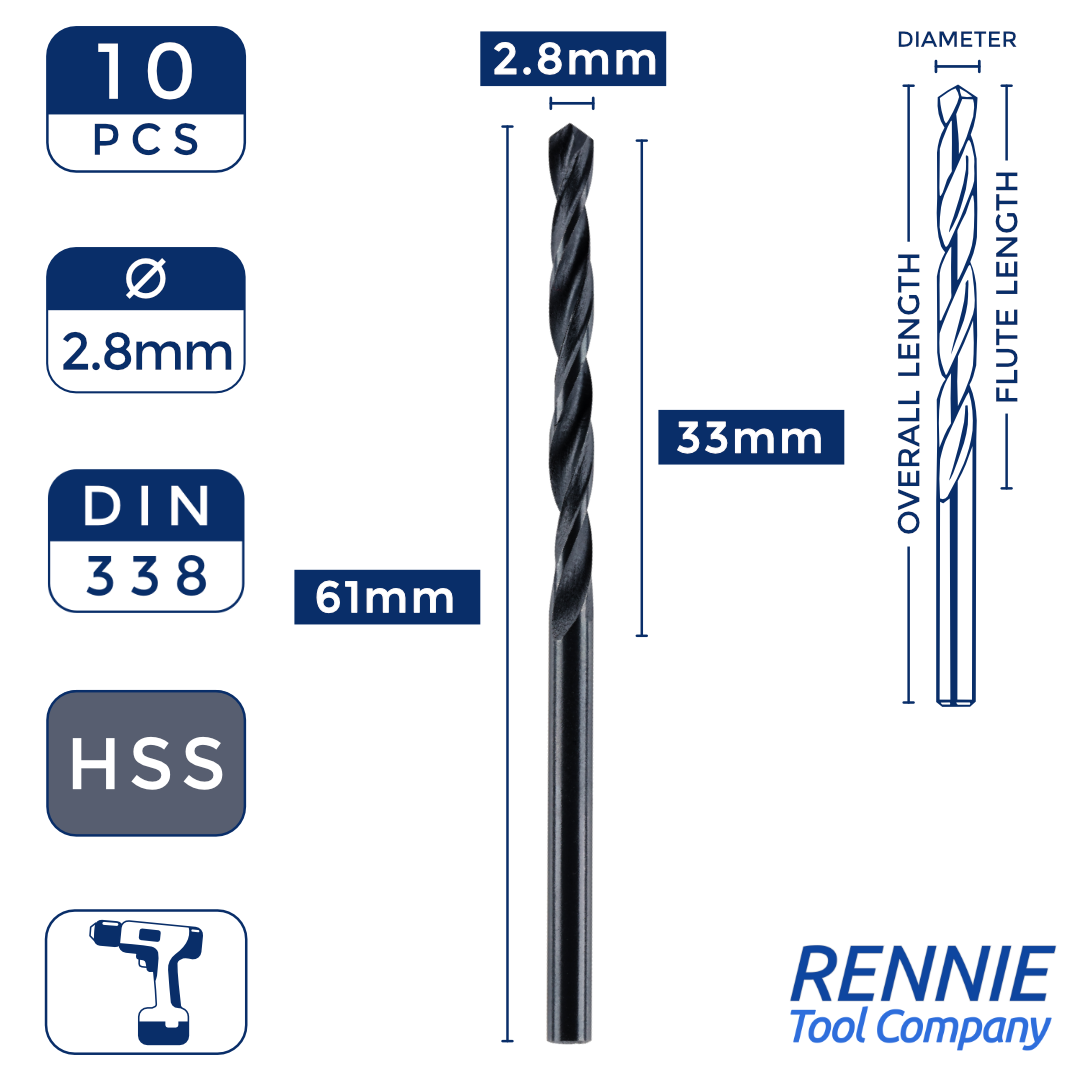

2.8mm | 33mm | 61mm |

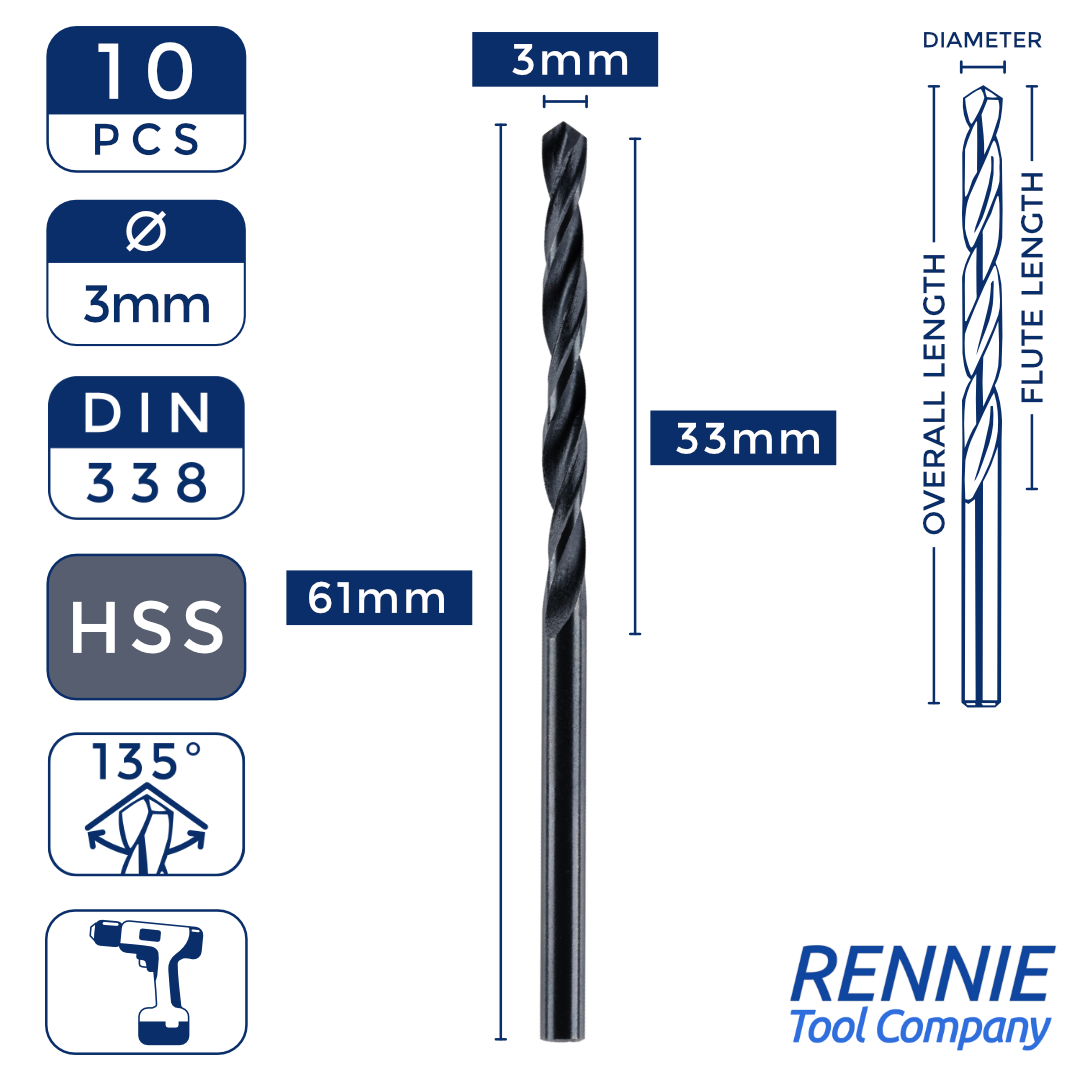

3mm | 33mm | 61mm |

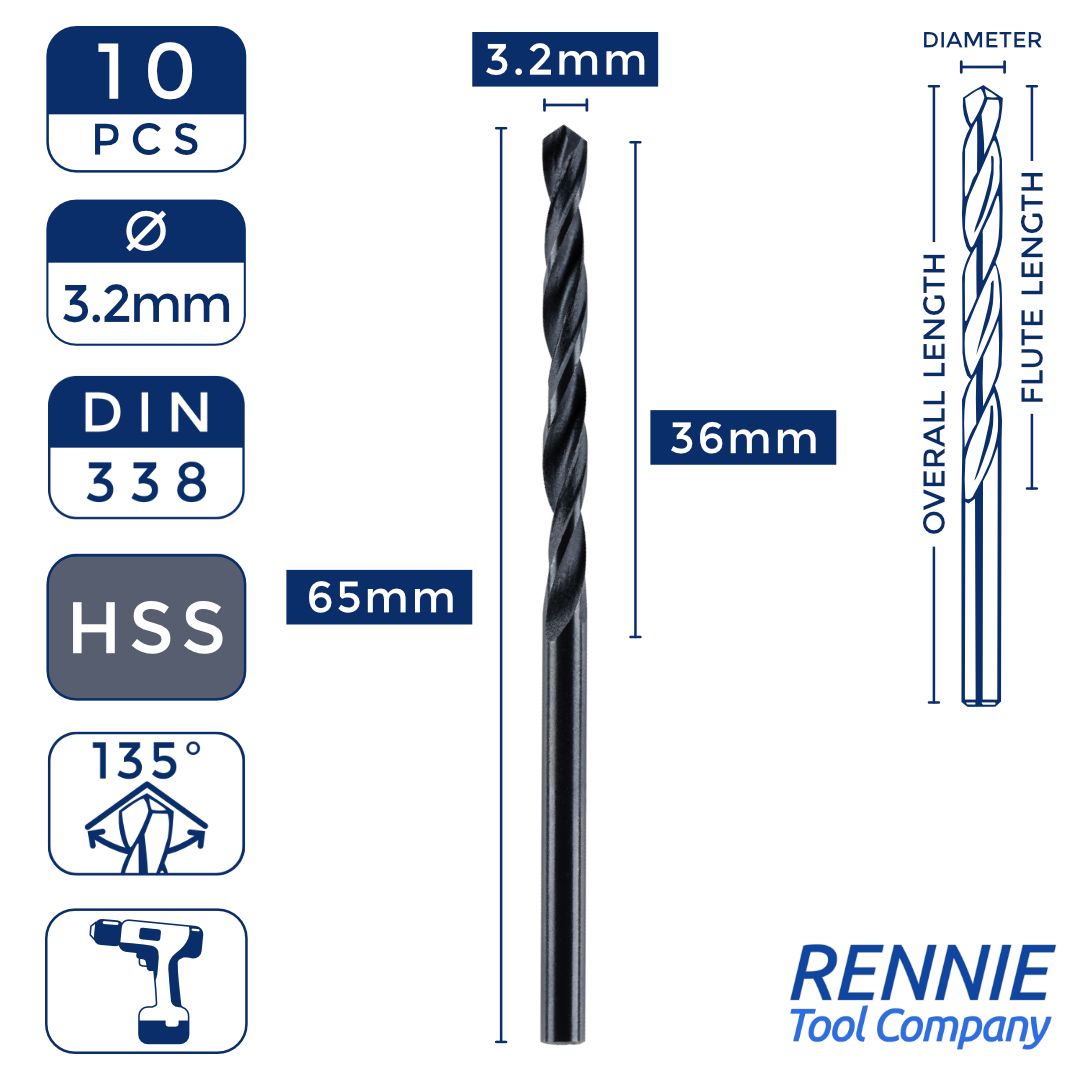

3.2mm | 36mm | 65mm |
3.3mm | 36mm | 65mm |

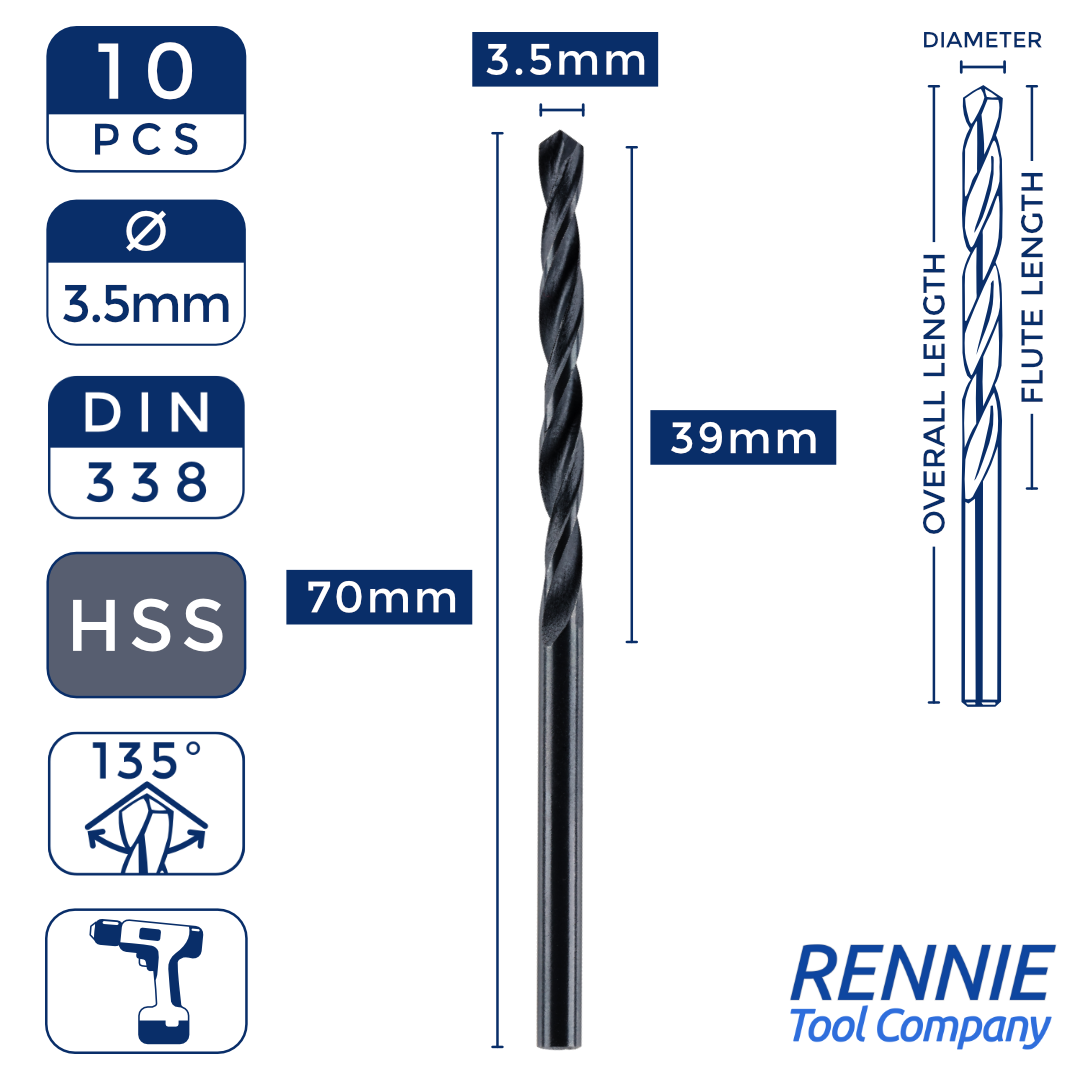

3.5mm | 39mm | 70mm |

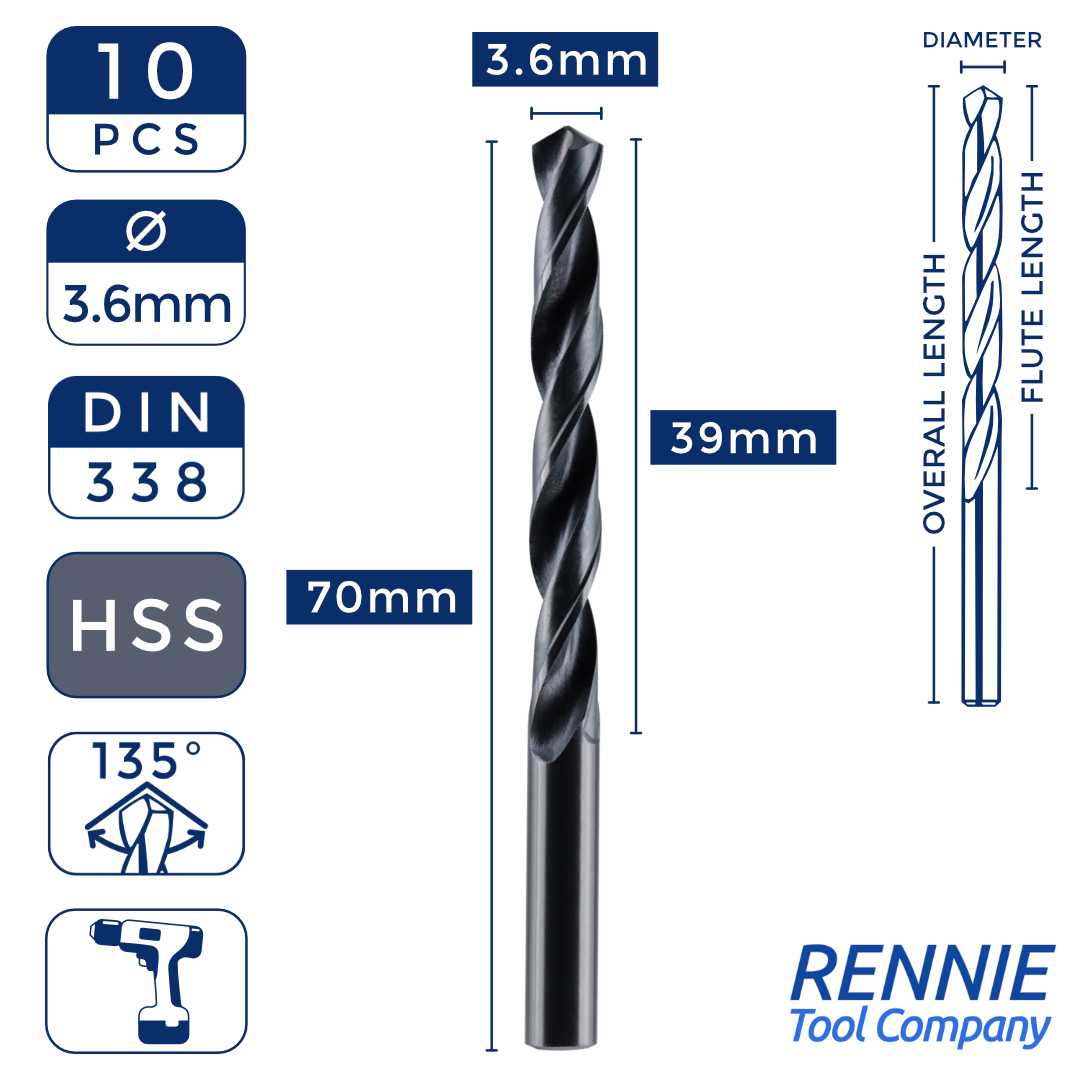

3.6mm | 39mm | 70mm |
4mm | 43mm | 75mm |
4.2mm | 43mm | 75mm |
4.4mm | 47mm | 80mm |
4.5mm | 47mm | 80mm |
4.8mm | 52mm | 86mm |
4.9mm | 52mm | 86mm |
5mm | 52mm | 86mm |
5.2mm | 52mm | 86mm |
5.5mm | 57mm | 93mm |
5.6mm | 57mm | 93mm |
6mm | 57mm | 93mm |

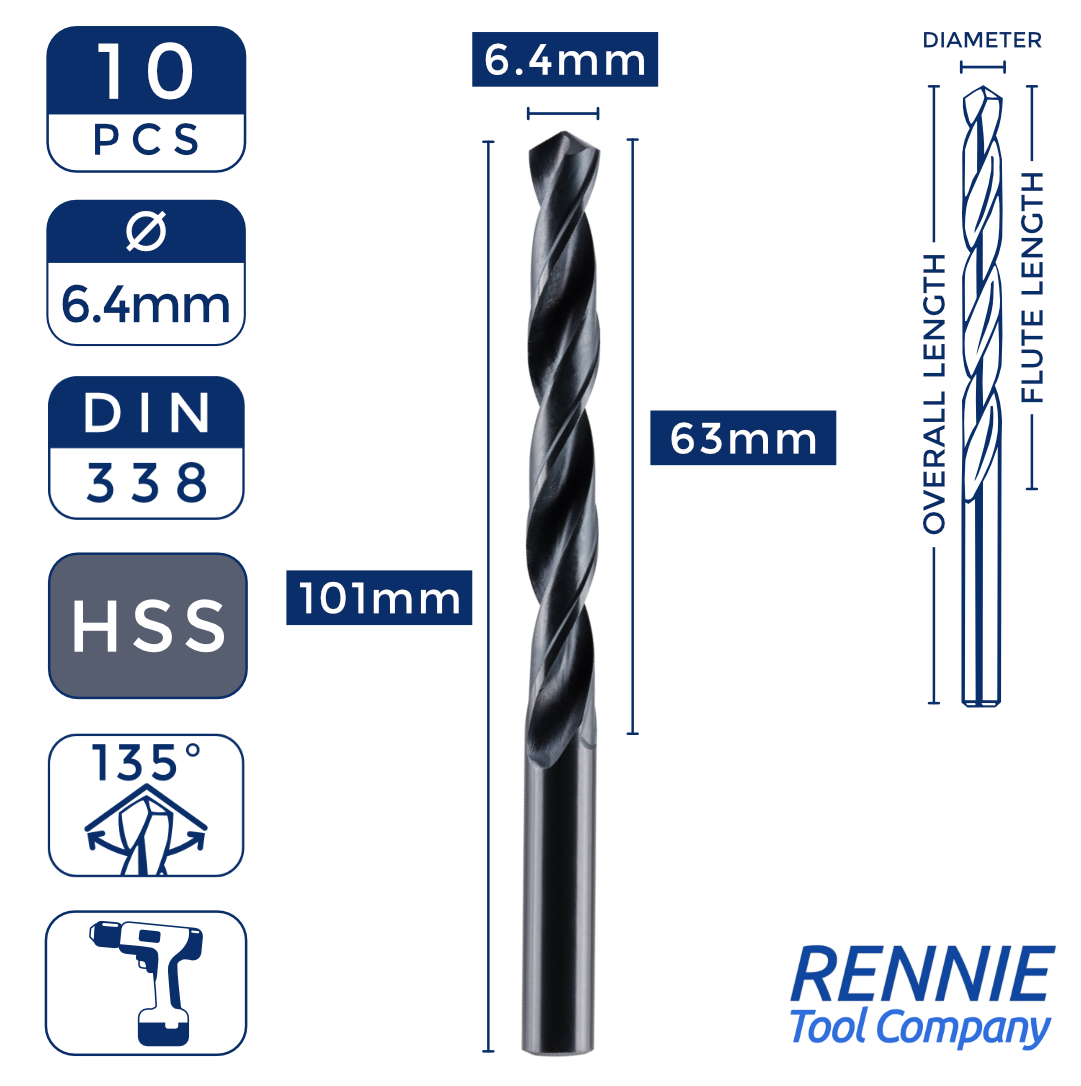

6.4mm | 63mm | 101mm |
6.5mm | 63mm | 101mm |
6.8mm | 69mm | 109mm |
7mm | 69mm | 109mm |
7.1mm | 69mm | 109mm |
7.5mm | 69mm | 109mm |
7.9mm | 75mm | 117mm |
8mm | 75mm | 117mm |
8.3mm | 75mm | 117mm |
8.5mm | 75mm | 117mm |
8.7mm | 81mm | 125mm |
9mm | 81mm | 125mm |
9.1mm | 81mm | 125mm |
9.5mm | 81mm | 125mm |
10mm | 87mm | 133mm |
10.2mm | 87mm | 133mm |
10.5mm | 87mm | 133mm |
11mm | 94mm | 142mm |
11.1mm | 94mm | 142mm |
11.5mm | 94mm | 142mm |
12mm | 101mm | 151mm |

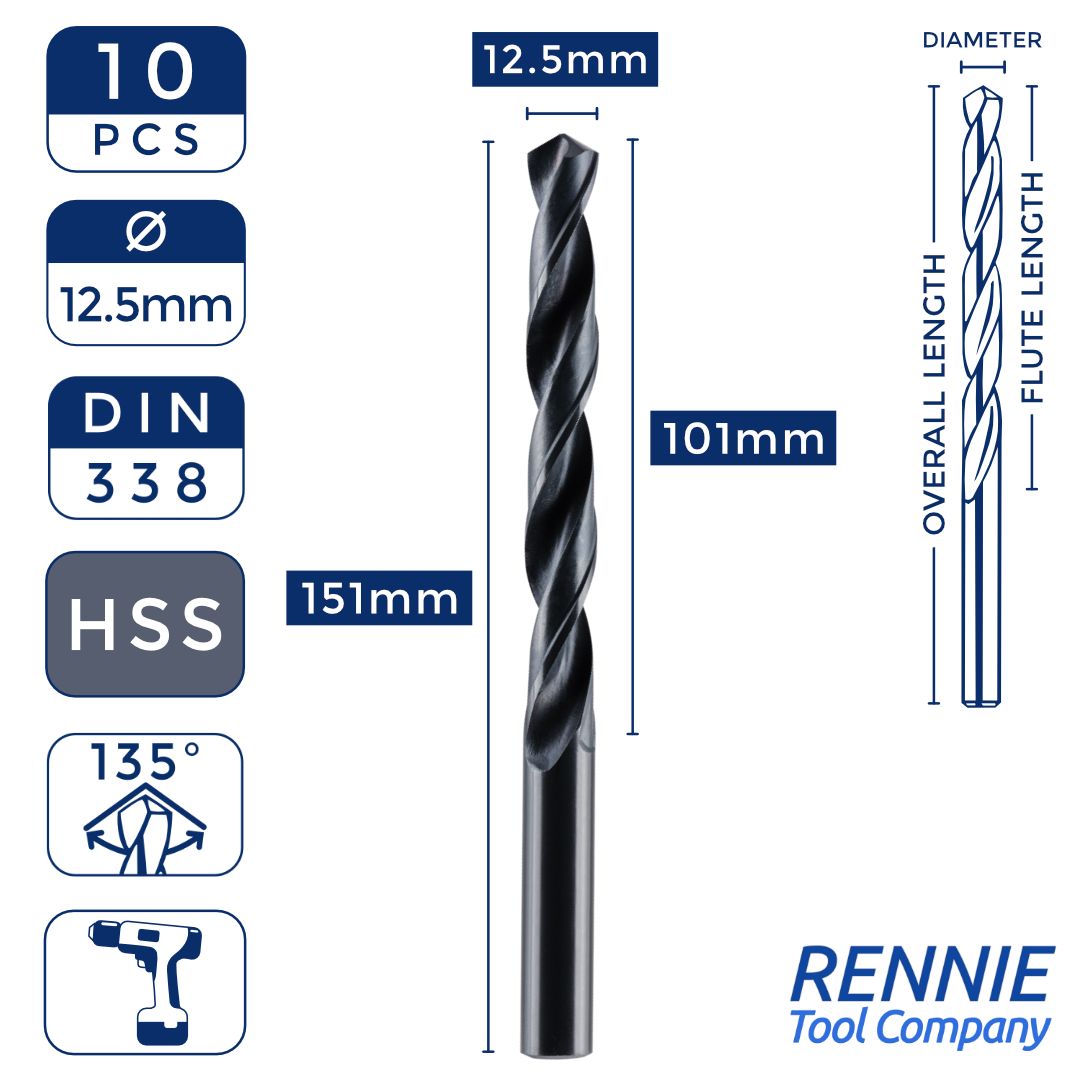

12.5mm | 101mm | 151mm |

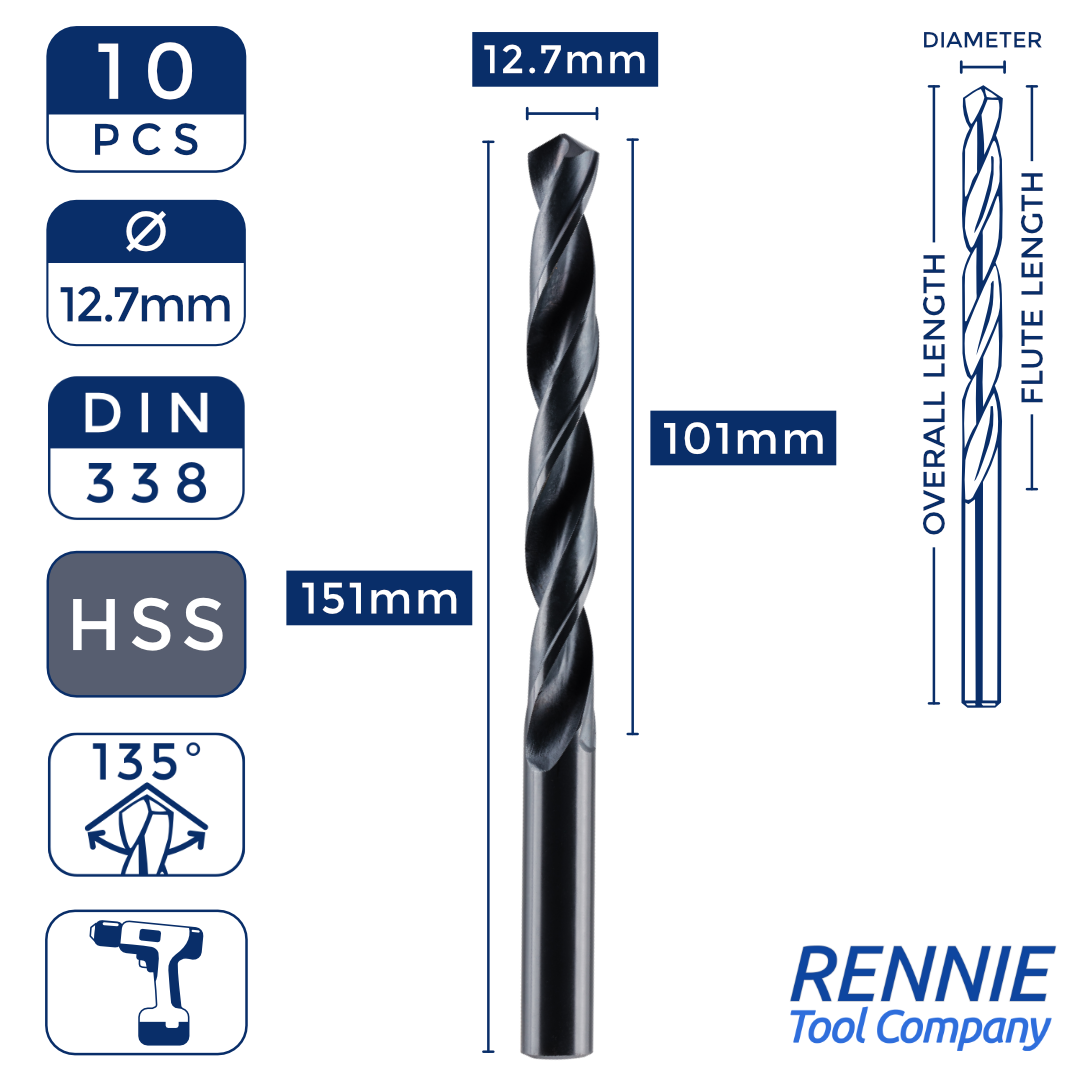

12.7mm | 101mm | 151mm |
13mm | 101mm | 151mm |
