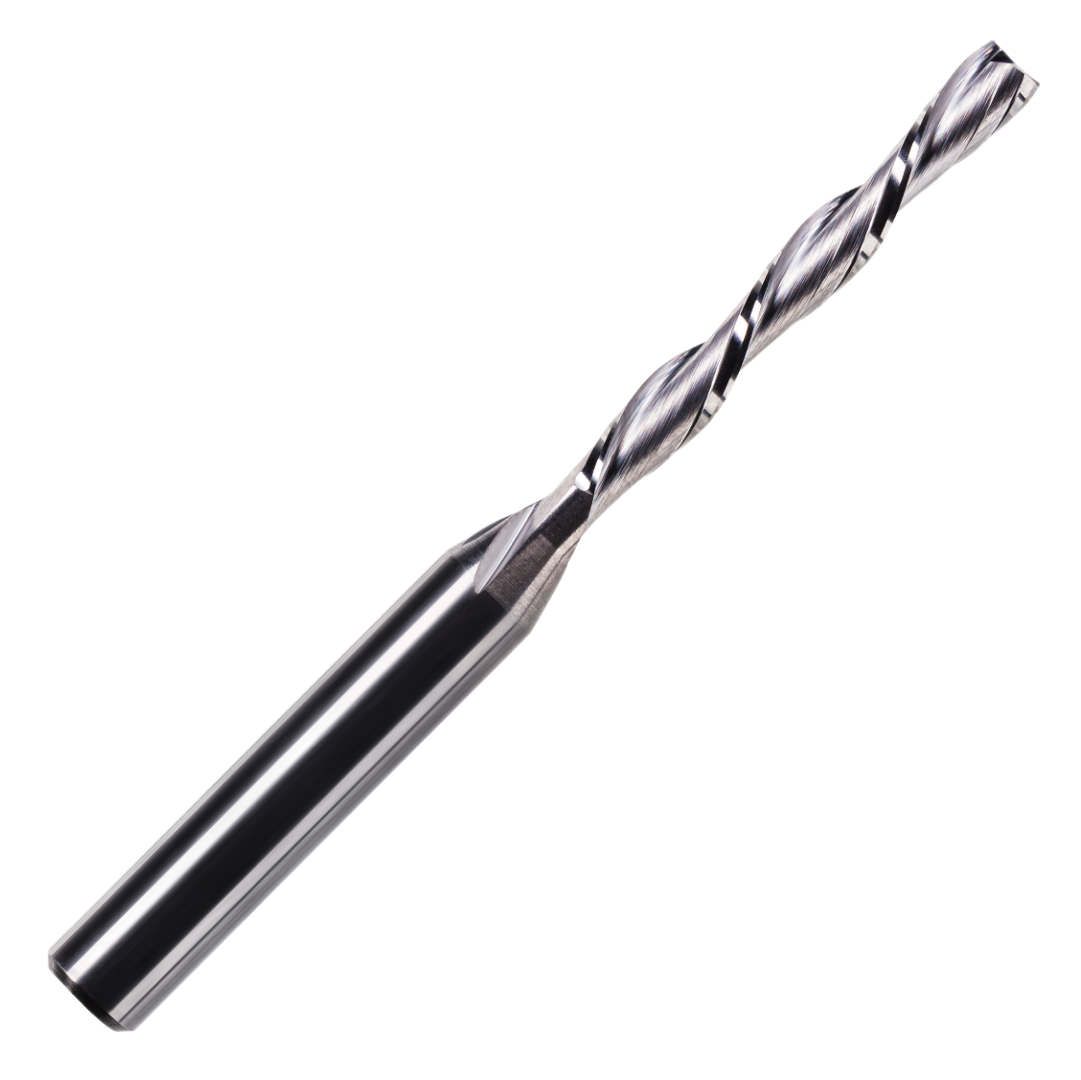

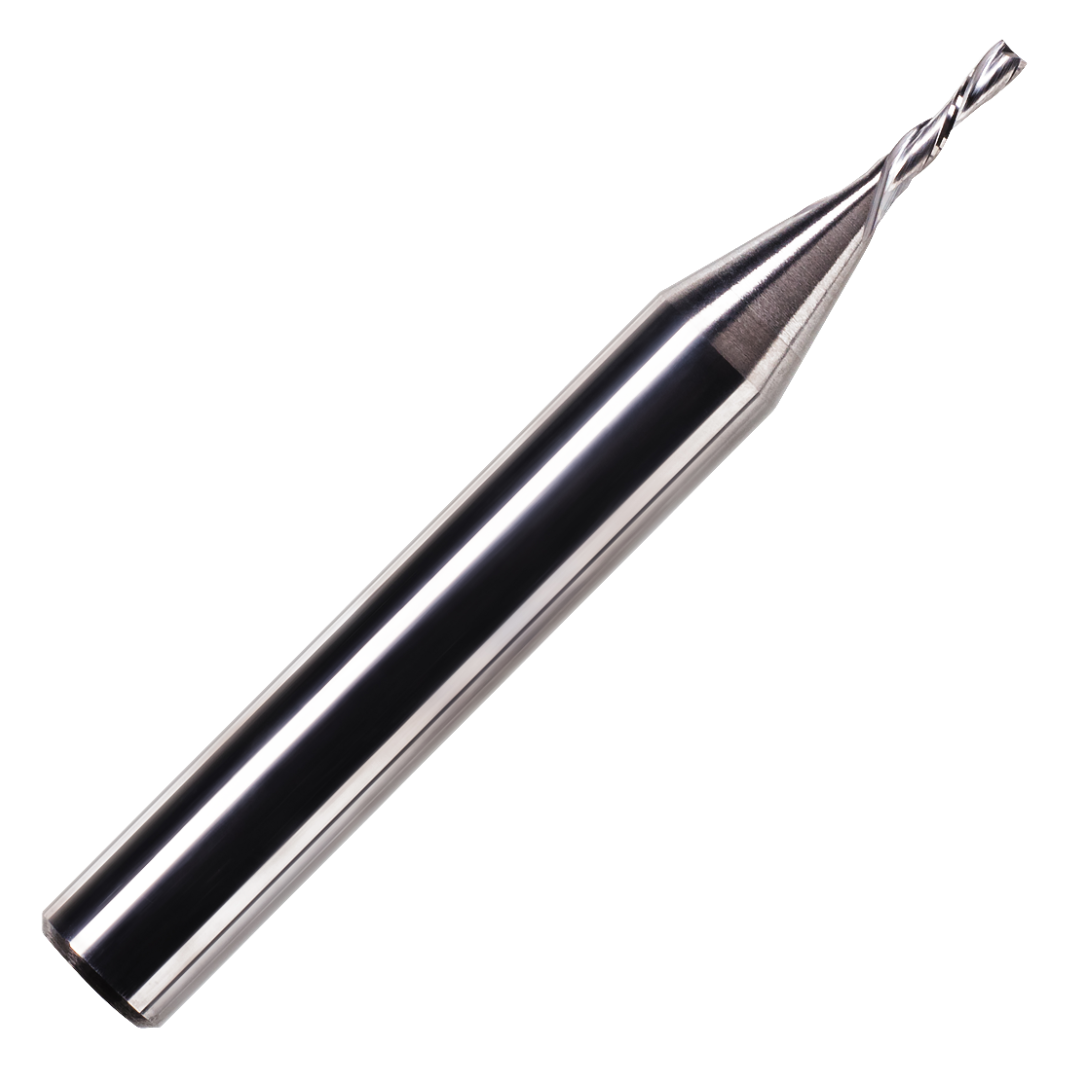

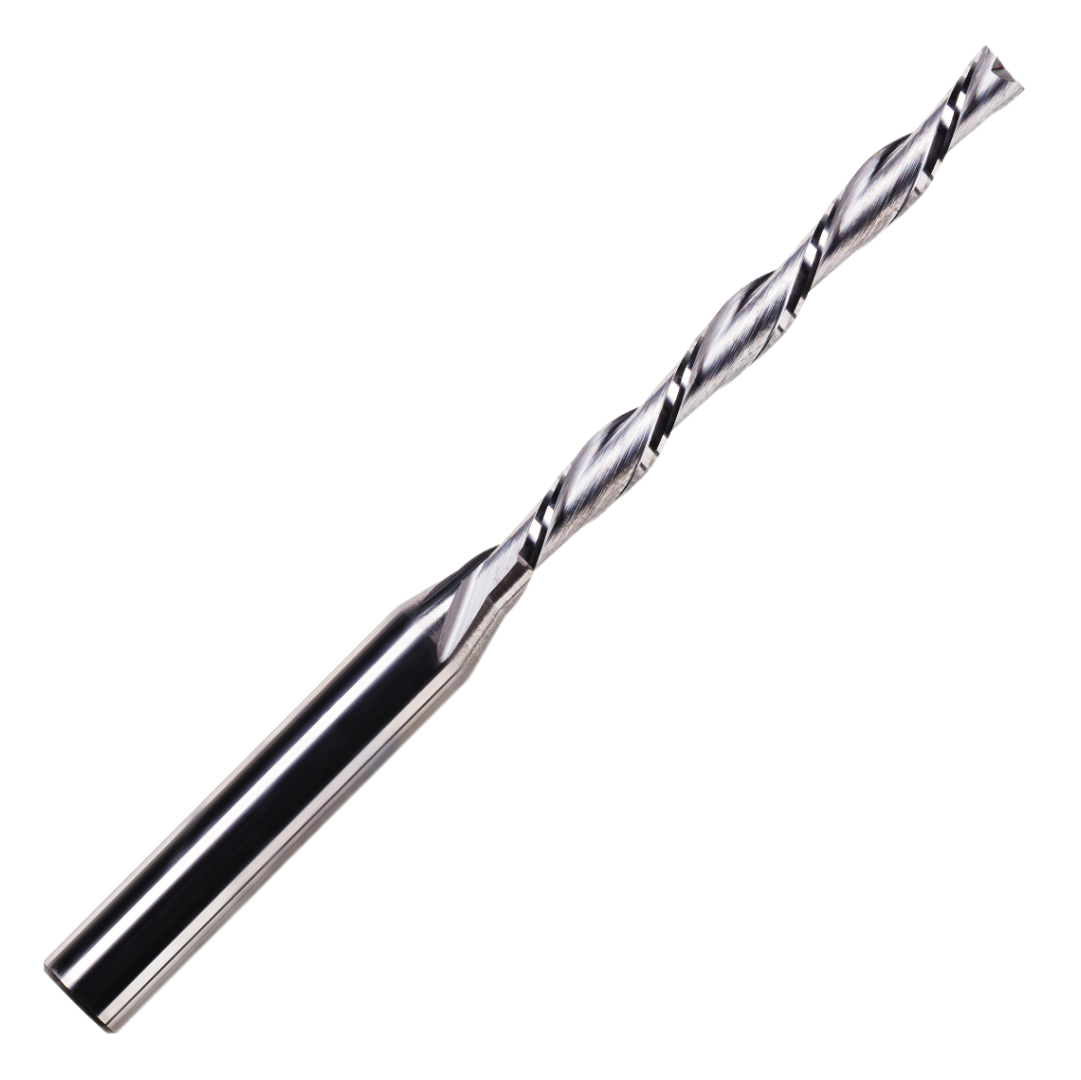

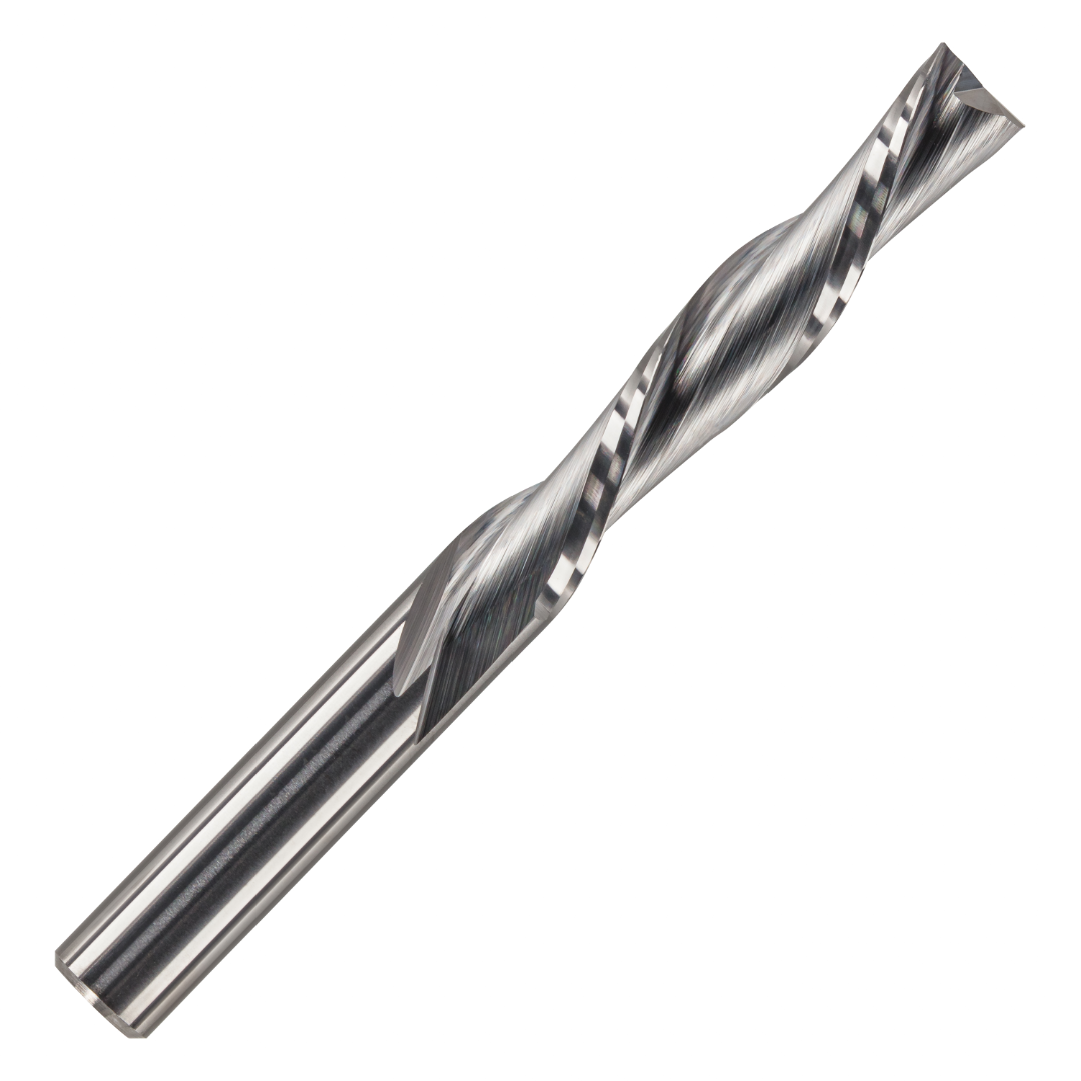

Solid Carbide 2 Flute Down Cut Spiral Router Bits On A 1/4" Shank
Spiral bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean & accurate cut, while the augering action clears chips from the cut. The “down-cut” cuts from the surface down, leaving a smooth edge at the surface.
- Unique carbide grade for longer lifetime in abrasive materials
- Produces a superior finish and longer tool life
- Razor-sharp cutting edges
- Can be used with hand-held, table-mounted
portable routers and CNC machines - Industrial quality
Cutting Diameter |
Flute Length |
Overall Length |
Shank Diameter |
|

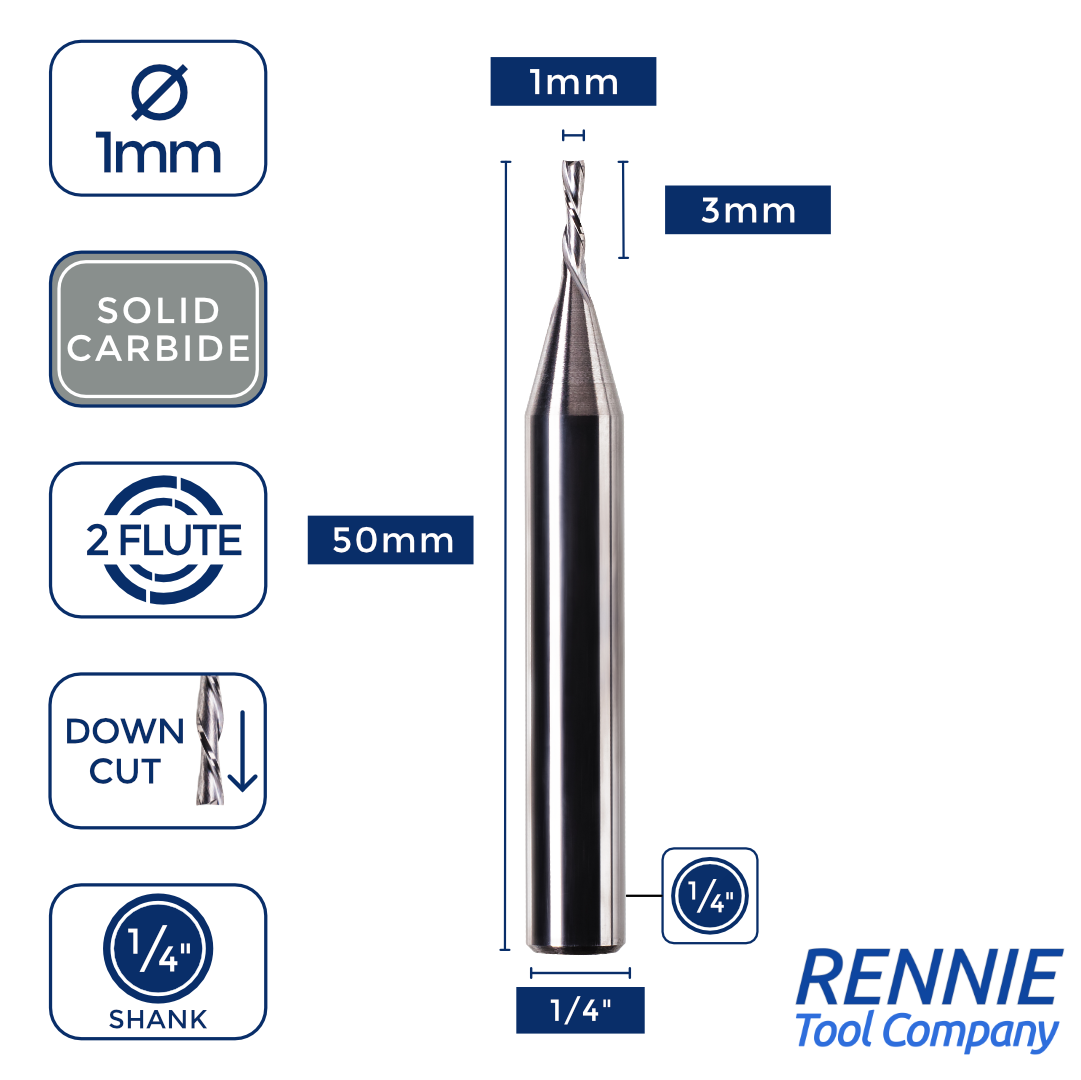

1mm |
3mm |
50mm |
1/4" (6.35mm) |
|
1.5mm |
6mm |
50mm |
1/4" (6.35mm) |
|
2mm |
8mm |
50mm |
1/4" (6.35mm) |
|
2mm |
12mm |
50mm |
1/4" (6.35mm) |
|
2mm |
15mm |
50mm |
1/4" (6.35mm) |
|

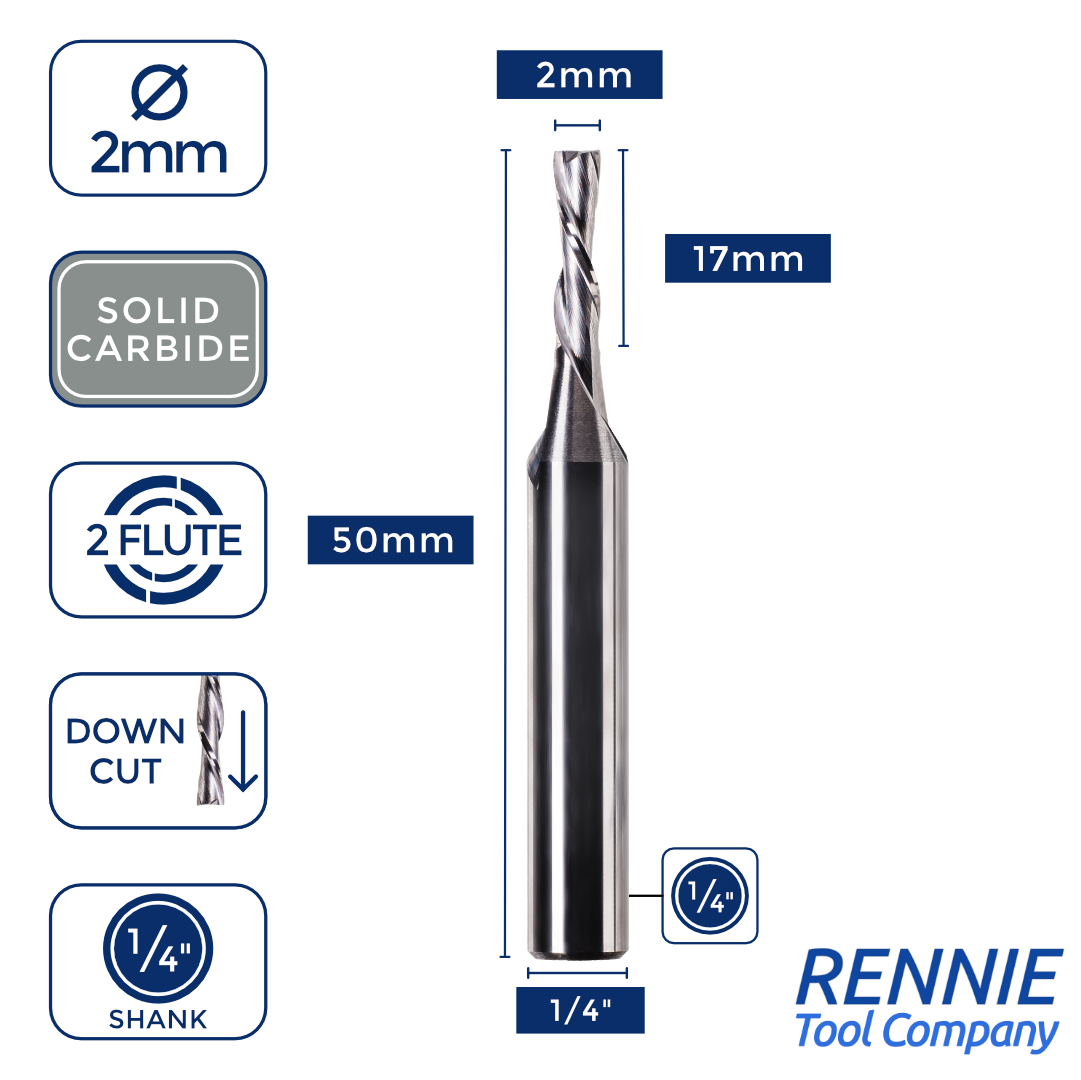

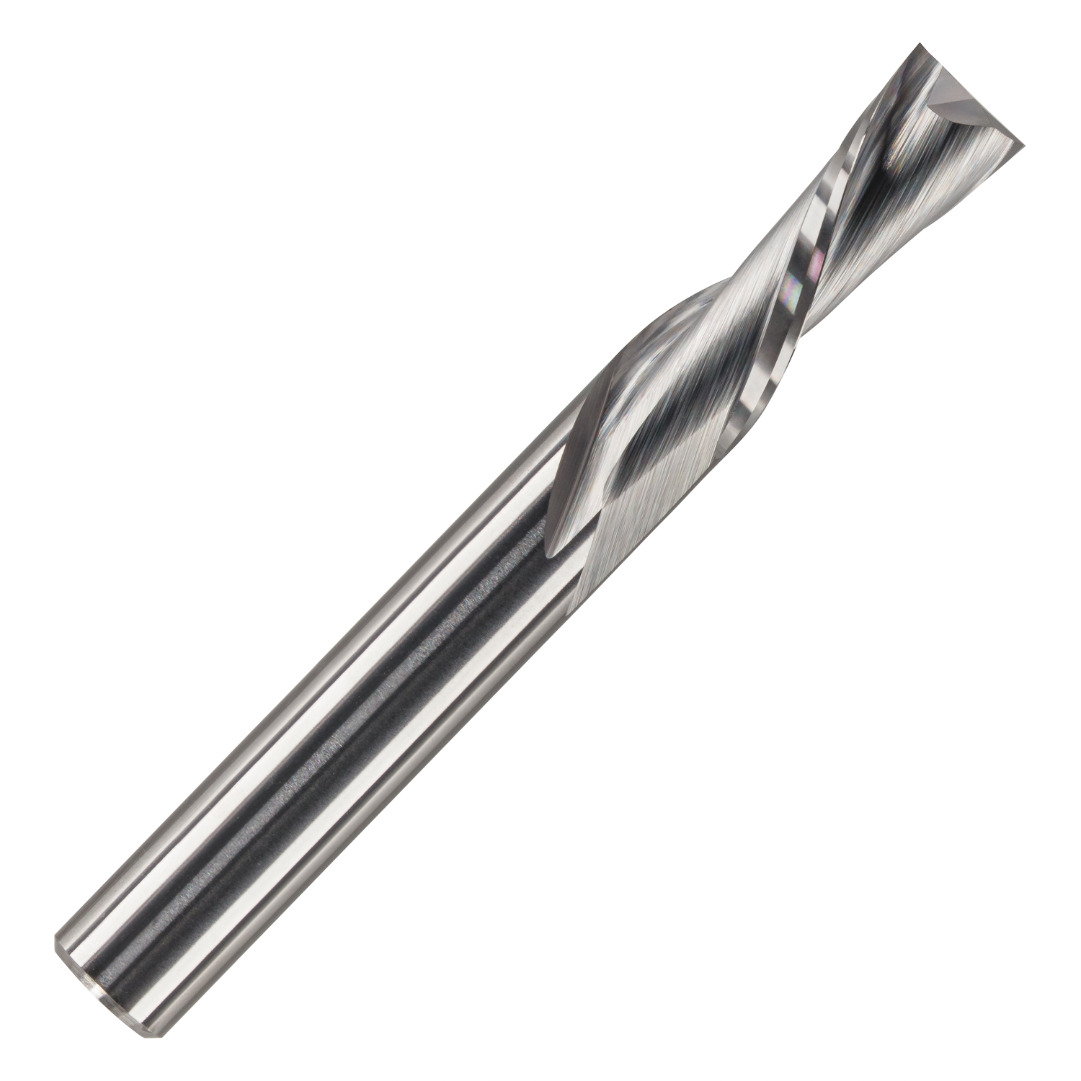

2mm |
17mm |
50mm |
1/4" (6.35mm) |
|

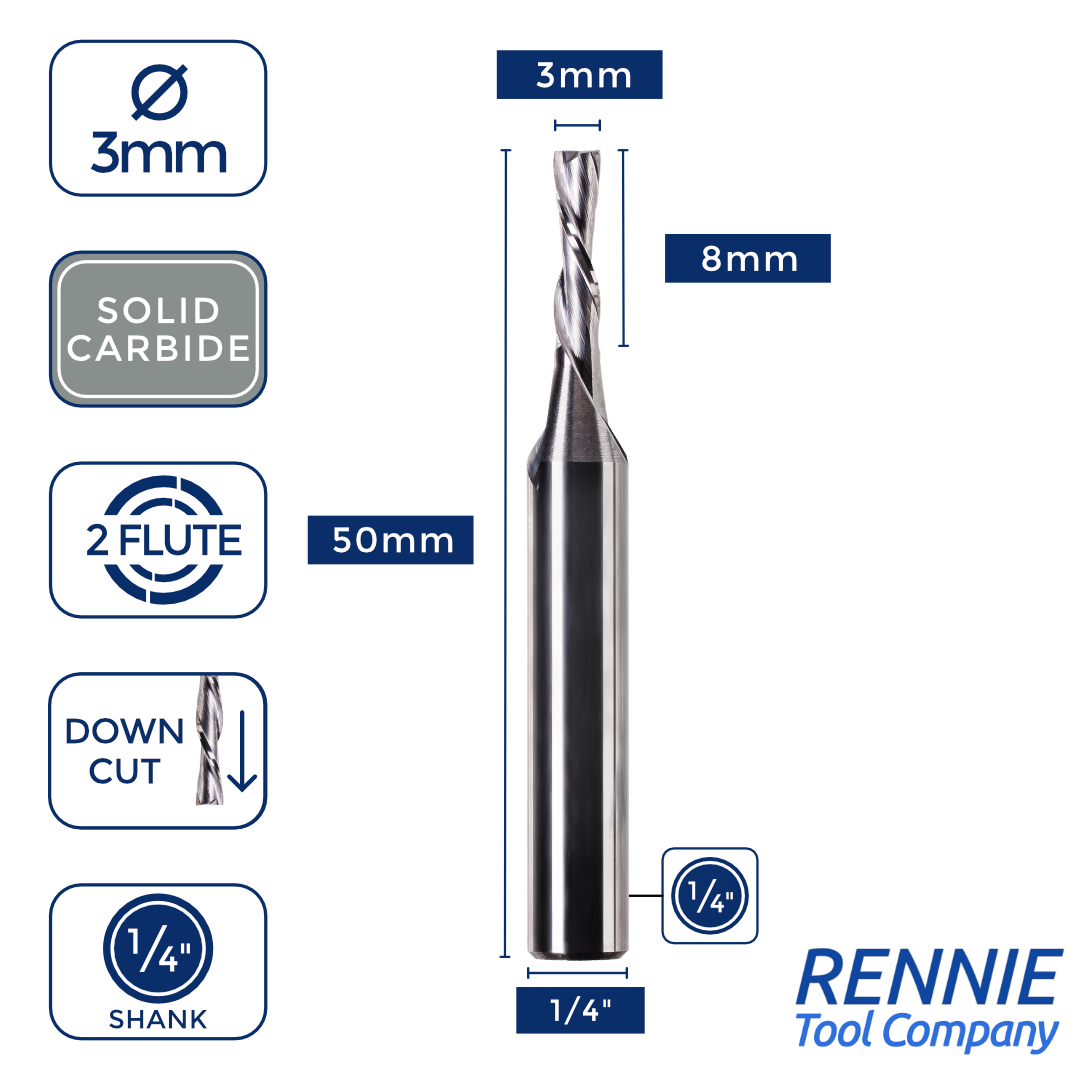

3mm |
8mm |
50mm |
1/4" (6.35mm) |
|
3mm |
12mm |
50mm |
1/4" (6.35mm) |
|
3mm |
15mm |
50mm |
1/4" (6.35mm) |
|

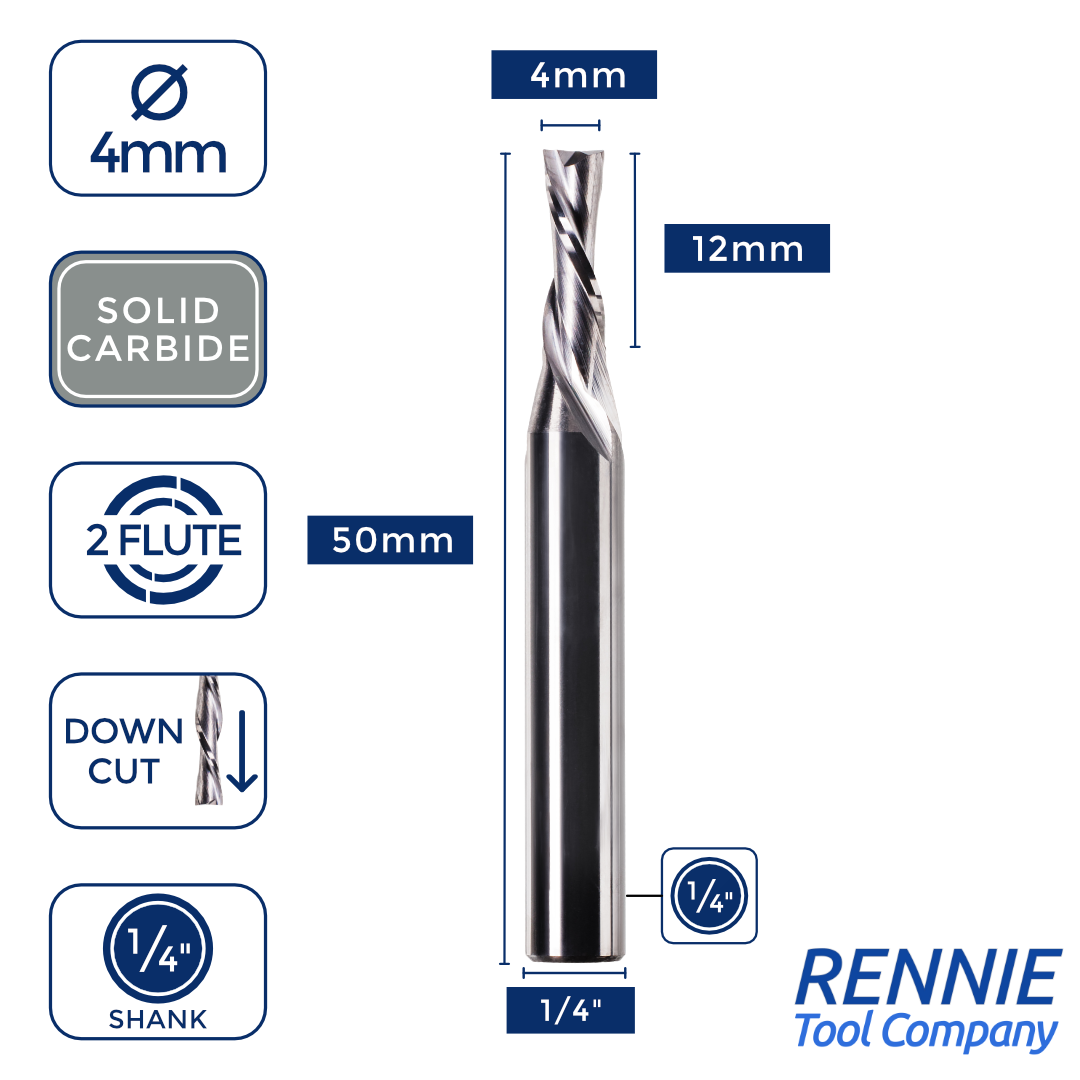

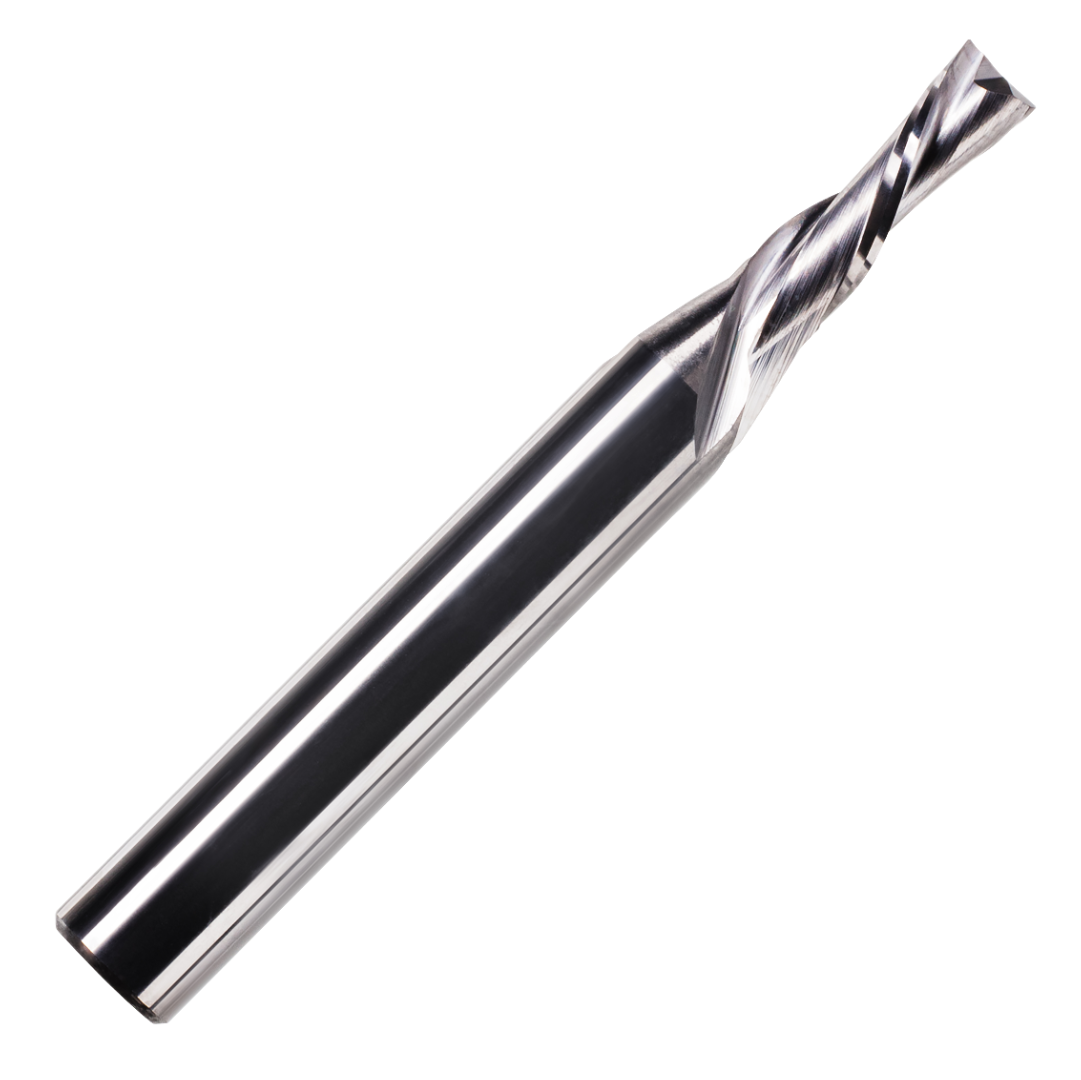

4mm |
12mm |
50mm |
1/4" (6.35mm) |
|

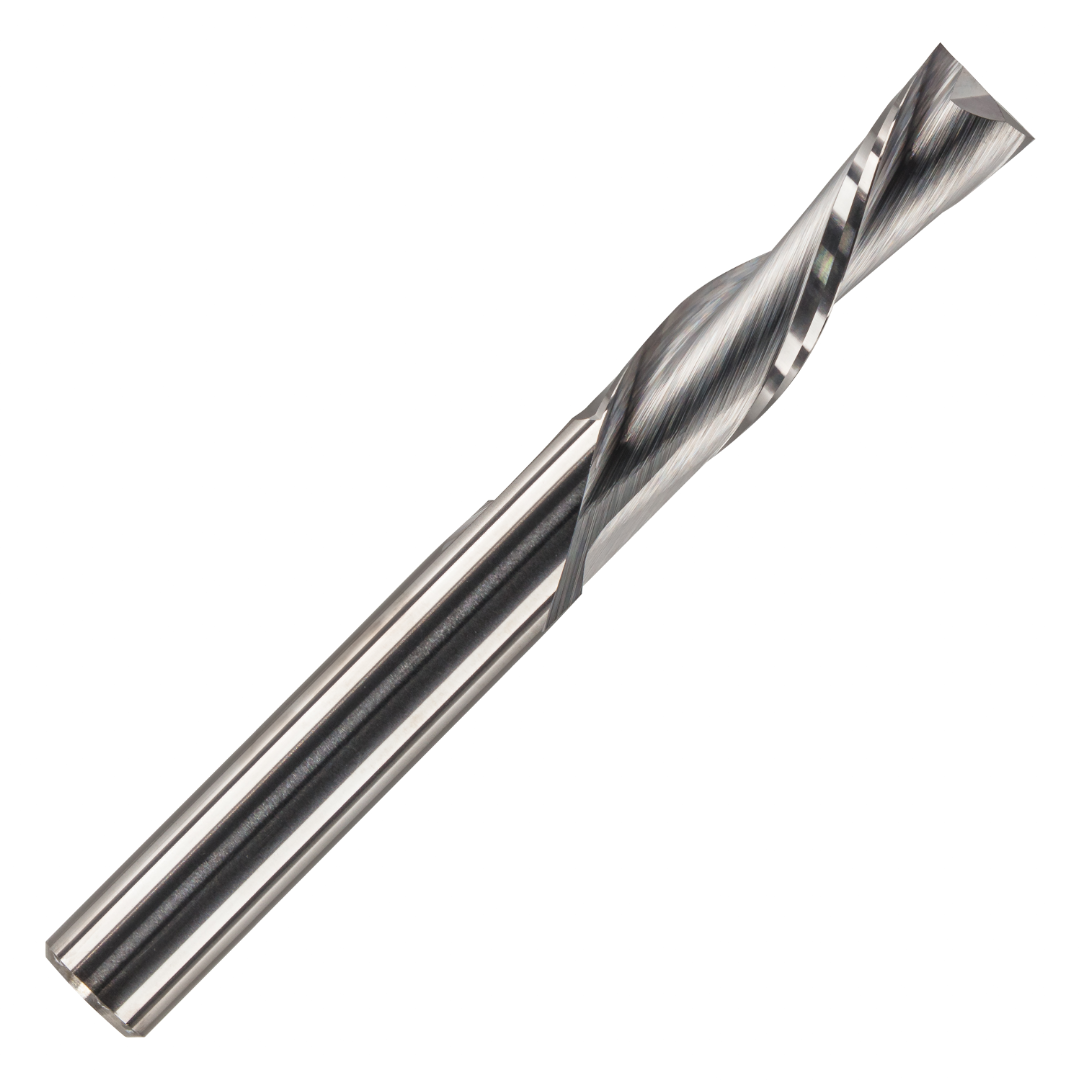

4mm |
22mm |
50mm |
1/4" (6.35mm) |
|

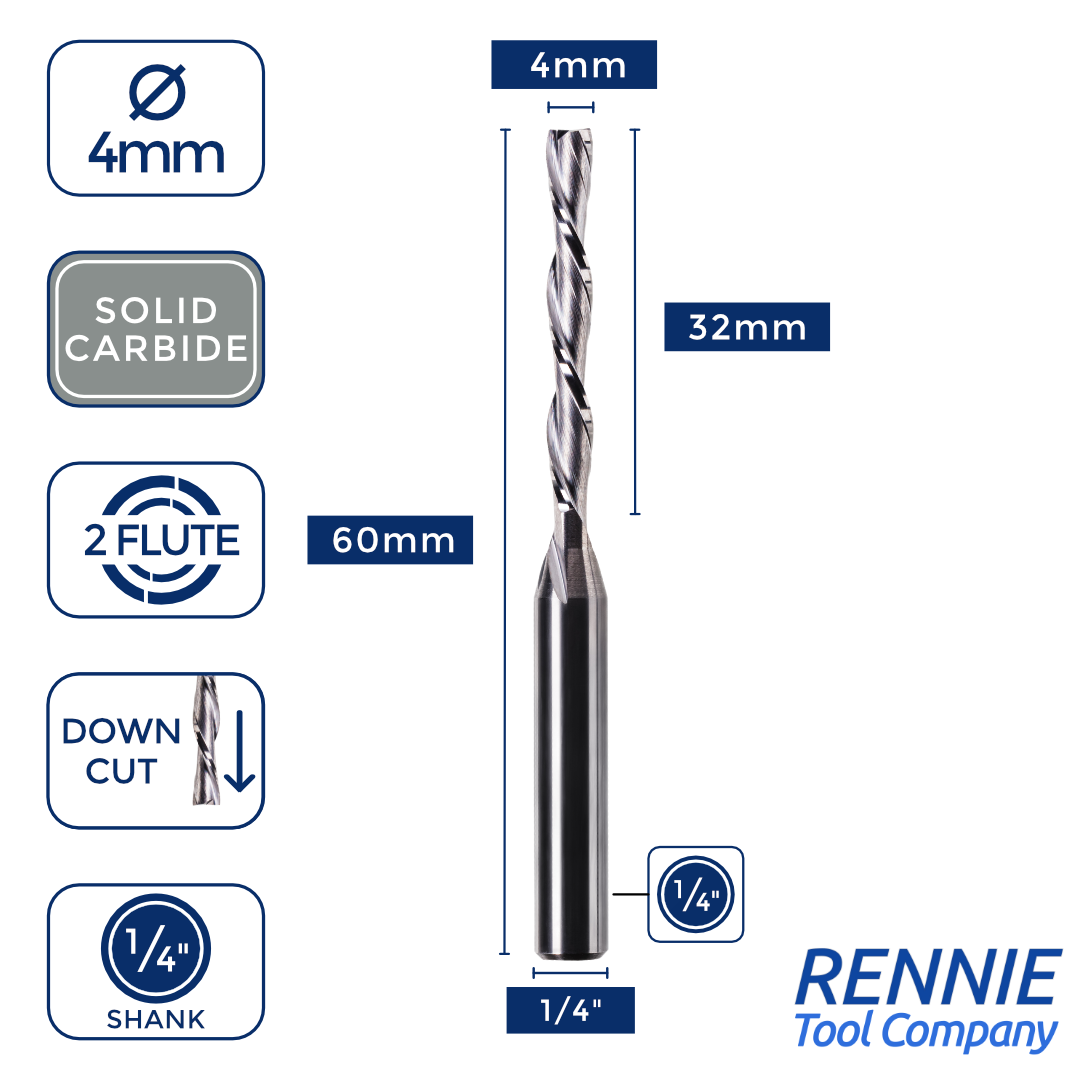

4mm |
32mm |
60mm |
1/4" (6.35mm) |
|
4mm |
42mm |
70mm |
1/4" (6.35mm) |
|

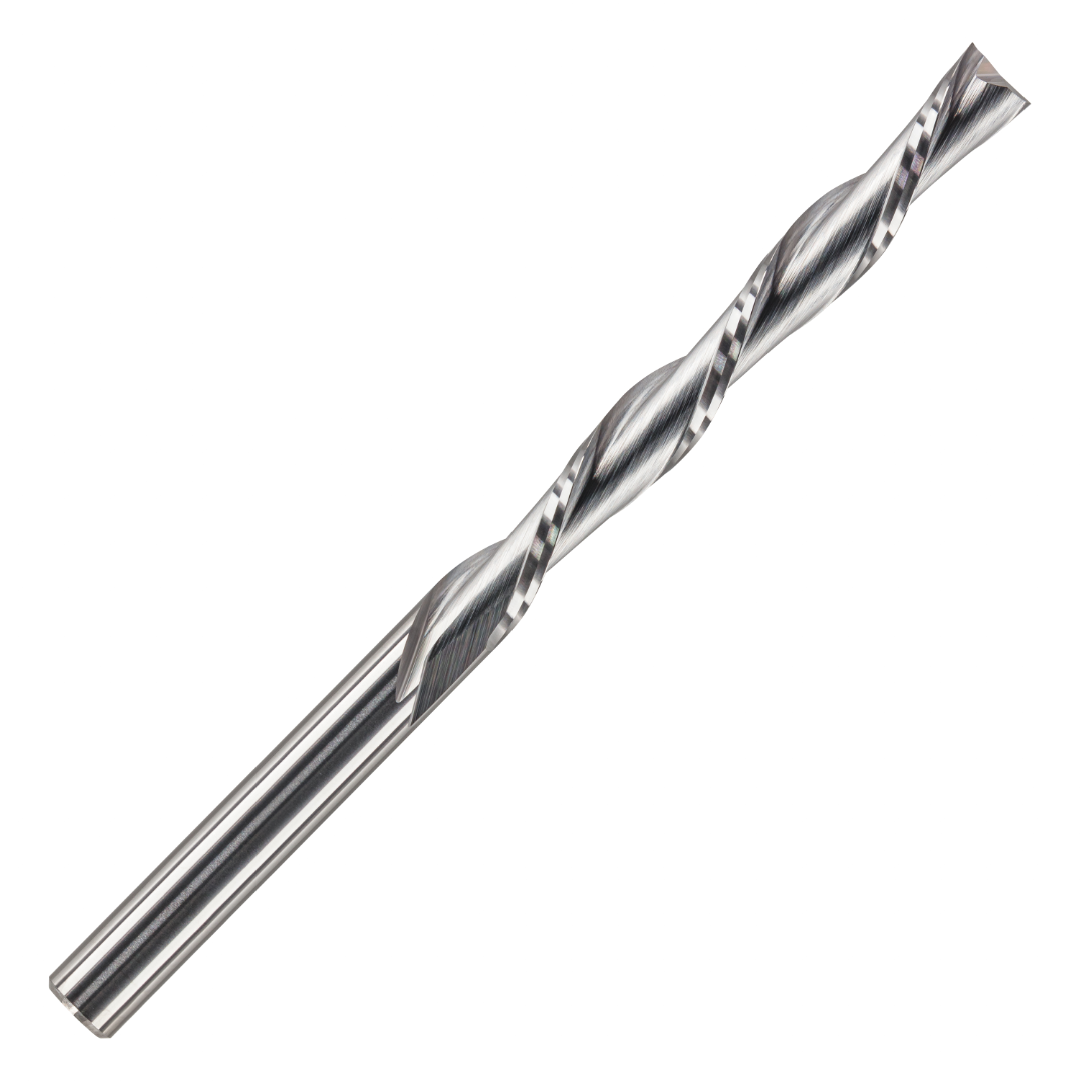

4mm |
52mm |
80mm |
1/4" (6.35mm) |
|

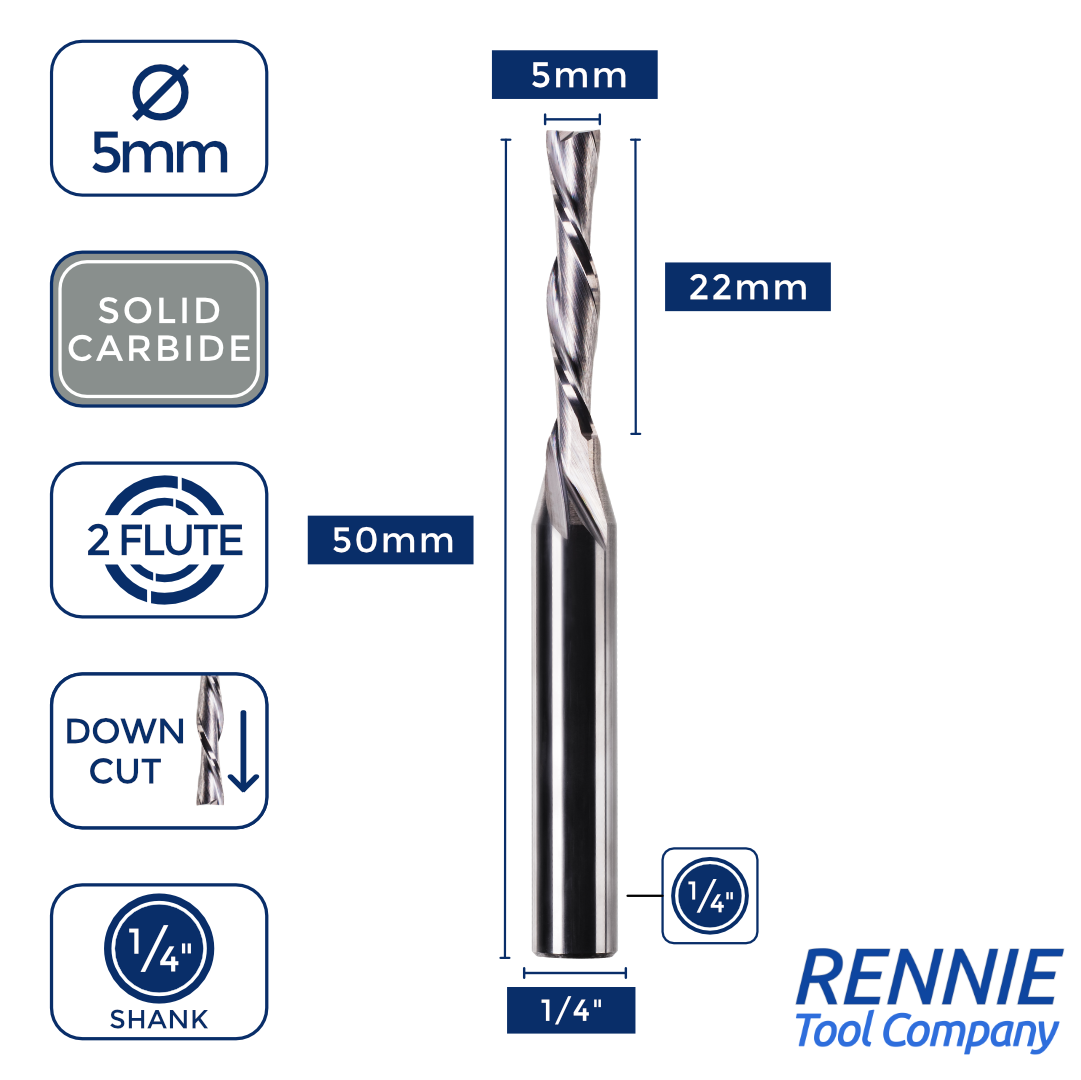

5mm |
22mm |
50mm |
1/4" (6.35mm) |
|

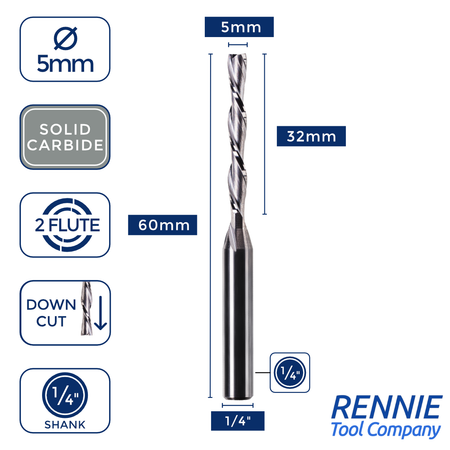

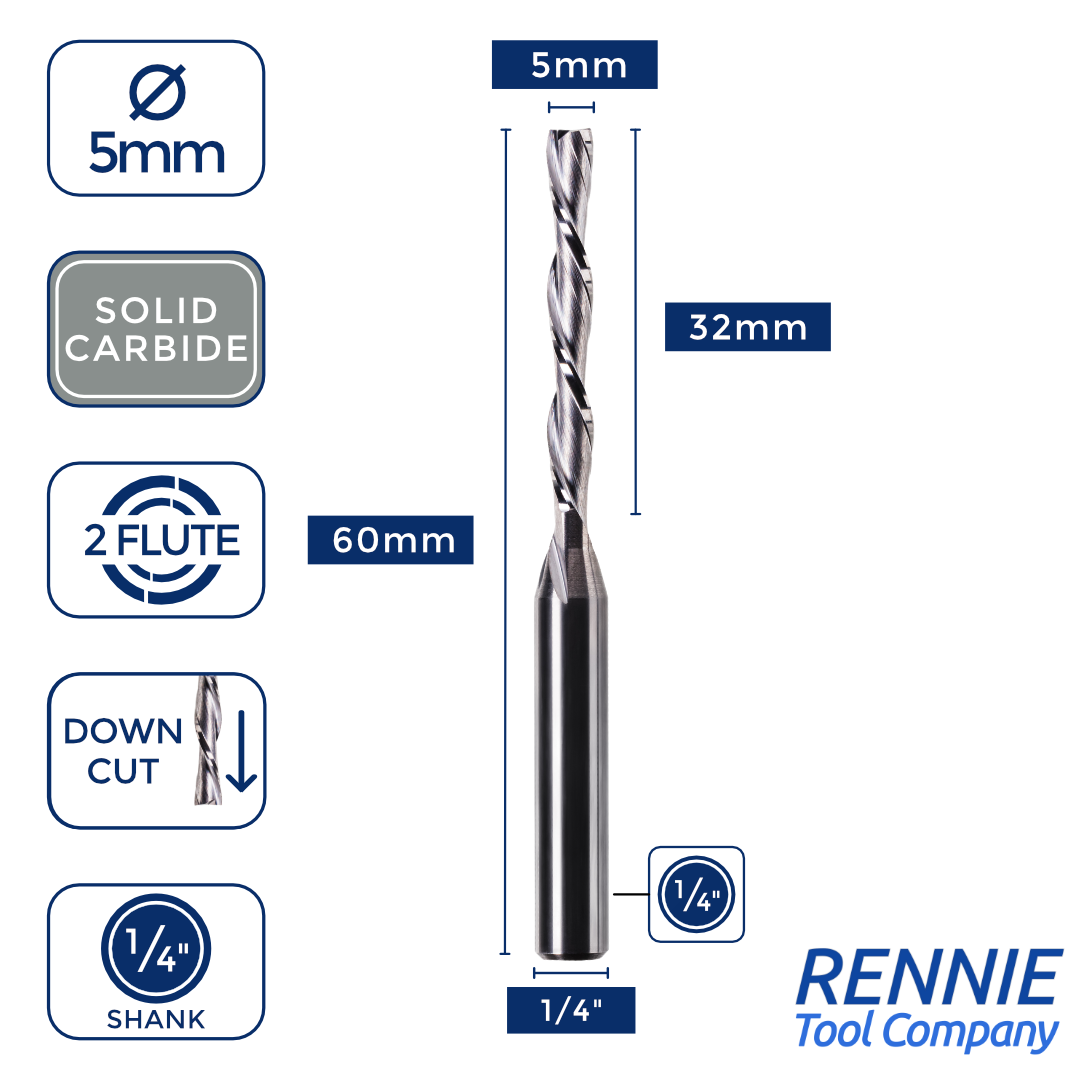

5mm |
32mm |
60mm |
1/4" (6.35mm) |
|

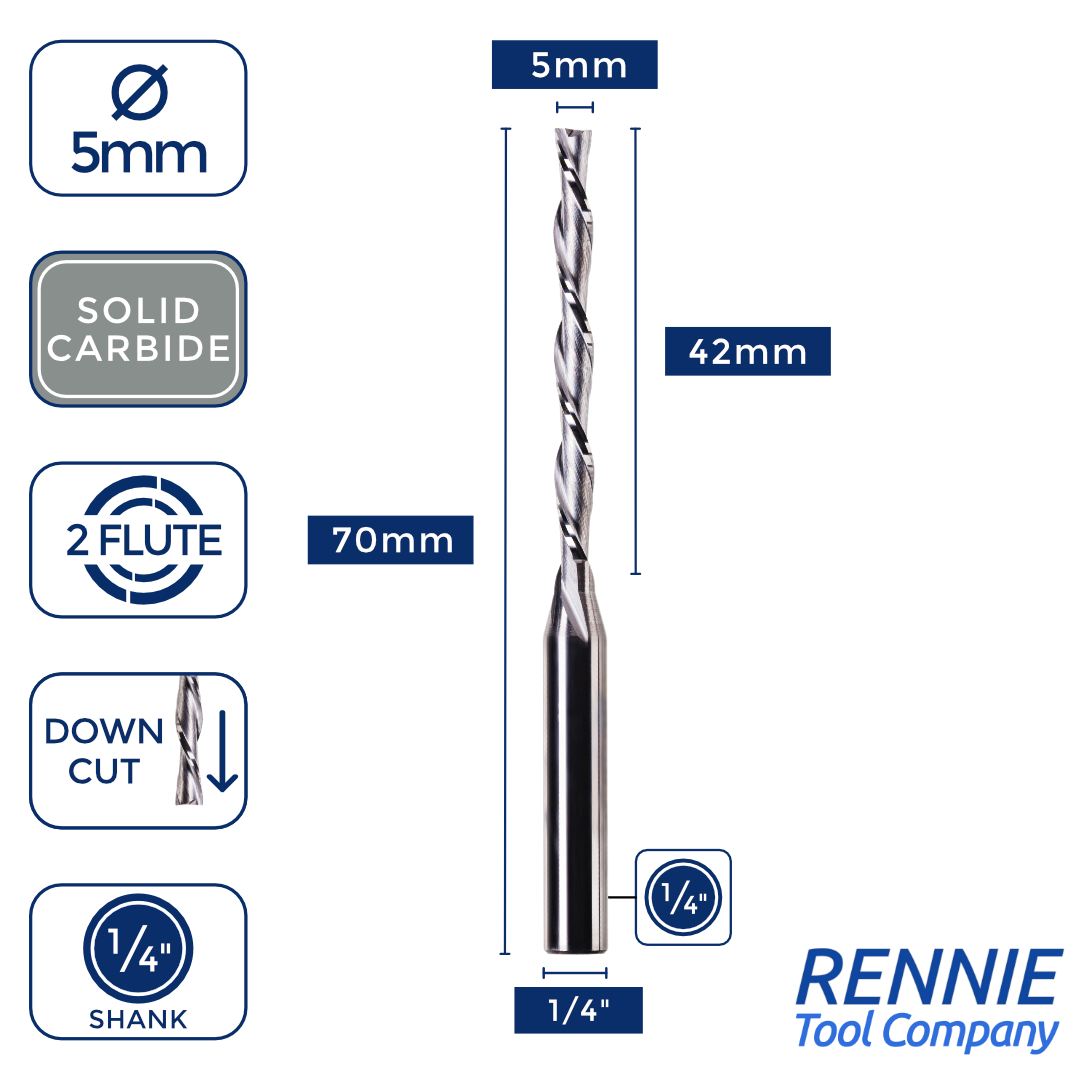

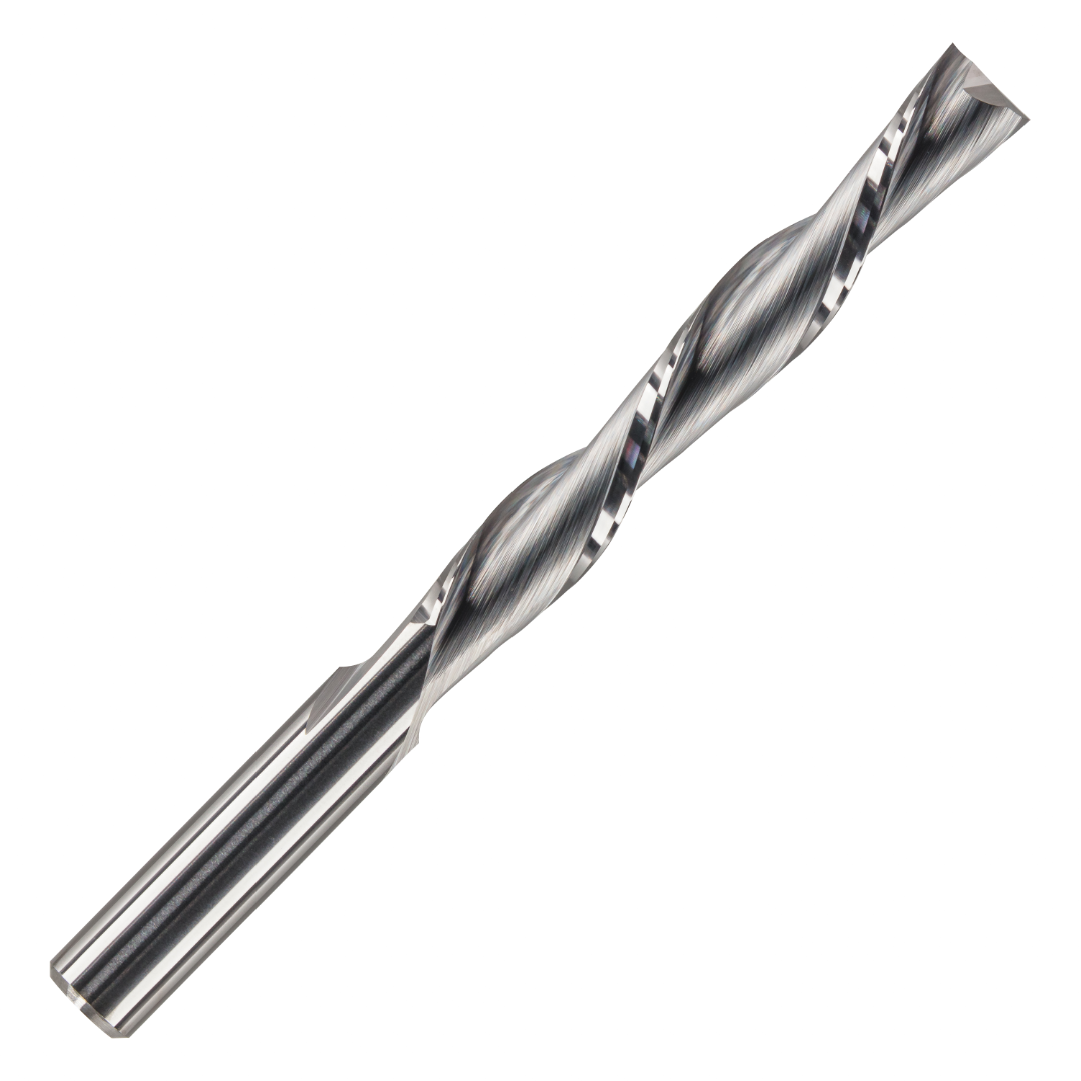

5mm |
42mm |
70mm |
1/4" (6.35mm) |
|

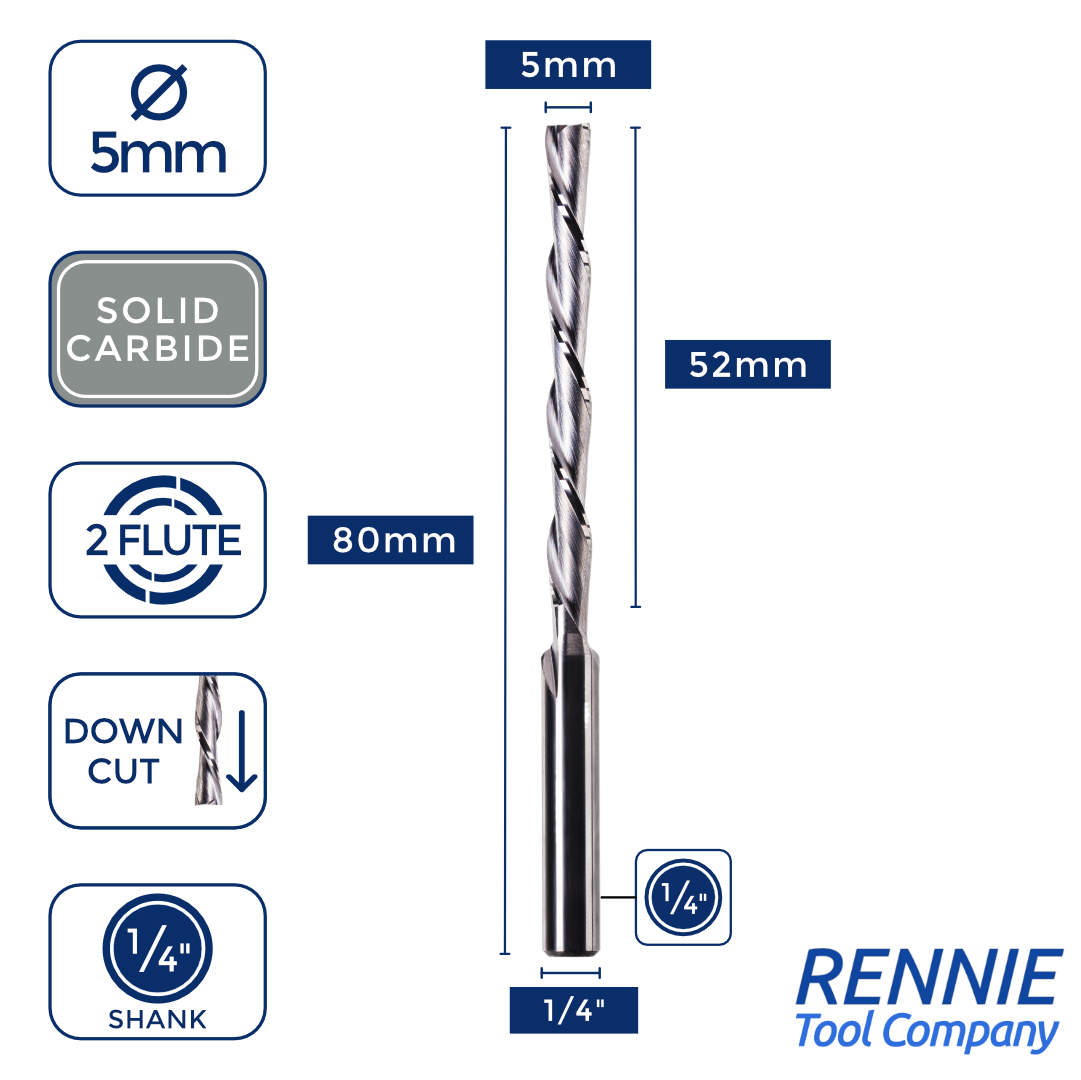

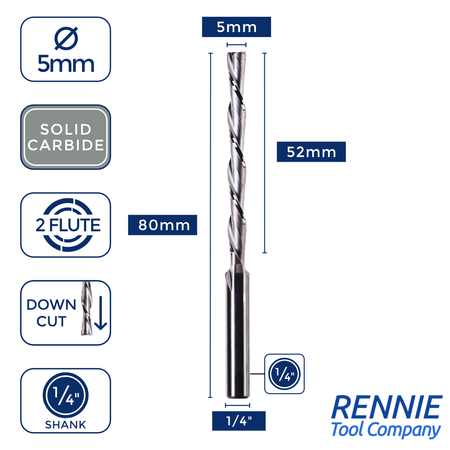

5mm |
52mm |
80mm |
1/4" (6.35mm) |
|
5mm |
62mm |
90mm |
1/4" (6.35mm) |
|

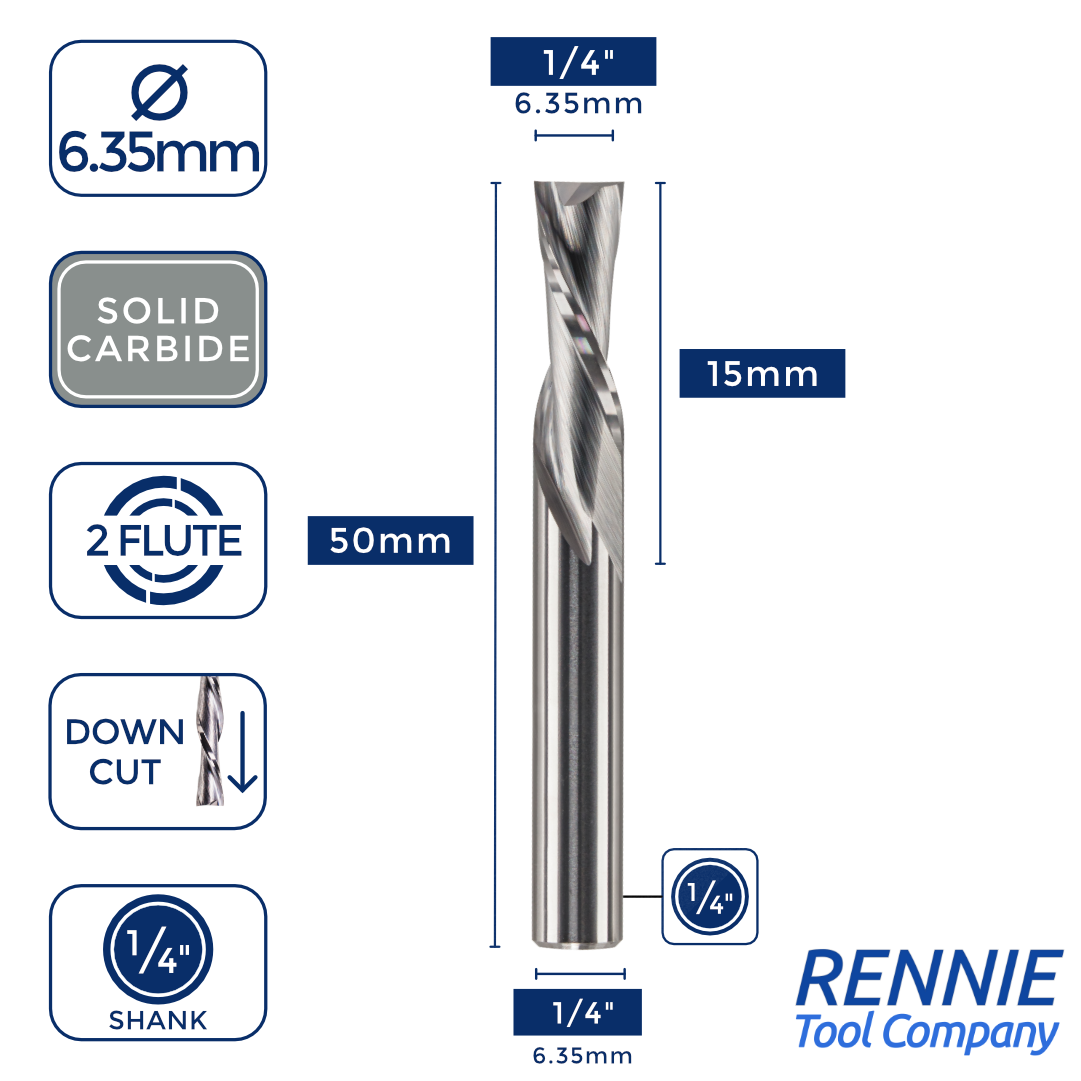

1/4" | 15mm | 50mm |
|
|
1/4" |
22mm |
50mm |
1/4" (6.35mm) | |
1/4" |
32mm |
60mm |
1/4" (6.35mm) | |

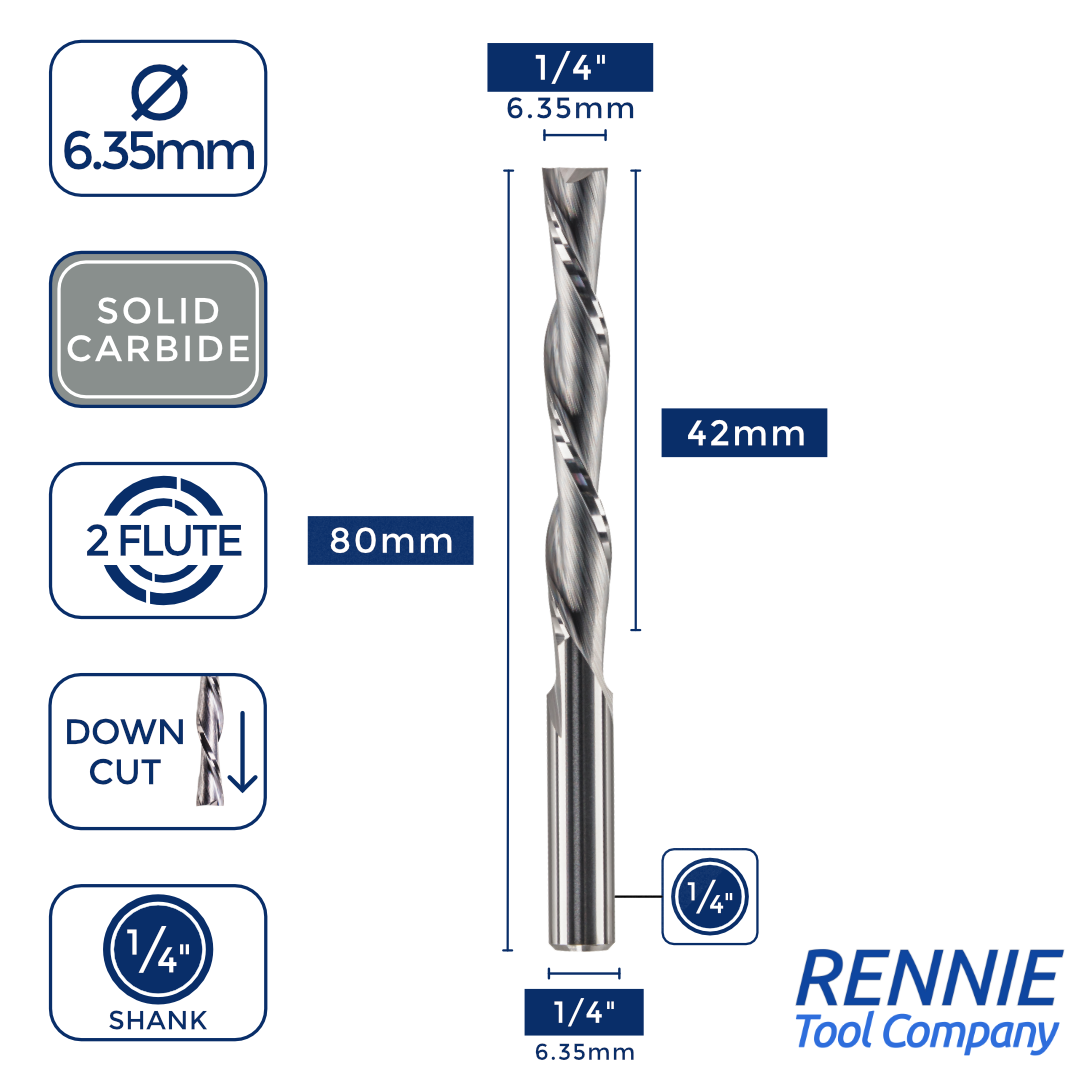

1/4" |
42mm |
80mm |
1/4" (6.35mm) | |

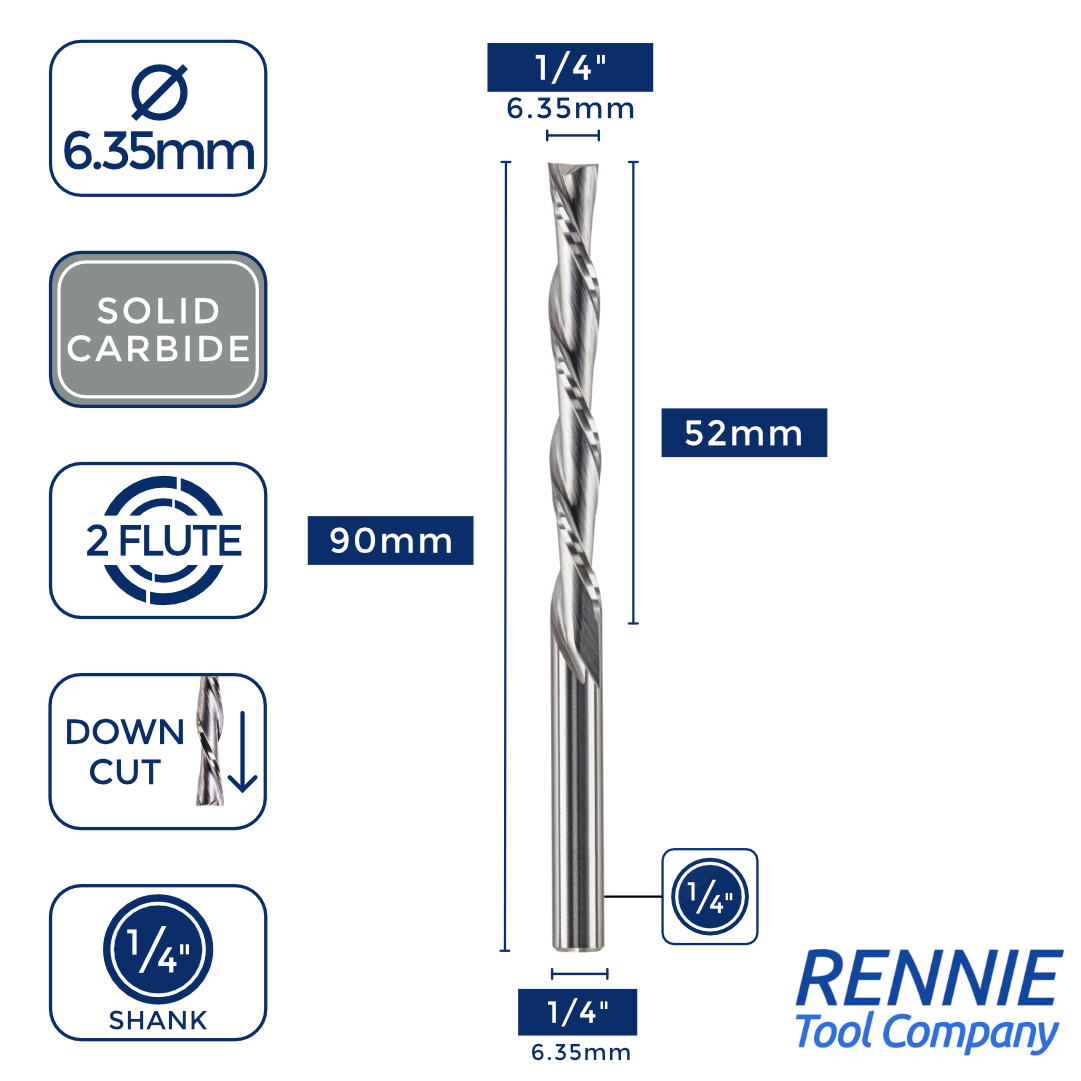

1/4" |
52mm |
90mm |
1/4" (6.35mm) |
