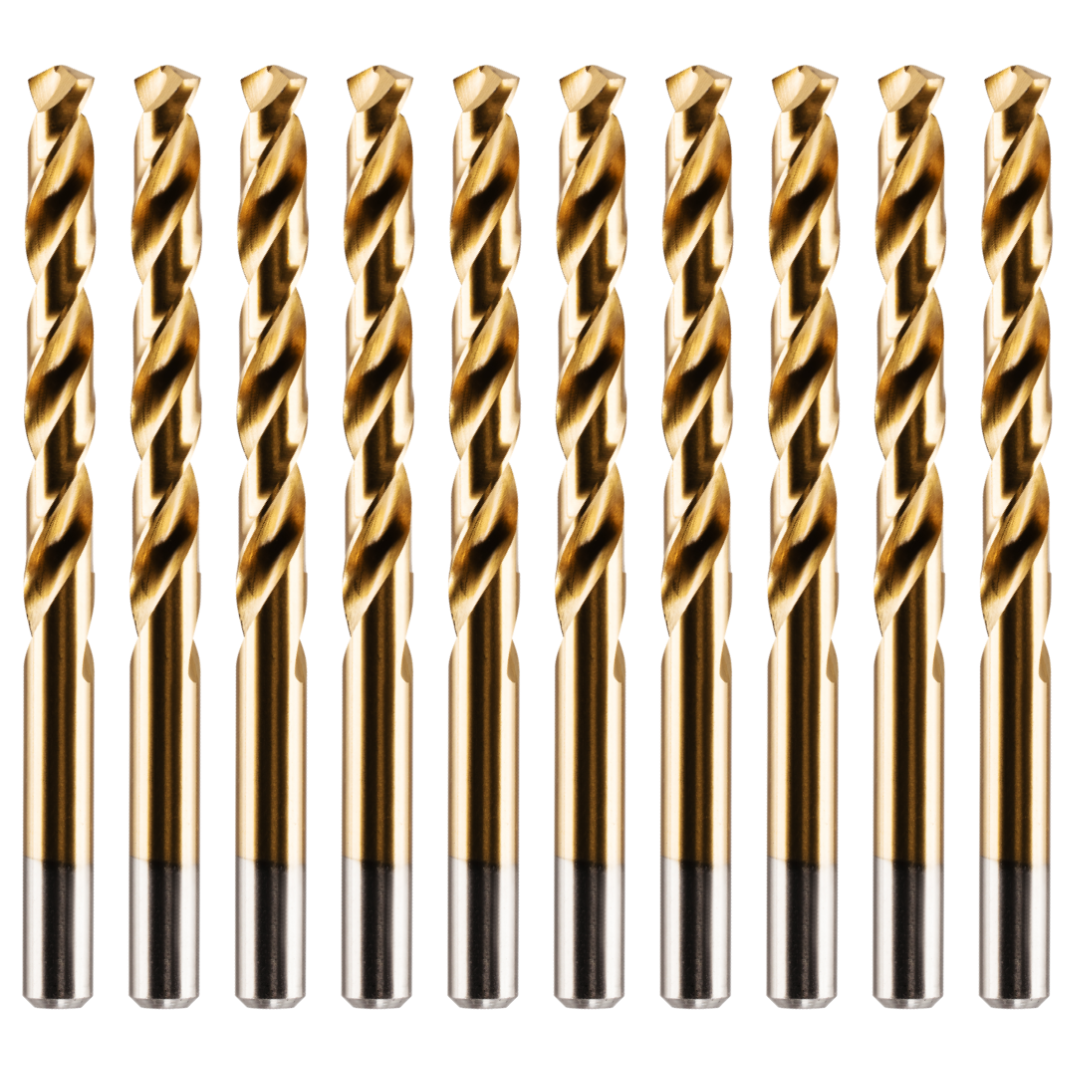

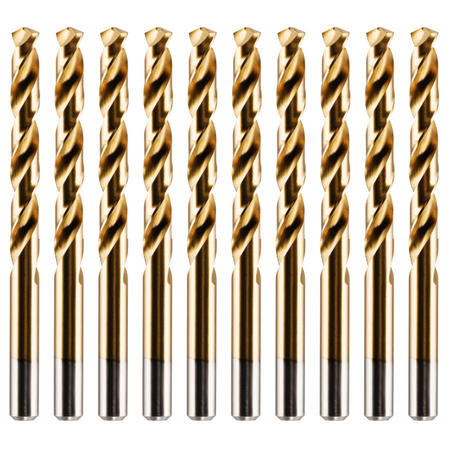

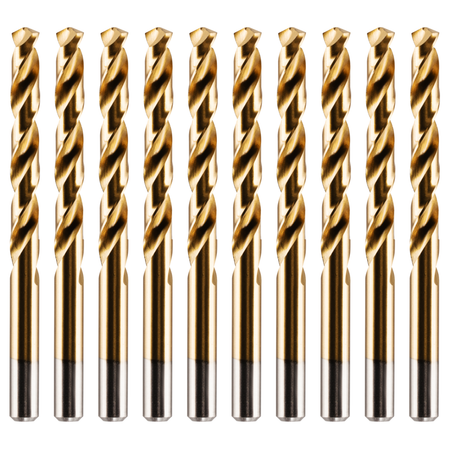

Box Of 10 x HSS M2 Titanium Coated Jobber Drill Bits
Premium Quality HSS M2 Fully Ground Titanium Coated Jobber Drills
Ideal for drilling alloyed and non alloyed steel, non ferrous, aluminium, plastic, wood, cast iron and hard plastics.
For drilling stainless steel and hard metals you should check out our cobalt jobber drills
-
All Our Drills Are Manufactured to DIN338
- Sizes available from 1.0mm - 13.0mm

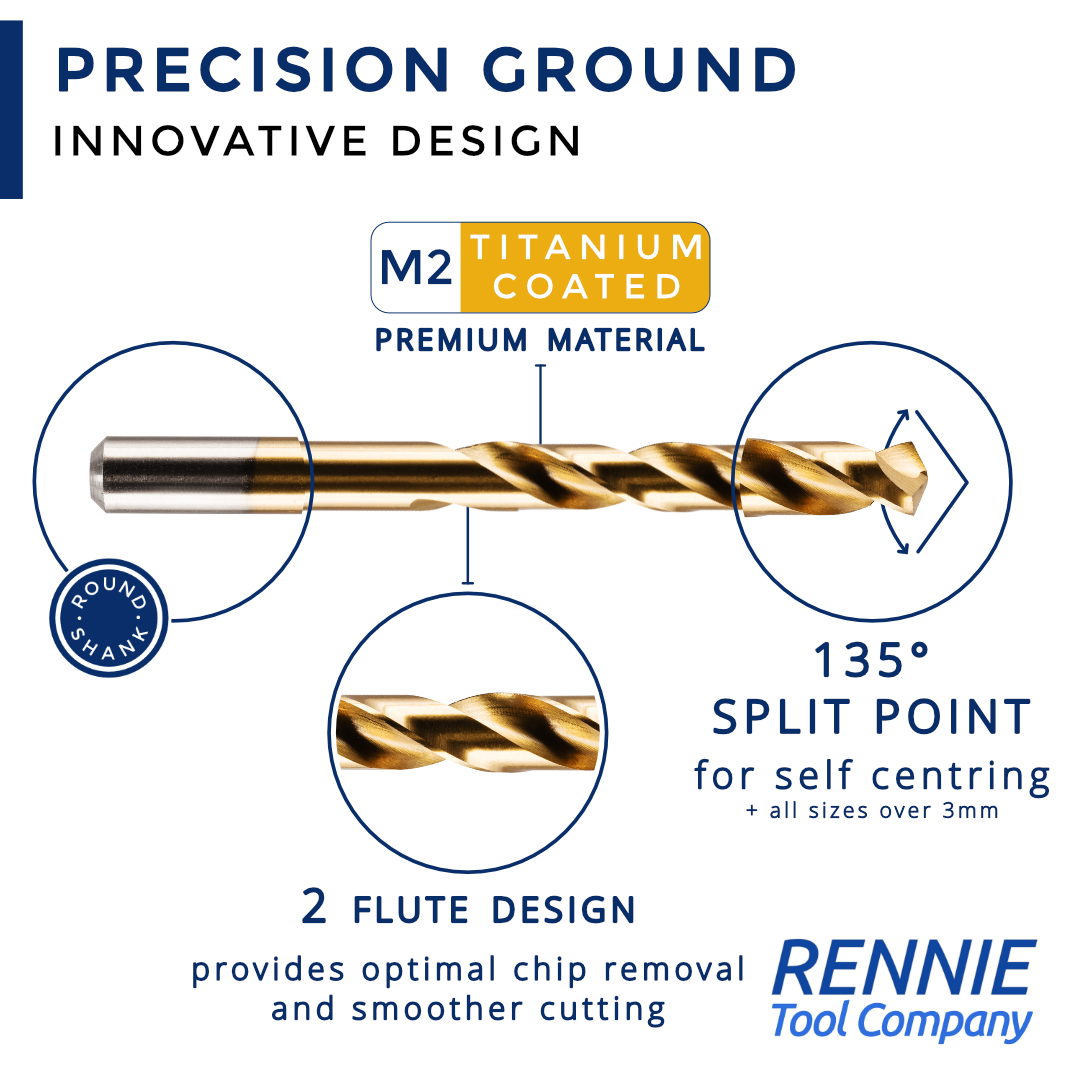

- Split point 135 degree can provide up to 40% faster drilling with lower feed pressures compared to standard HSS drills
Dimensions -
Drill Diameter | Flute Length | Overall Length |
1mm | 12mm | 34mm |
1.5mm | 18mm | 40mm |
1.6mm | 20mm | 43mm |
1.8mm | 22mm | 46mm |

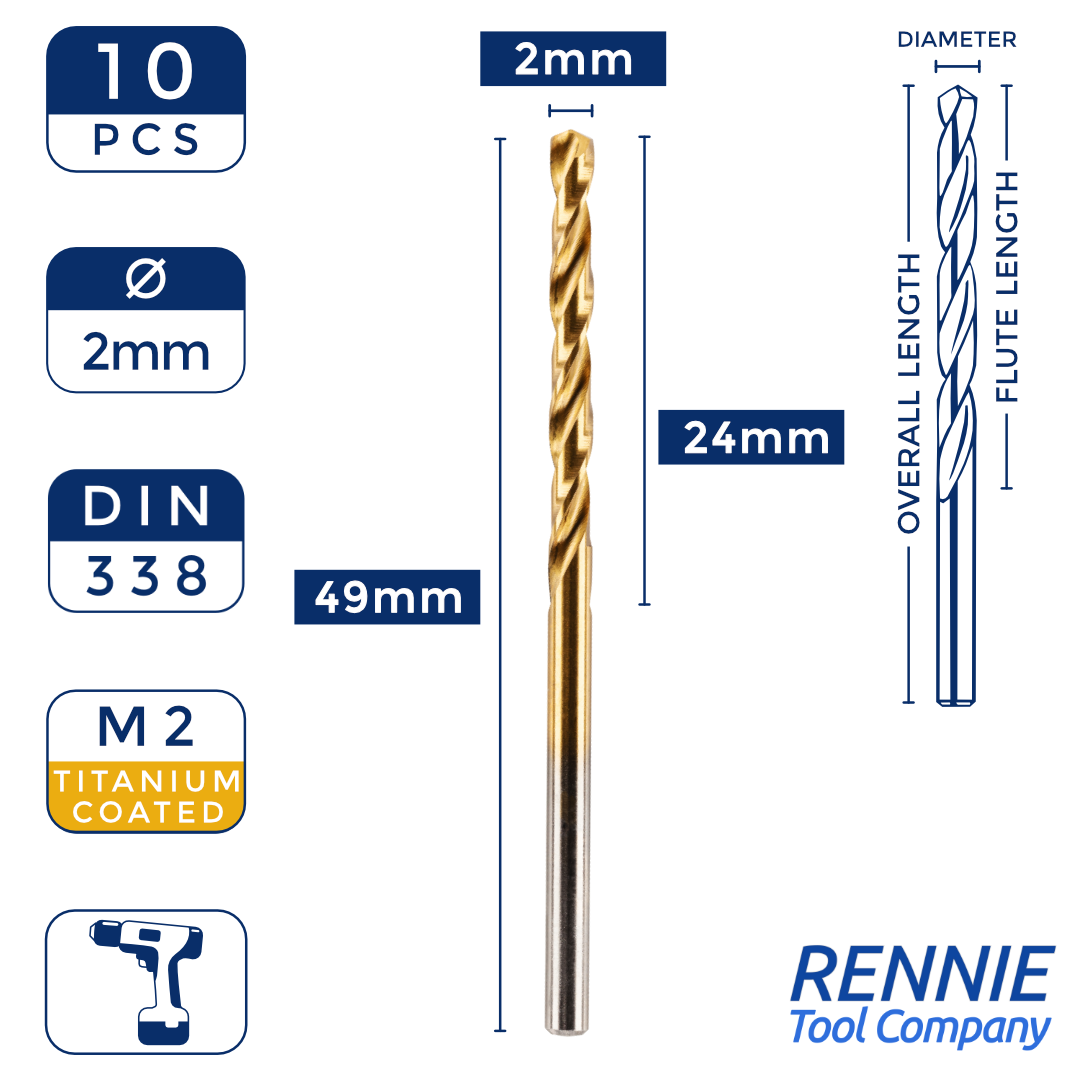

2mm | 24mm | 49mm |
2.1mm | 24mm | 49mm |
2.4mm | 30mm | 57mm |
2.5mm | 30mm | 57mm |
2.8mm | 33mm | 61mm |
3mm | 33mm | 61mm |
3.2mm | 36mm | 65mm |
3.3mm | 36mm | 65mm |

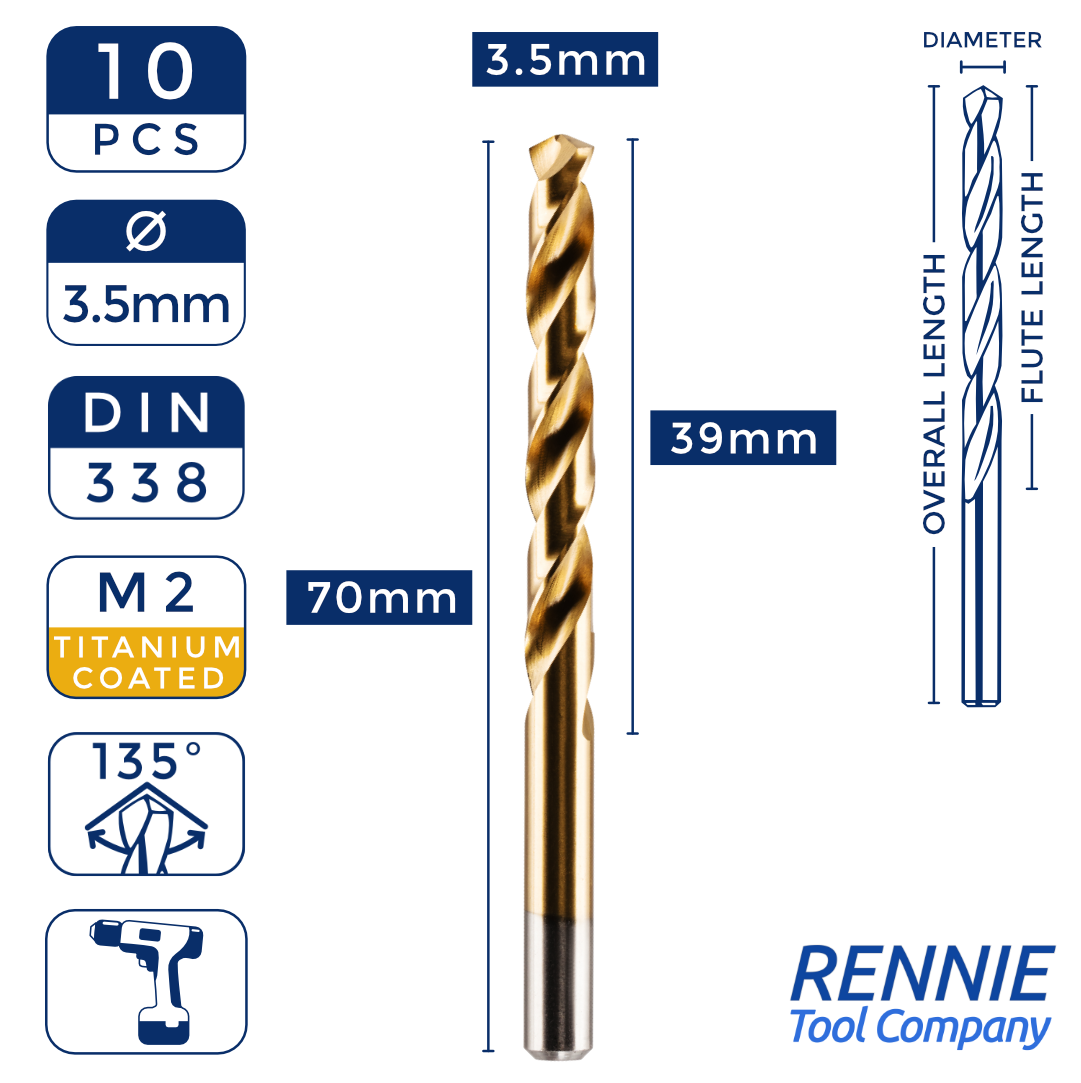

3.5mm | 39mm | 70mm |

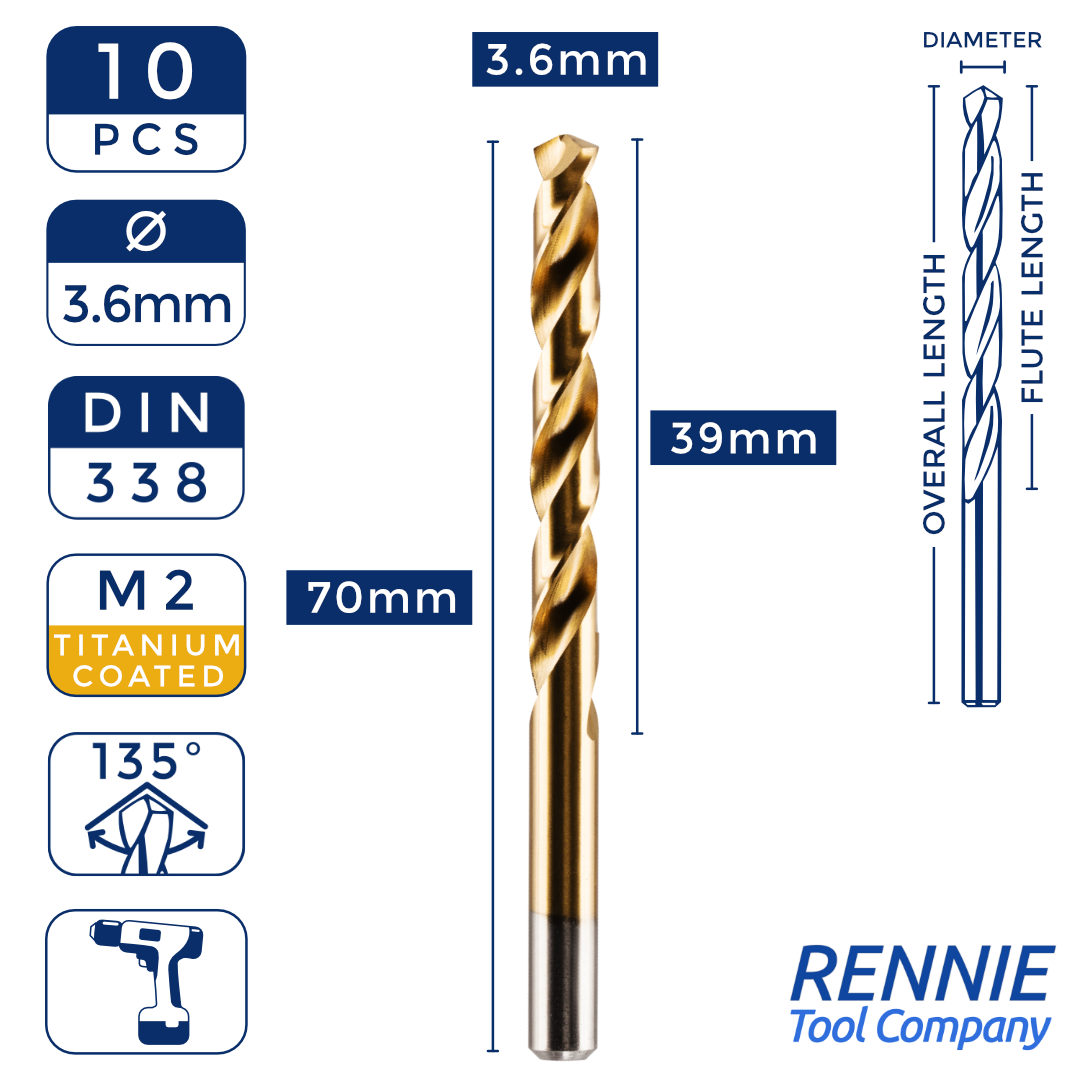

3.6mm | 39mm | 70mm |
4mm | 43mm | 75mm |
4.2mm | 43mm | 75mm |
4.4mm | 47mm | 80mm |
4.5mm | 47mm | 80mm |
4.8mm | 52mm | 86mm |
4.9mm | 52mm | 86mm |
5mm | 52mm | 86mm |
5.2mm | 52mm | 86mm |
5.5mm | 57mm | 93mm |
5.6mm | 57mm | 93mm |
6mm | 57mm | 93mm |
6.4mm | 63mm | 101mm |
6.5mm | 63mm | 101mm |
6.8mm | 69mm | 109mm |
7mm | 69mm | 109mm |
7.1mm | 69mm | 109mm |
7.5mm | 69mm | 109mm |
7.9mm | 75mm | 117mm |

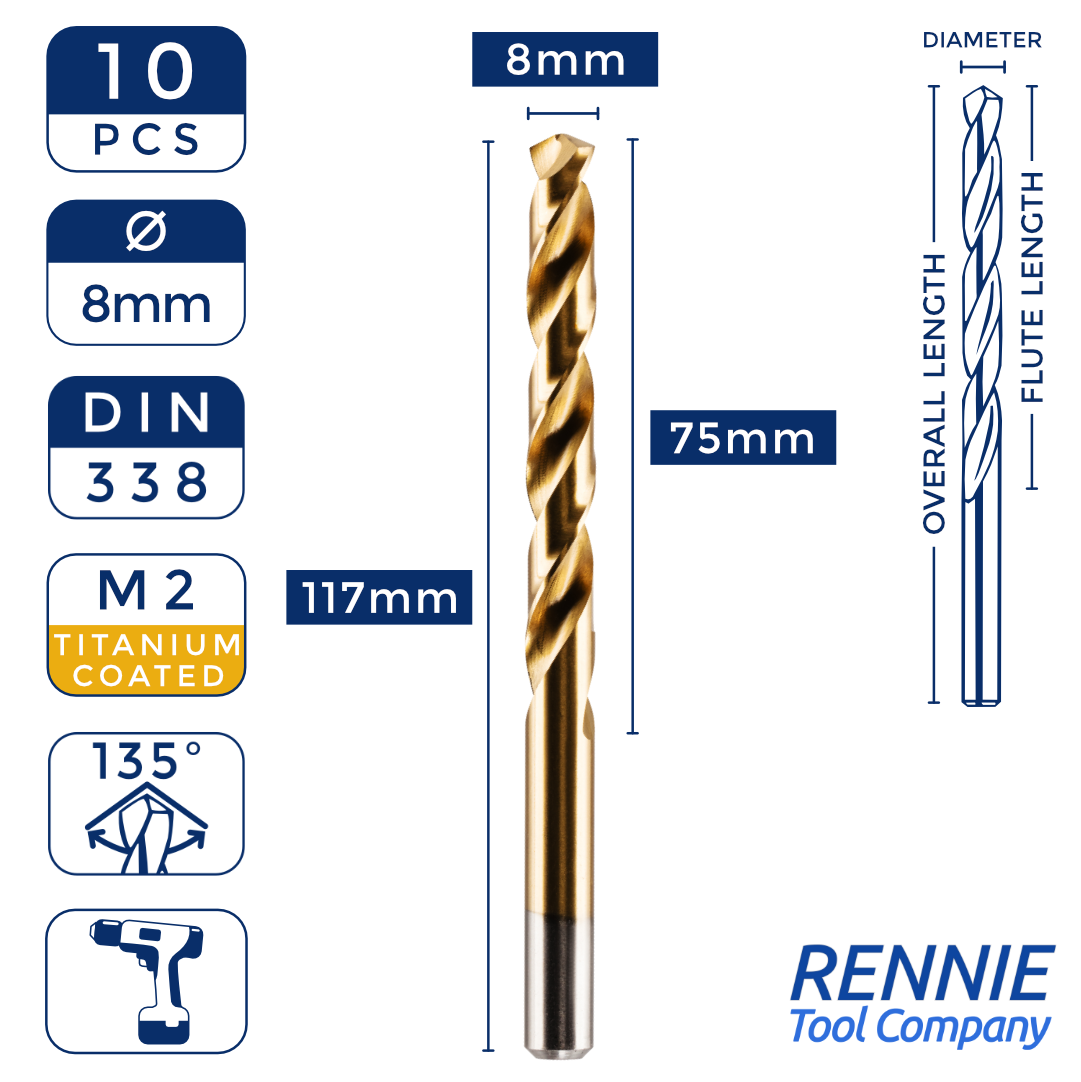

8mm | 75mm | 117mm |
8.3mm | 75mm | 117mm |
8.5mm | 75mm | 117mm |
8.7mm | 81mm | 125mm |
9mm | 81mm | 125mm |
9.1mm | 81mm | 125mm |
9.5mm | 81mm | 125mm |
10mm | 87mm | 133mm |
10.2mm | 87mm | 133mm |
10.5mm | 87mm | 133mm |

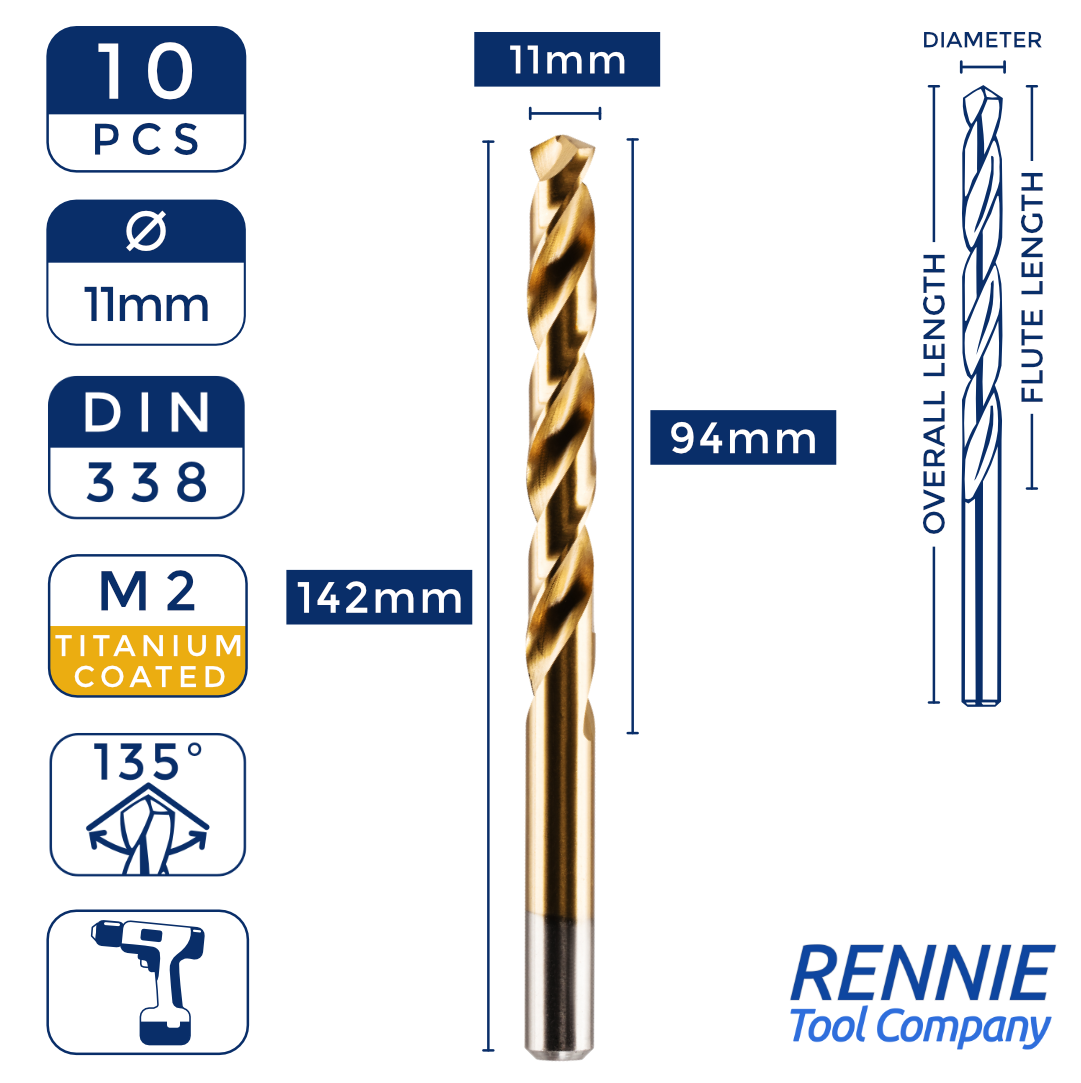

11mm | 94mm | 142mm |
11.1mm | 94mm | 142mm |
11.5mm | 94mm | 142mm |
12mm | 101mm | 151mm |
12.5mm | 101mm | 151mm |
12.7mm | 101mm | 151mm |
13mm | 101mm | 151mm |
