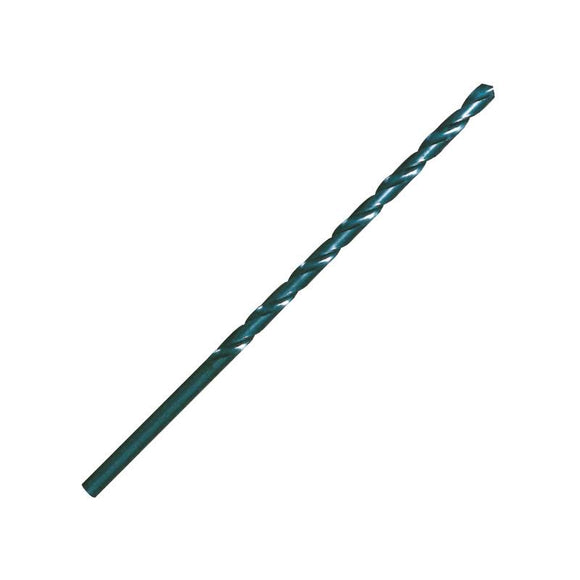

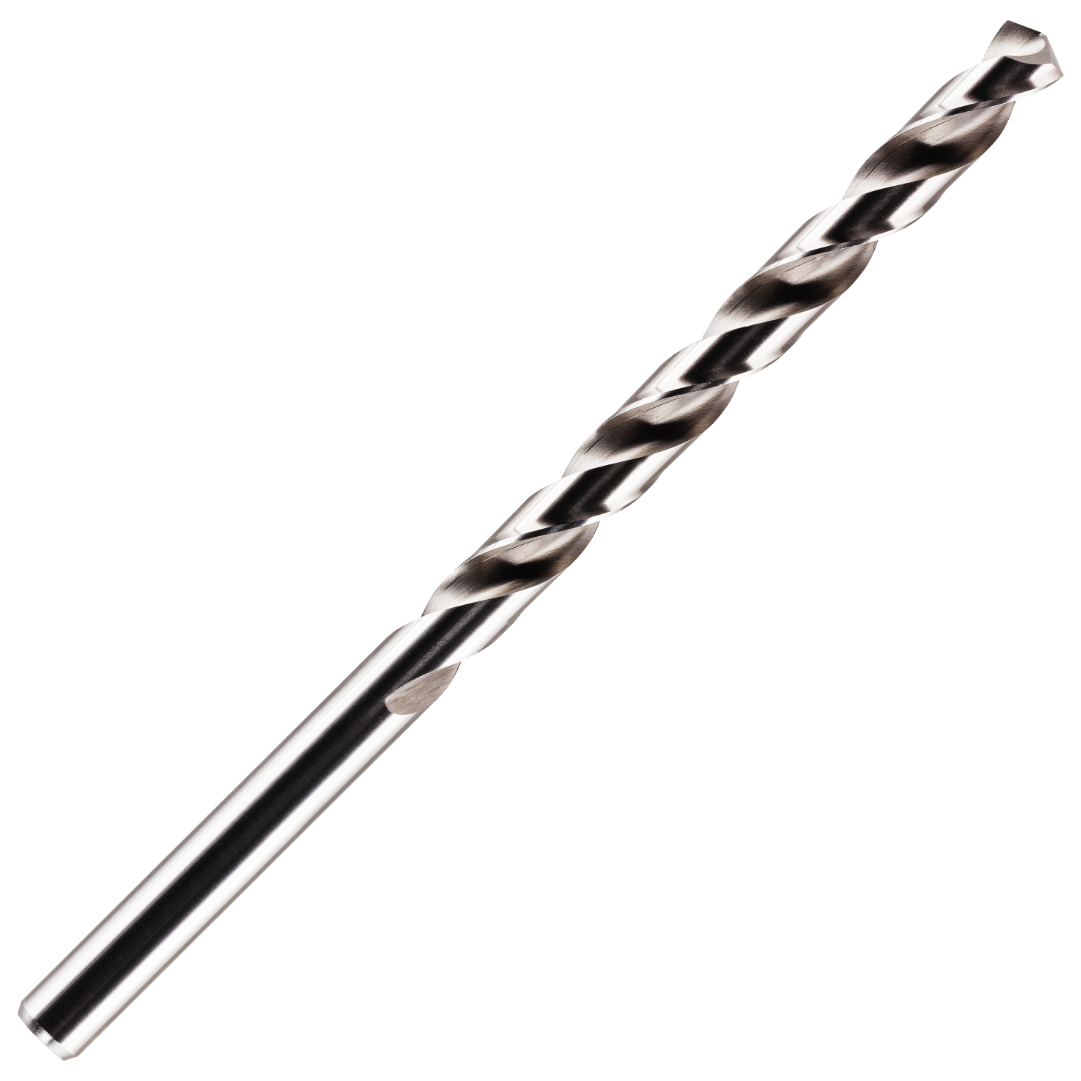

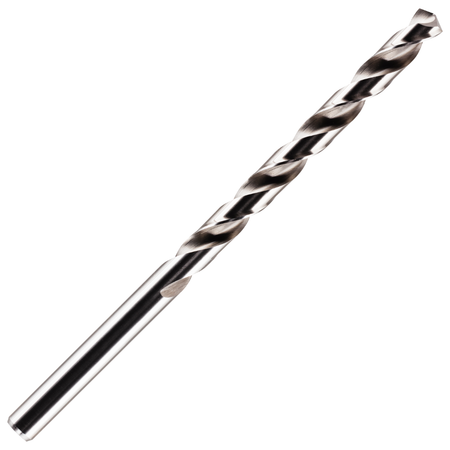

1 x HSS Ground Long Series Jobber Drill Bit Fully Ground

1 x HSS Ground Long Series Jobber Drill Bit Fully Ground

  • £3.99
Shipping calculated at checkout.

Only 45 left!

 HSS Long Series Fully Ground Drills
  • Drills in steel, high tensile steel up to 1.000N/mm2, cast steel, cast iron, metals and hard plastics.
  • Fully ground from solid material
  • Blue oxide surface treatment

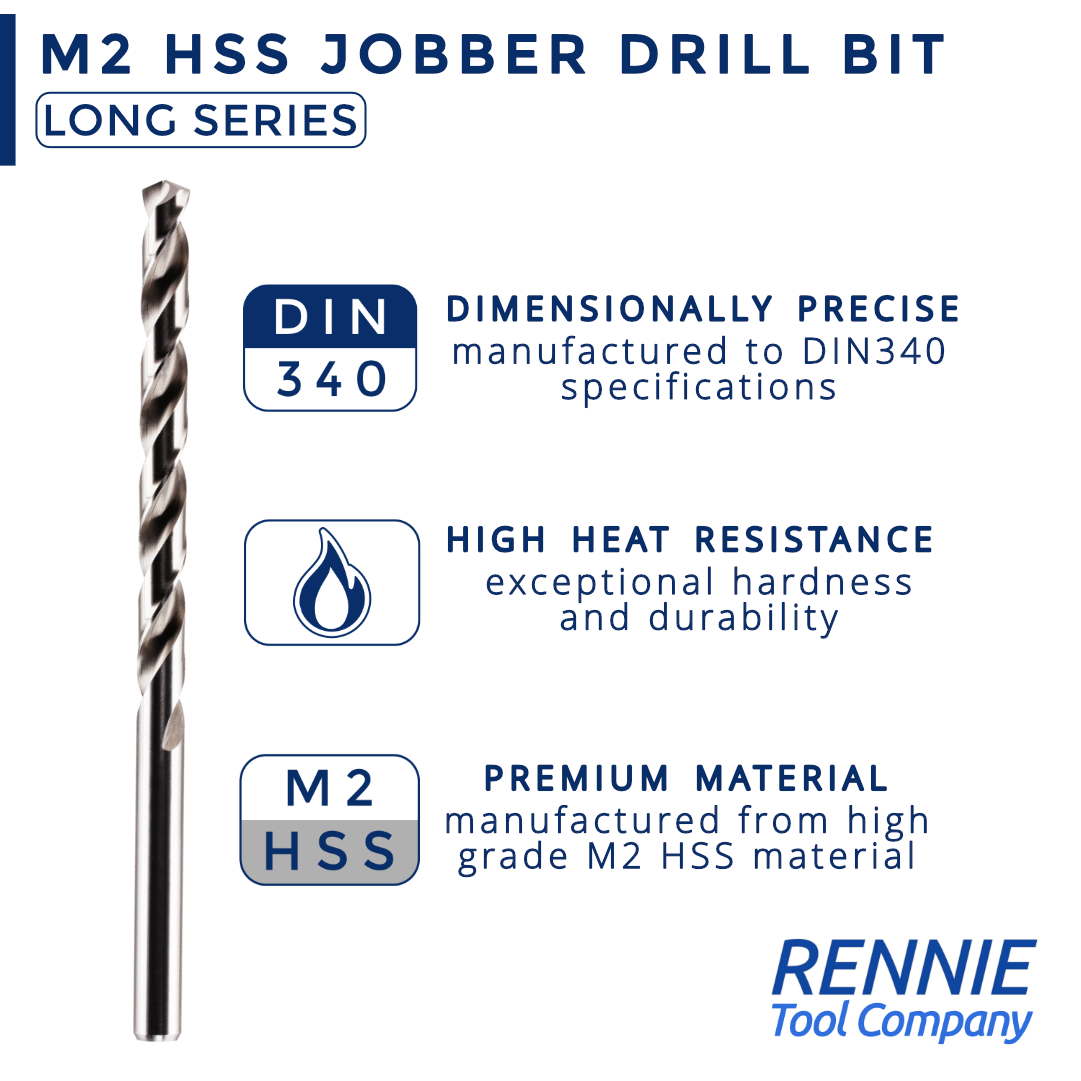

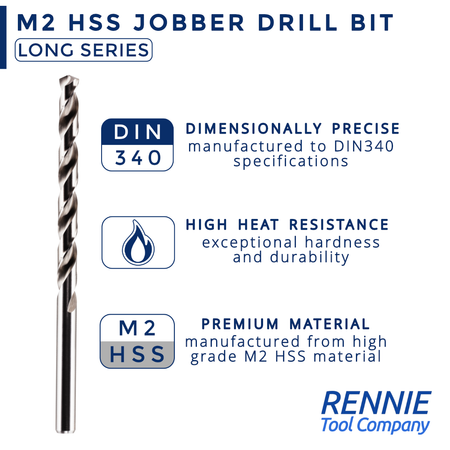

  • Manufactured to DIN340
  • Dimensionally precise

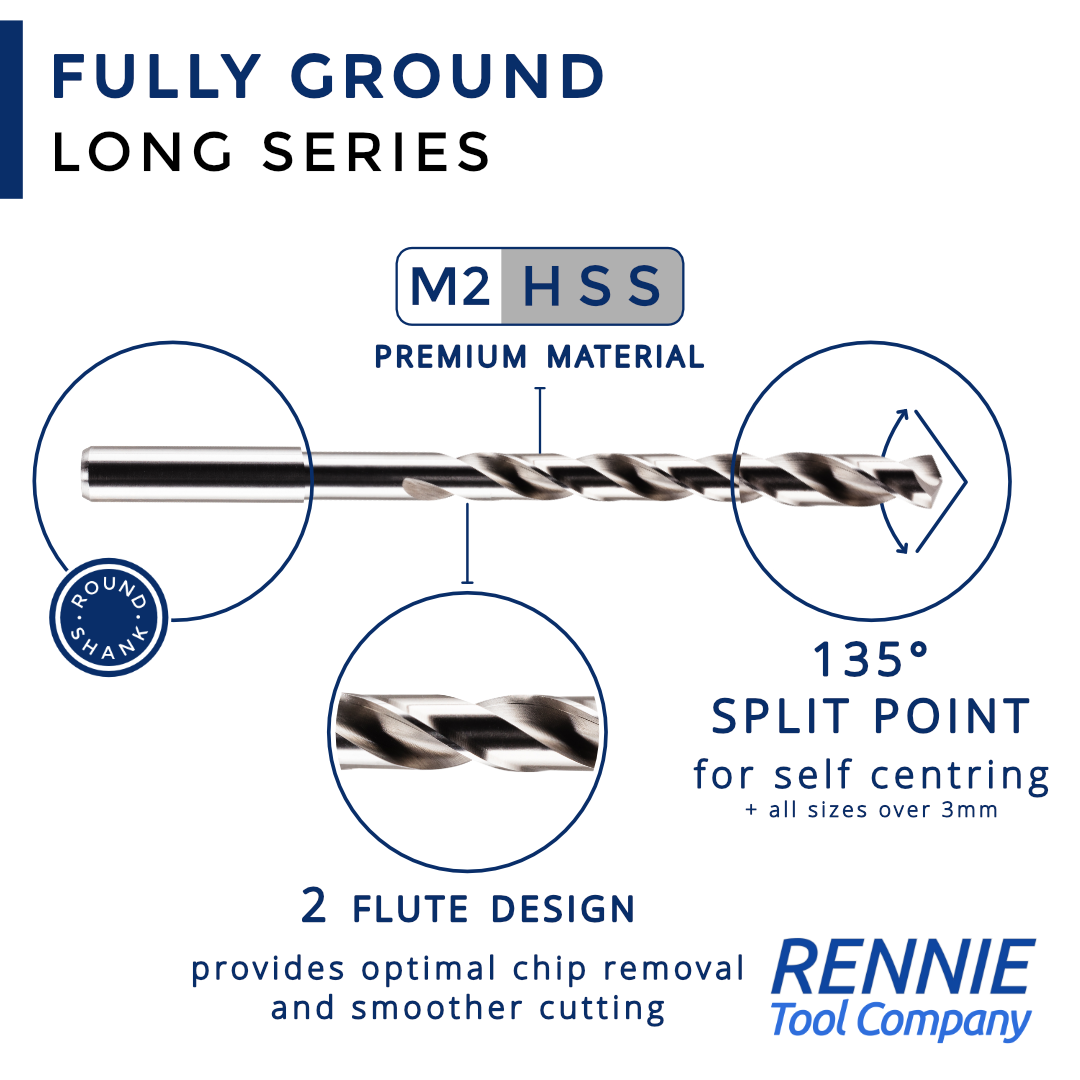

  • 135° split point from 3mm and above eradicates the need to pre-drill or centre punch. Prevents walking and enables faster penetration
  • Sizes available from 1.0mm - 14.0mm & 1/16" - 1/2"
Dimensions
Drill Diameter Flute Length Overall Length
1mm 33mm 56mm

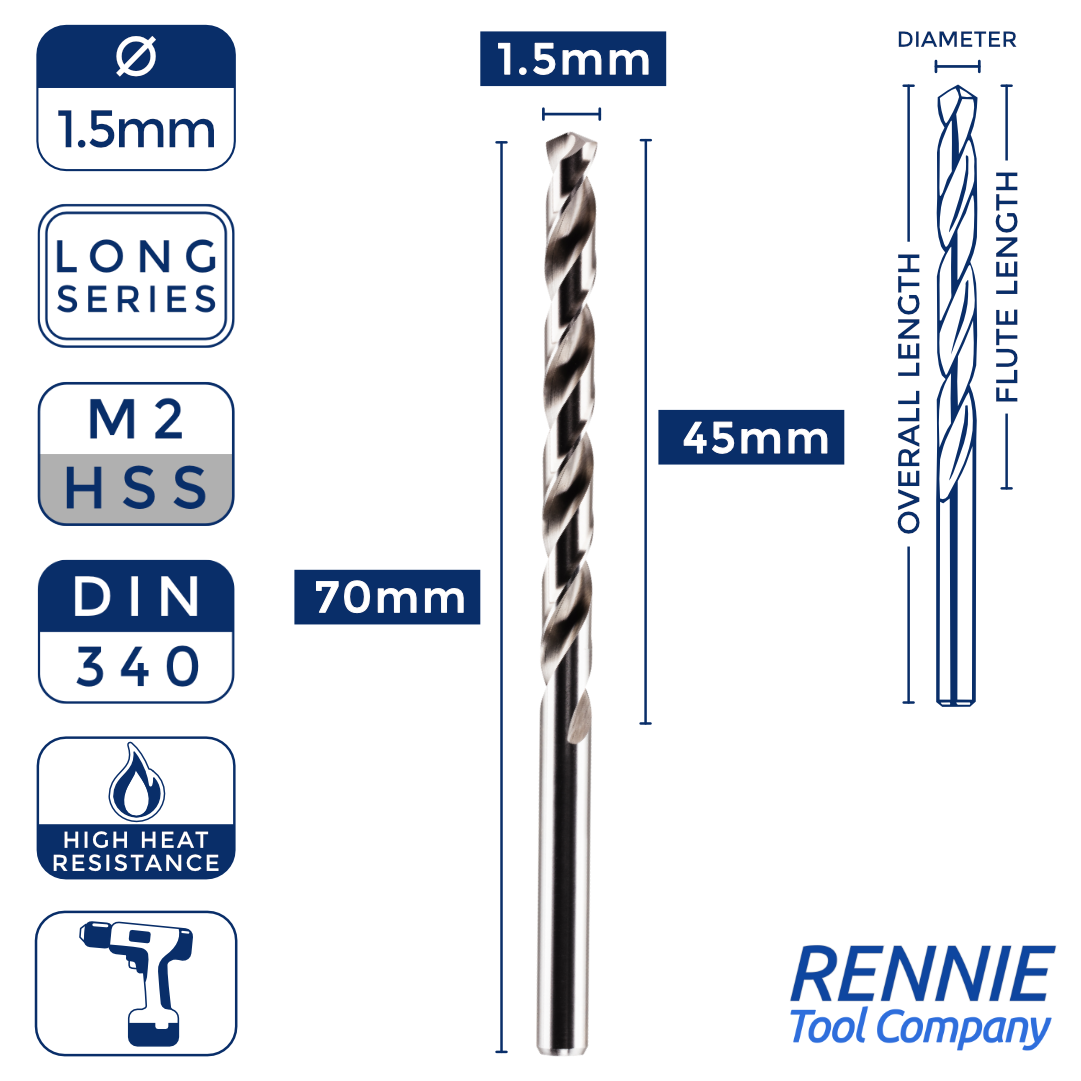

1.5mm 45mm 70mm

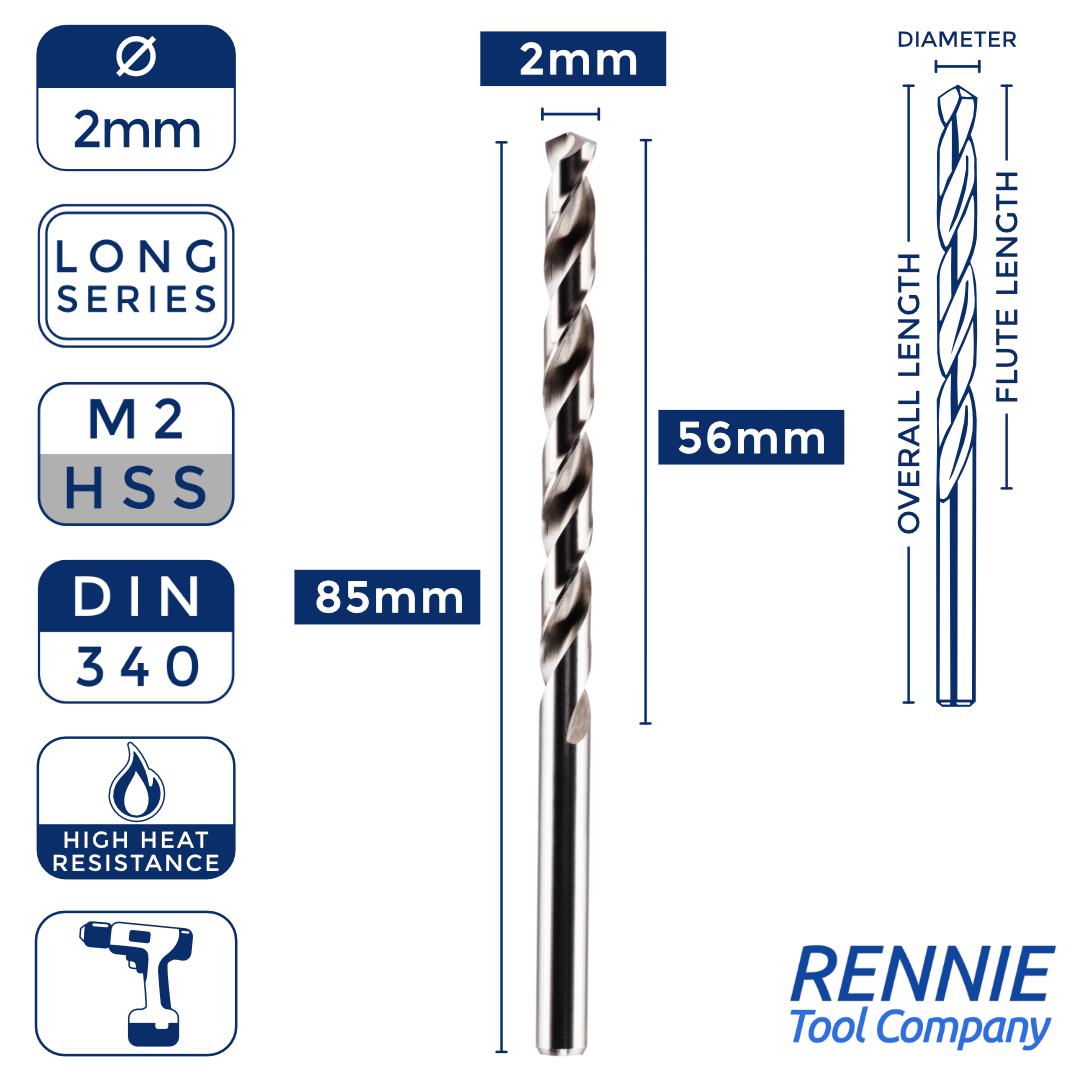

2mm 56mm 85mm

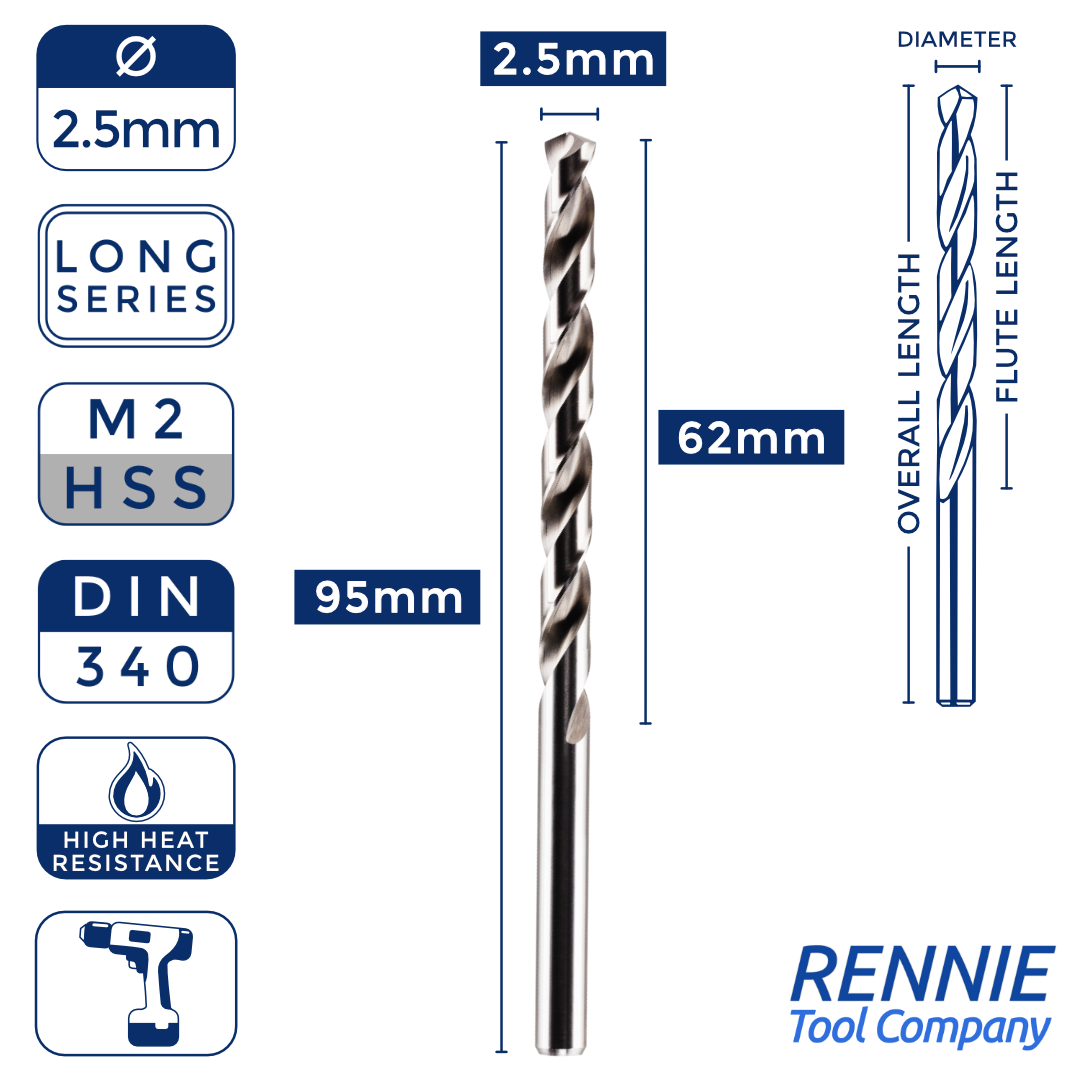

2.5mm 62mm 95mm

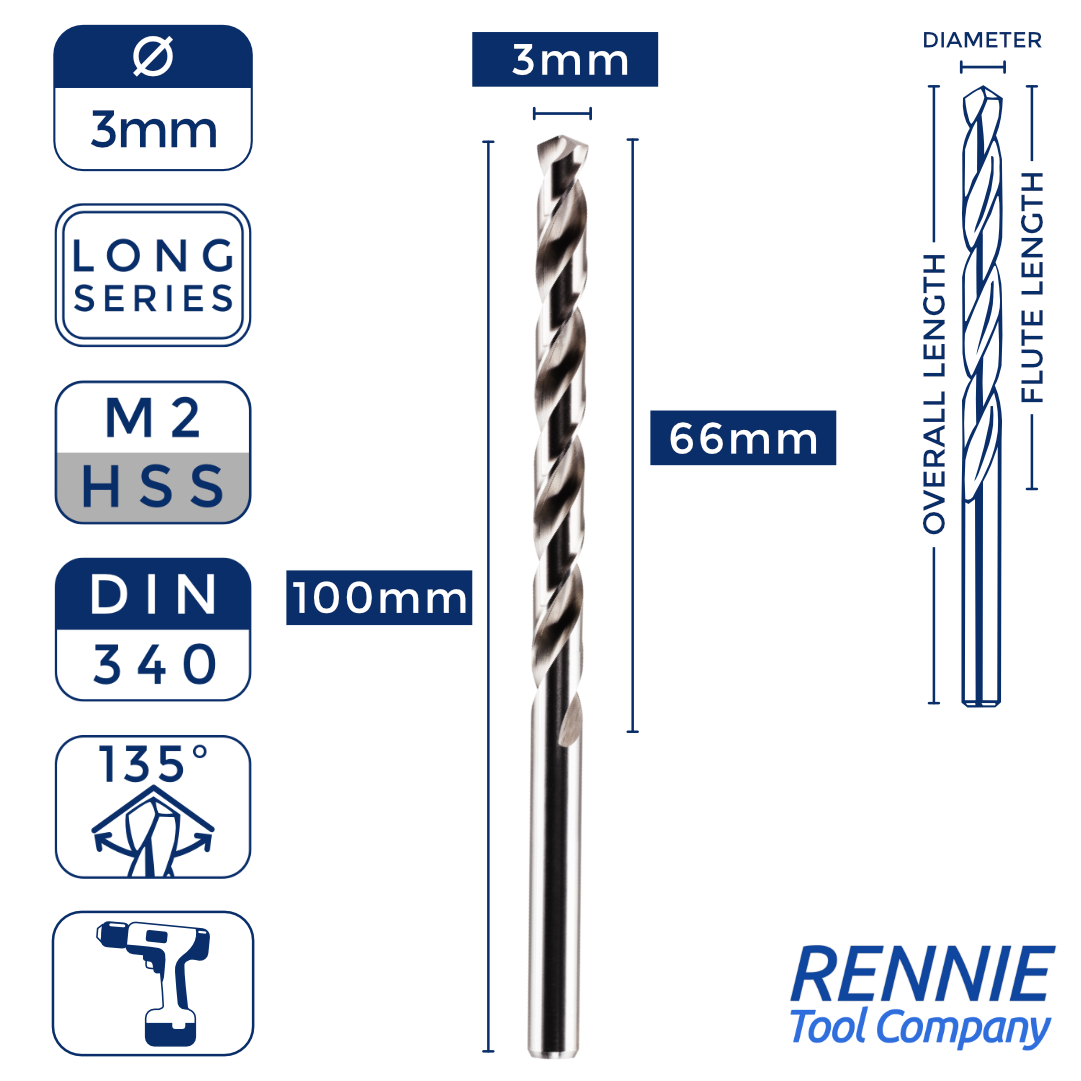

3mm 66mm 100mm
3.2mm 69mm 106mm
3.3mm 69mm 106mm
3.5mm 73mm 112mm
4mm 78mm 119mm
4.2mm 78mm 119mm

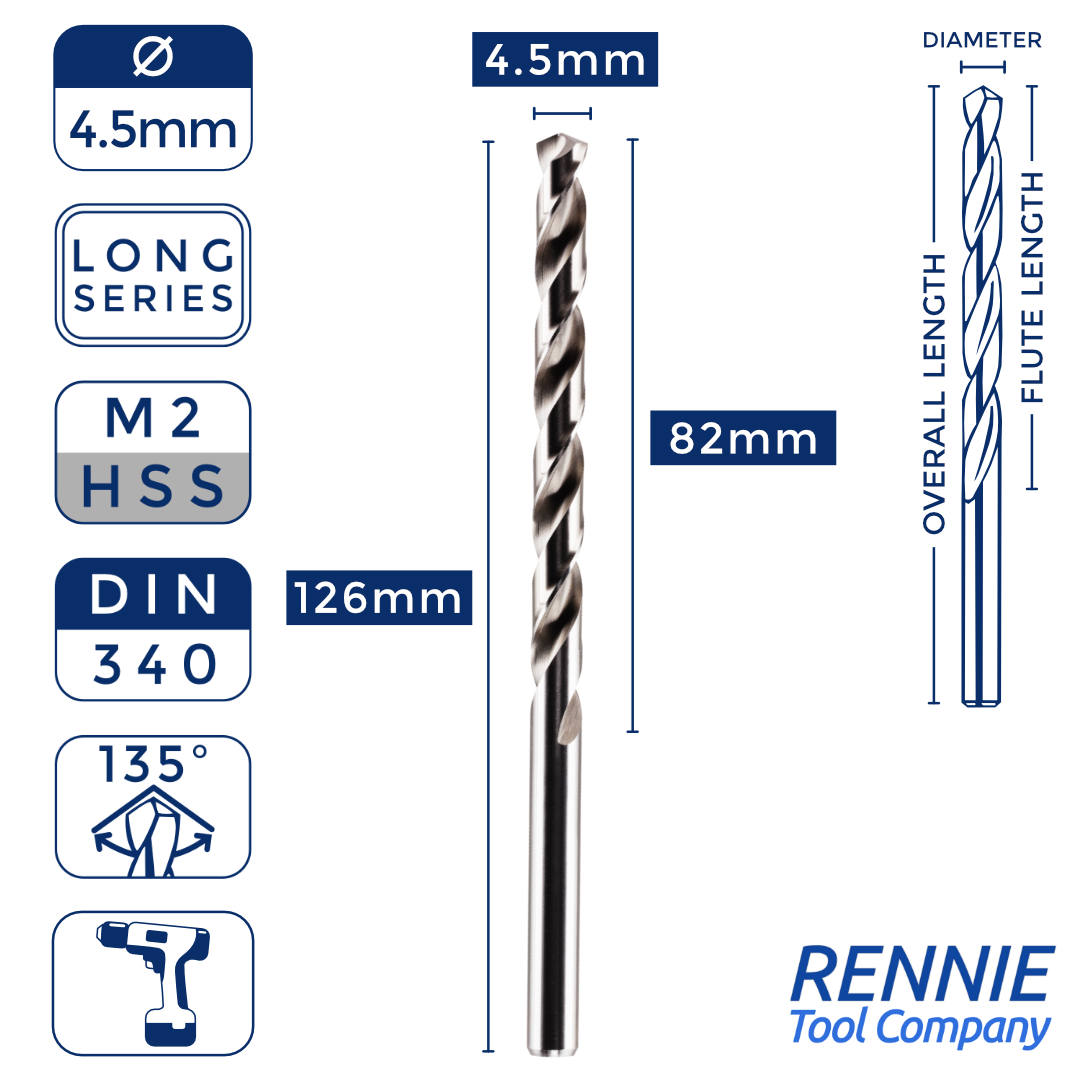

4.5mm 82mm 126mm
4.8mm 87mm 126mm
5mm 87mm 132mm
5.1mm 87mm 132mm
5.5mm 91mm 139mm
6mm 91mm 139mm
6.5mm 97mm 148mm
6.8mm 102mm 156mm
7mm 102mm 156mm
7.5mm 109mm 156mm
8mm 109mm 165mm
8.5mm 109mm 165mm
9mm 115mm 175mm
9.5mm 115mm 175mm
10mm 121mm 184mm
10.2mm 121mm 184mm
10.5mm 121mm 184mm
11mm 128mm 195mm
11.5mm 128mm 195mm
12mm 134mm 205mm
12.5mm 134mm 205mm
13mm 134mm 205mm
13.5mm 140mm 214mm
14mm 140mm 214mm
1/16" 50mm 76mm
3/32"  62mm 95mm
7/64" 66mm 100mm
1/8" 69mm 106mm
5/32" 78mm 119mm
3/16" 87mm 126mm
13/64" 87mm 132mm
7/32" 91mm 139mm
1/4" 97mm 148mm
17/64" 102mm 156mm
5/16" 109mm 165mm
3/8" 121mm 184mm
7/16" 128mm 195mm
1/2" 134mm 205mm
