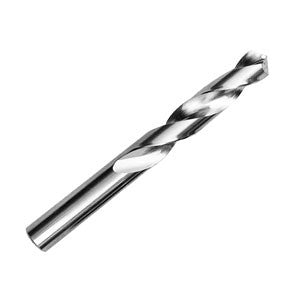

1 x Solid Carbide Stub Drill Bit
Regular price
£7.19
Couldn't load pickup availability
Same Day Despatch - Mon To Fri
On All Orders Ordered Before 3pm
Solid Carbide Stub Drills
Ideal for drilling steel, cast steel, cast iron, titanium, nickel alloy and aluminium
Micrograin carbide
Sizes available from 1.0mm - 13.0mm
Dimensions
| Drill Diameter | Flute Length | Overall Length |
| 1mm | 12mm | 34mm |
| 1.5mm | 18mm | 38mm |
| 1.6mm | 20mm | 43mm |
| 2mm | 20mm | 38mm |
| 2.4mm | 20mm | 38mm |
| 2.5mm | 20mm | 40mm |
| 2.8mm | 18mm | 38mm |
| 3mm | 20mm | 38mm |
| 3.2mm | 20mm | 40mm |
| 3.3mm | 20mm | 42mm |
| 3.5mm | 20mm | 39mm |
| 3.6mm | 25mm | 38mm |
| 4mm | 20mm | 38mm |
| 4.2mm | 25mm | 47mm |
| 4.4mm | 25mm | 45mm |
| 4.5mm | 25mm | 25mm |
| 4.8mm | 25mm | 45mm |
| 4.9mm | 25mm | 45mm |
| 5mm | 20mm | 50mm |
| 5.2mm | 25mm | 50mm |
| 5.5mm | 25mm | 50mm |
| 5.6mm | 25mm | 50mm |
| 6mm | 27mm | 50mm |
| 6.4mm | 35mm | 55mm |
| 6.5mm | 28mm | 55mm |
| 6.8mm | 30mm | 55mm |
| 7mm | 30mm | 60mm |
| 7.1mm | 30mm | 60mm |
| 7.5mm | 30mm | 60mm |
| 7.9mm | 30mm | 60mm |
| 8mm | 30mm | 60mm |
| 8.3mm | 37mm | 65mm |
| 8.5mm | 37mm | 65mm |
| 8.7mm | 37mm | 65mm |
| 9mm | 37mm | 65mm |
| 9.1mm | 37mm | 65mm |
| 9.5mm | 37mm | 65mm |
| 10mm | 37mm | 65mm |
| 10.2mm | 37mm | 65mm |
| 10.5mm | 37mm | 65mm |
| 11mm | 37mm | 65mm |
| 11.1mm | 38mm | 70mm |
| 11.5mm | 38mm | 70mm |
| 12mm | 38mm | 70mm |
| 12.5mm | 38mm | 70mm |
| 12.7mm | 38mm | 75mm |
| 13mm | 38mm | 75mm |
