1/2" Diameter x 1/4" Shank x 90 Degree V-Groove Bit - For ACM, Dibond, Aluminium Folding etc

  • £14.83
Shipping calculated at checkout.

Only 31 left!

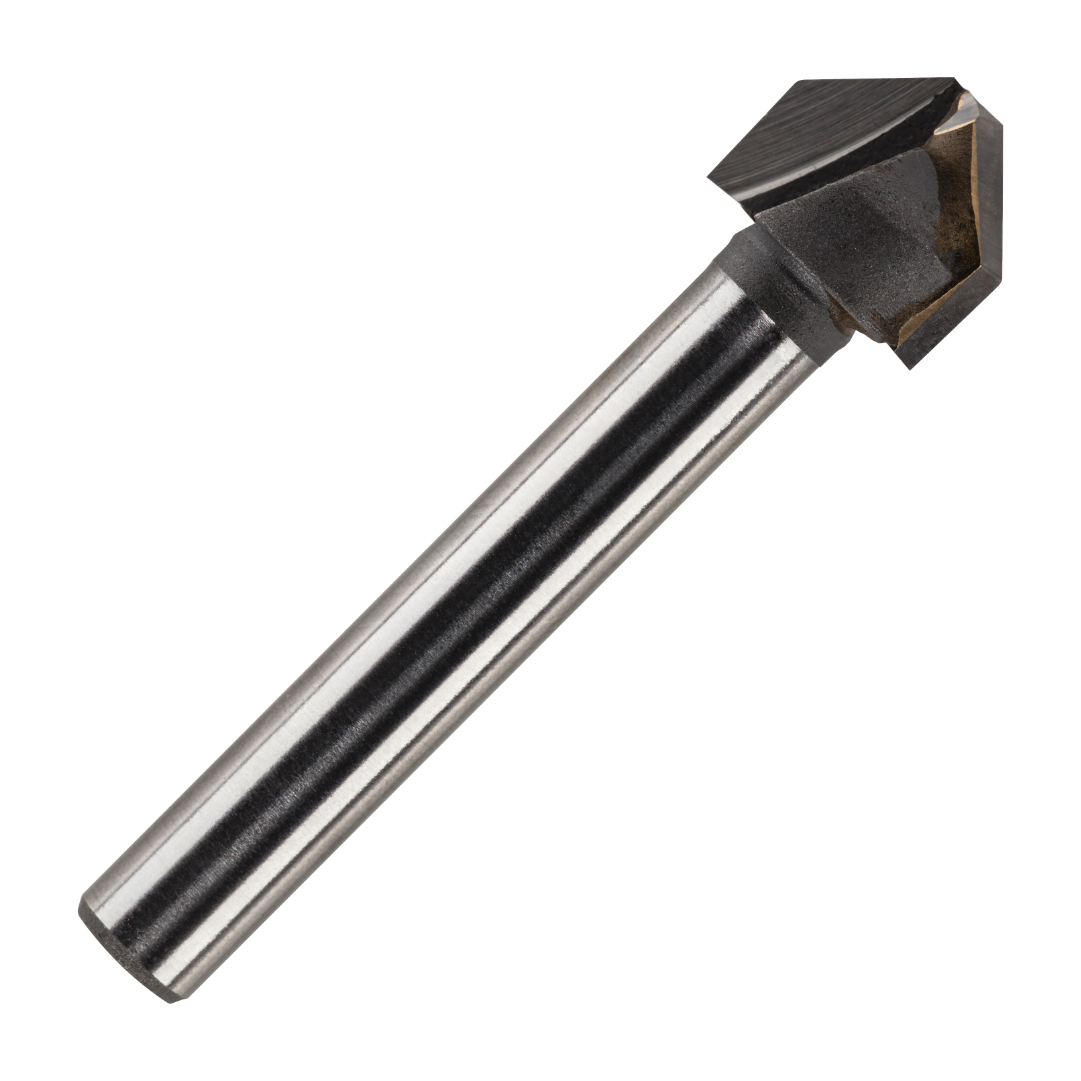

High quality 90 degree tungsten carbide tipped v bit

1/2" Cutting Diameter x 1/4" Shank x 90 Degree
Width across top - 2.28mm

Designed for shaping Aluminium Composite Materials (ACM) with 90° angle V-grooves. Routing V-shaped grooves, whereby the aluminium cover and a part of the polyethylene core is removed, allows folding / creasing the remaining material by hand. Ideal for wall panel fabrication.

ACM is widely used for cladding many diverse exterior and interior applications. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

For an optimal overview of all our end mills and the materials to be processed, please see the table on our website.

Designed for cutting and scoring aluminium sandwich materials including:

  • Acetate
  • Aluminium, Brass, Bronze, Clay, Zinc and Wood Composite Panels
  • Aluminium 5052
  • Aluminium Composite Materials (ACM)
  • Aluminium Composite Panel (ACP)
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Bakelite
  • Dibond®
  • Durabond
  • e-panelTM
  • Etalbond®
  • Nylon
  • PE and FR Cores
  • Phenolics
  • Plastic / Acrylic
  • Plexiglas®
  • PVC
  • Thermoplastic
  • Titanium Composite Material (TCM)
  • Wood

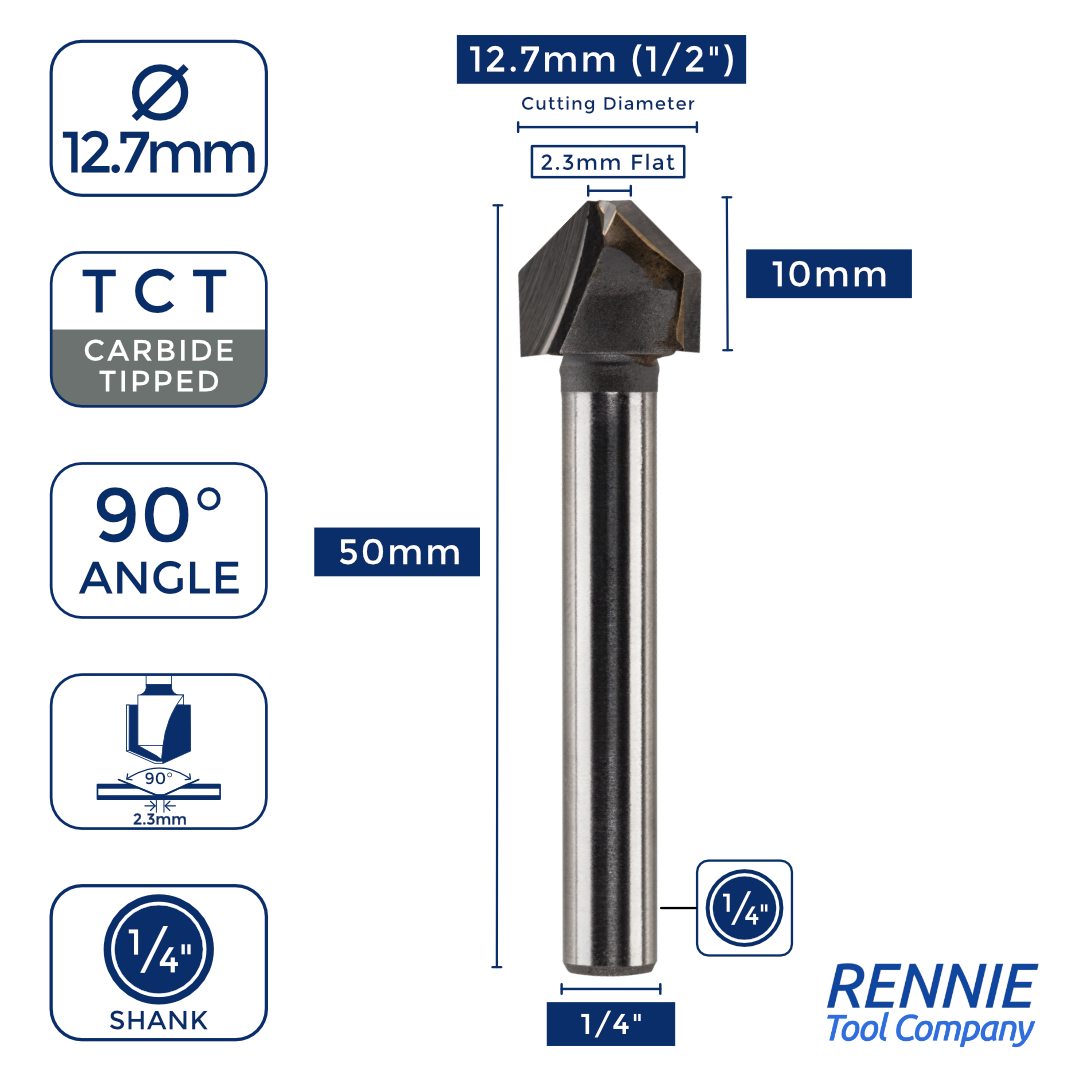

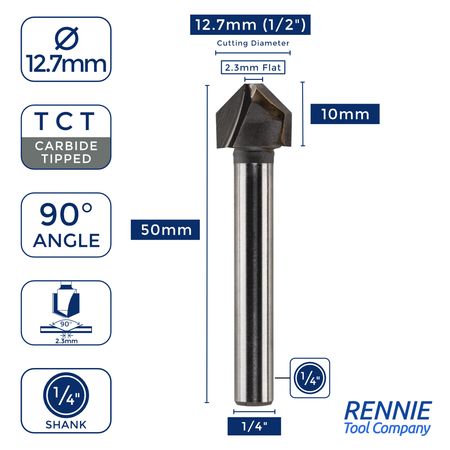

Technical Specifications:

  • Diameter Tip: 1/2" (12.7mm)
  • Angle: 90°
  • Shank: 1/4" (6.35mm) mm
  • Overall Length: 51 mm
  • Flutes: 2
  • Maximum RPM: 32000
