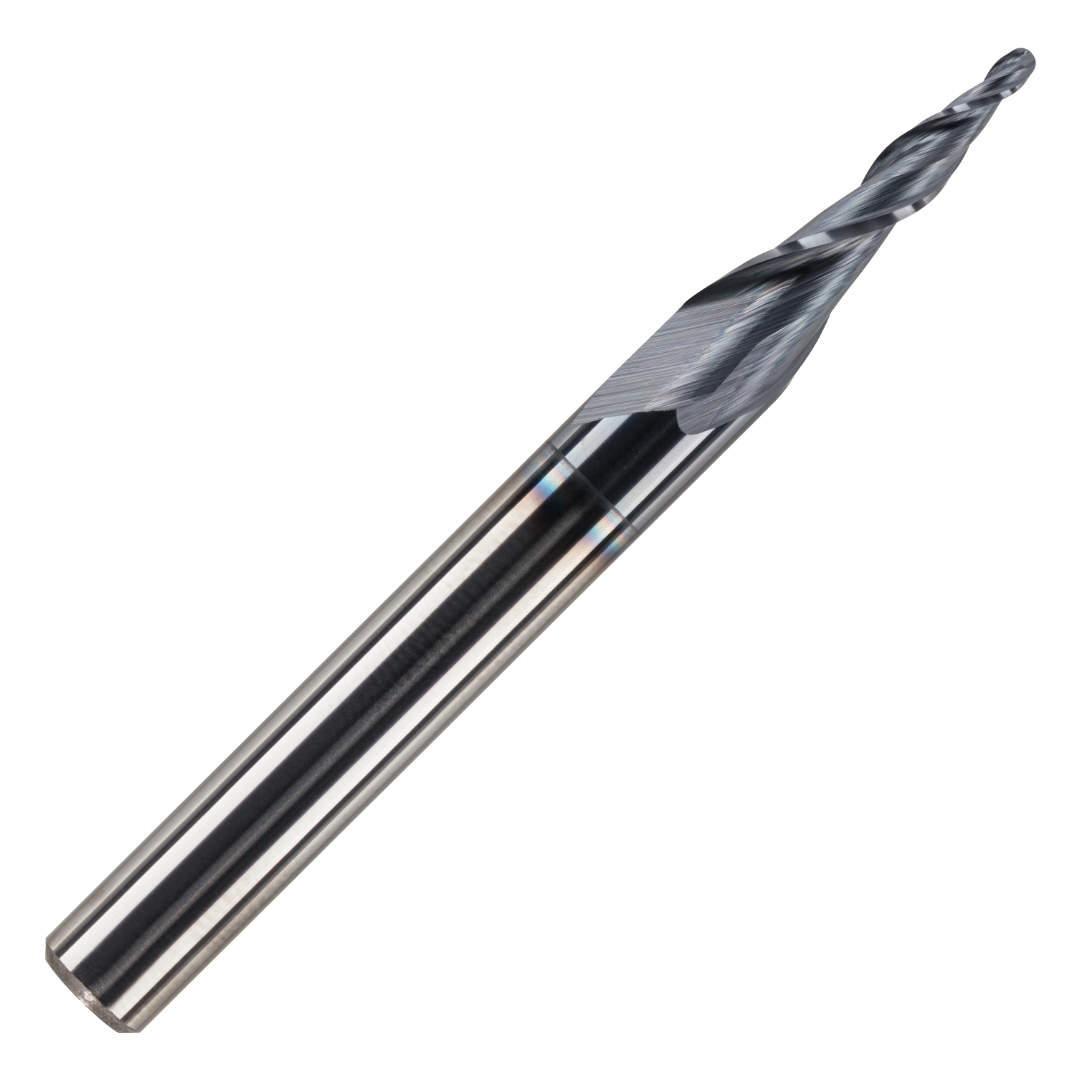

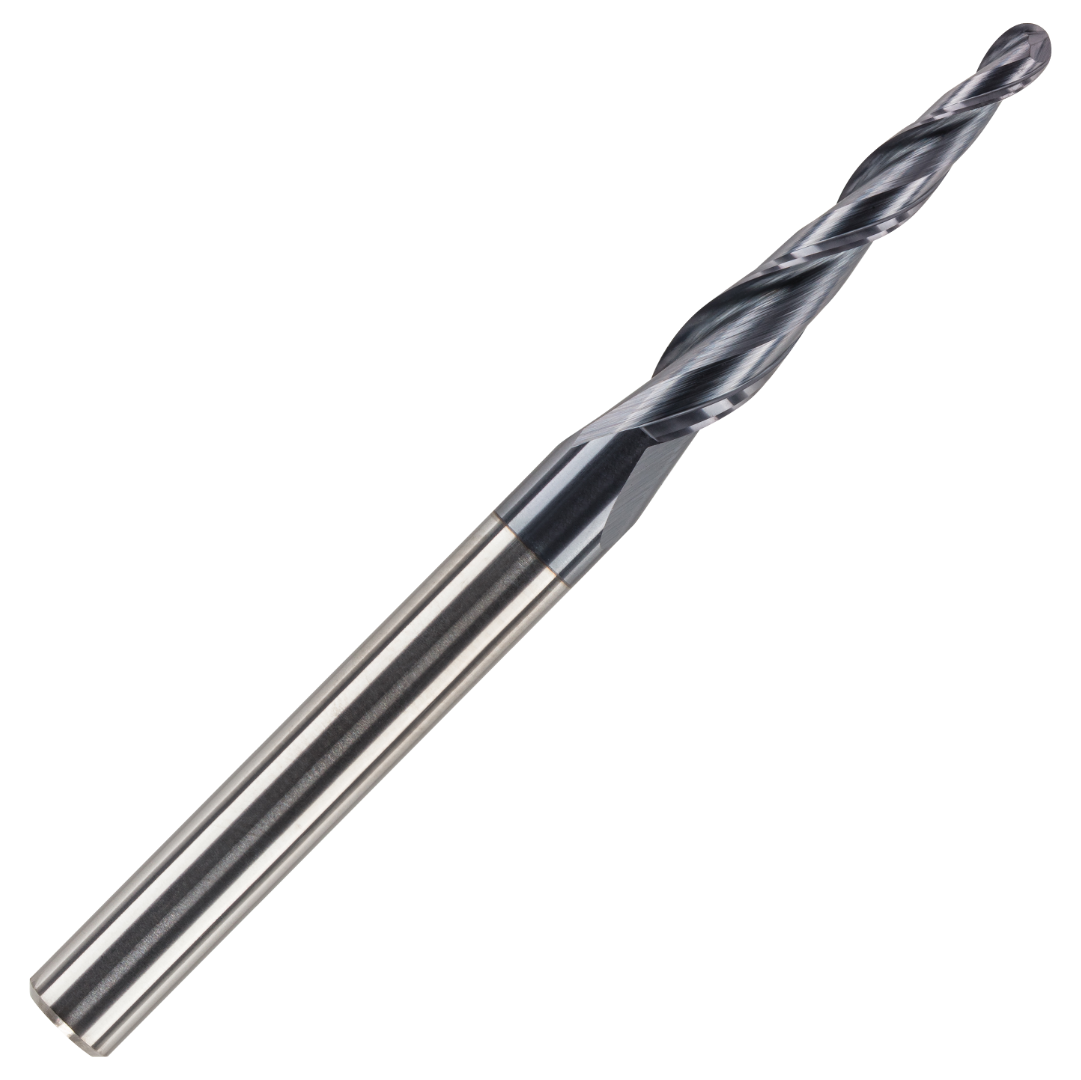

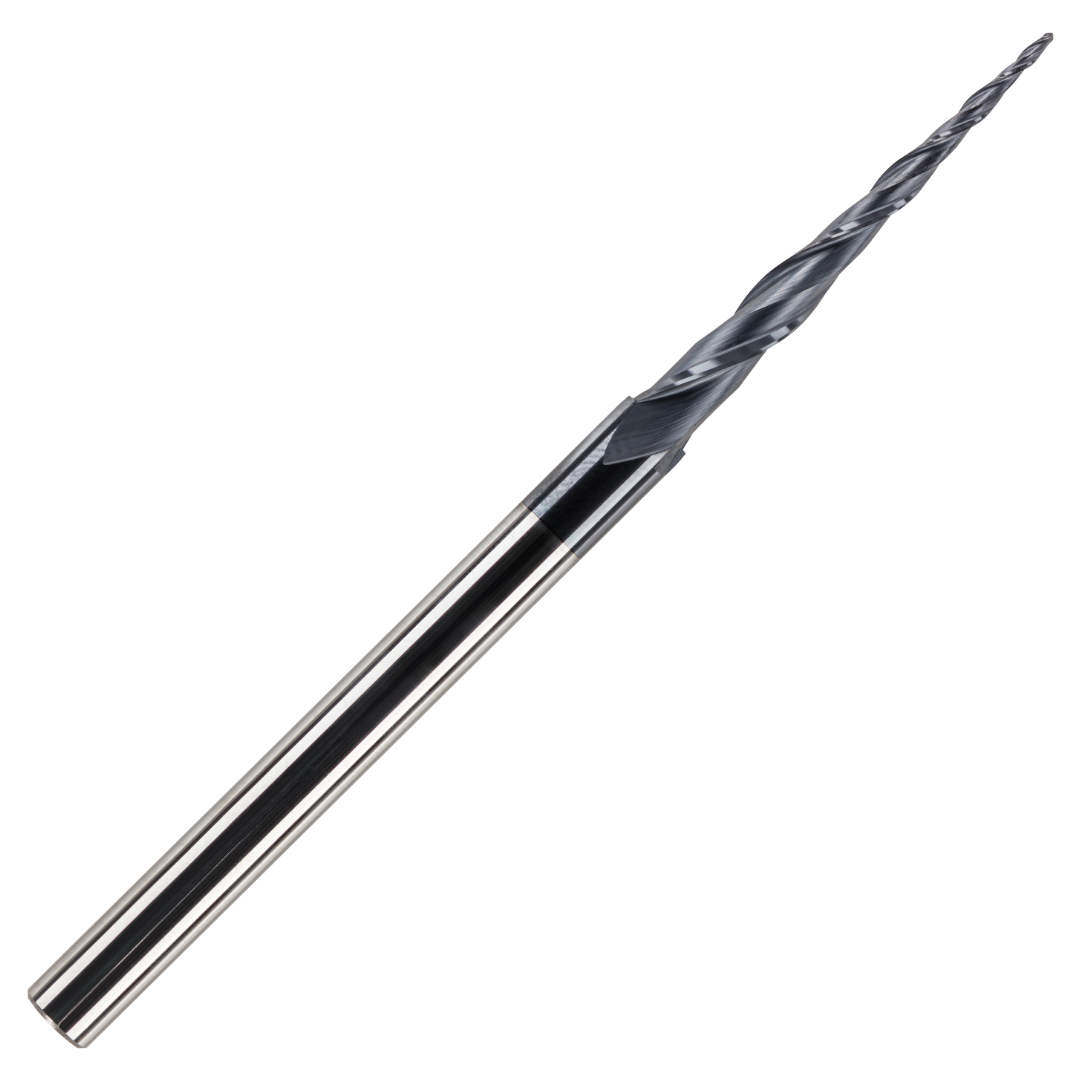

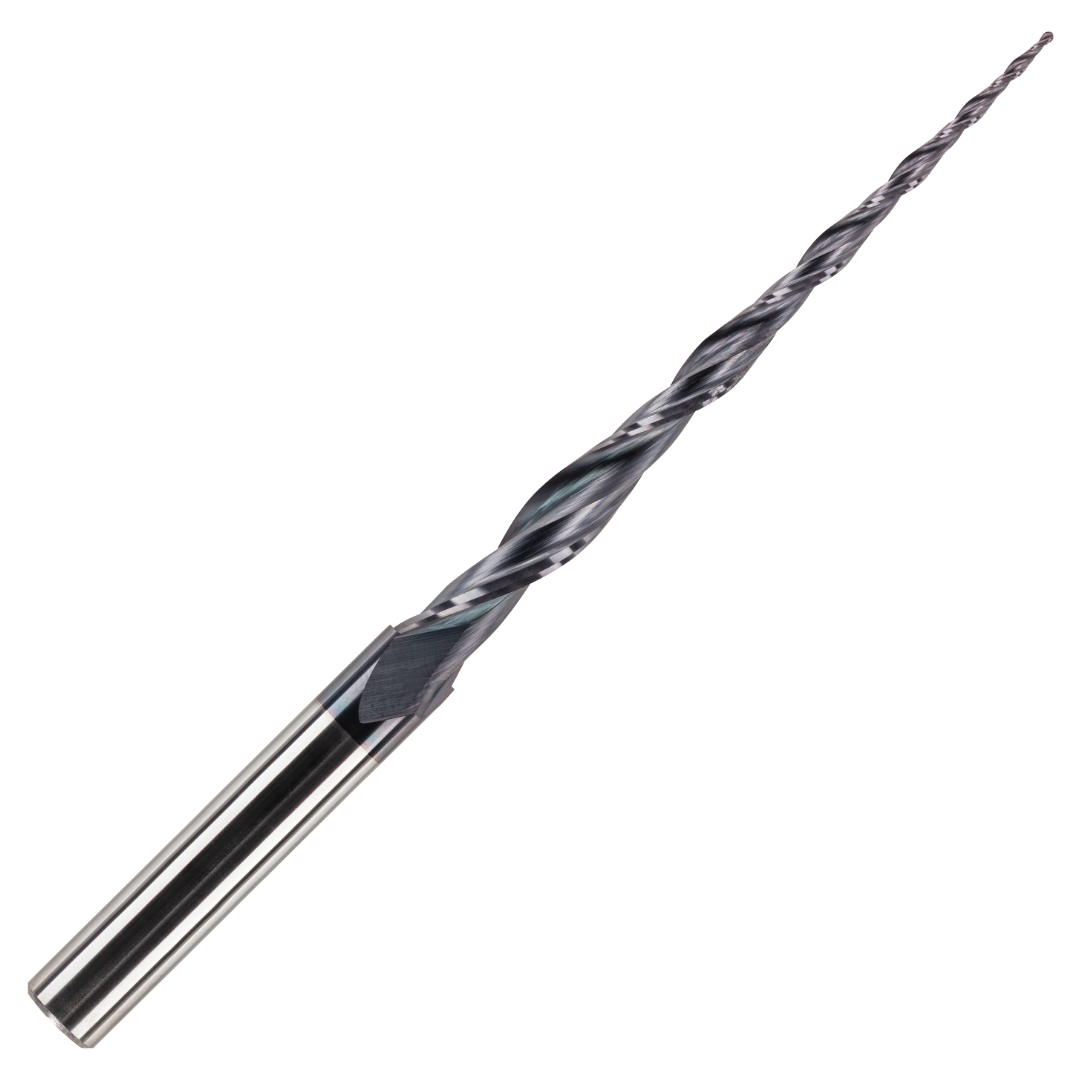

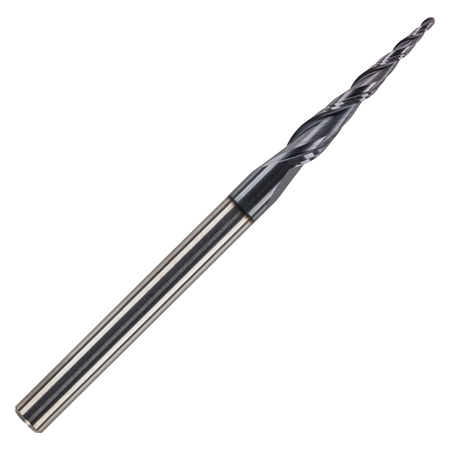

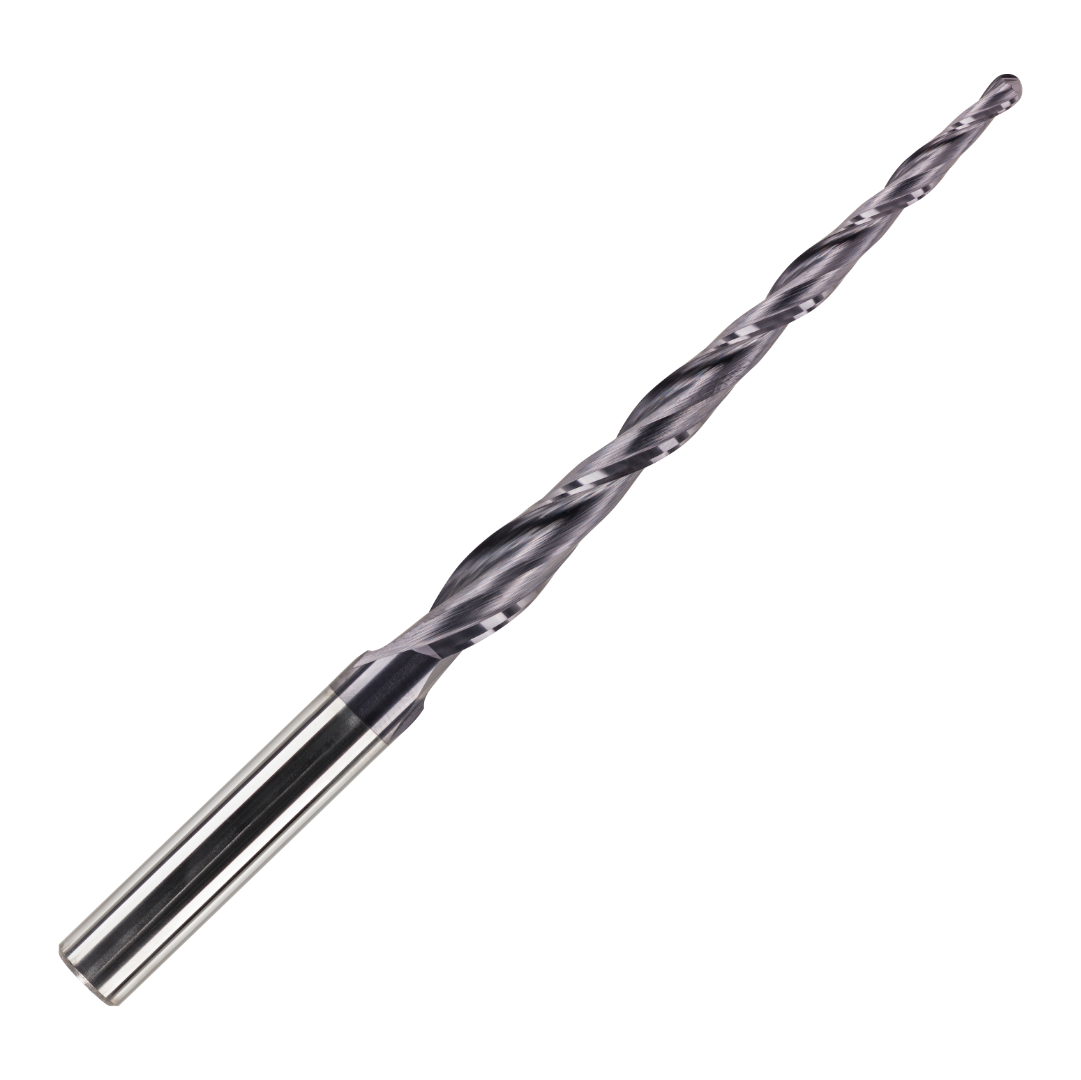

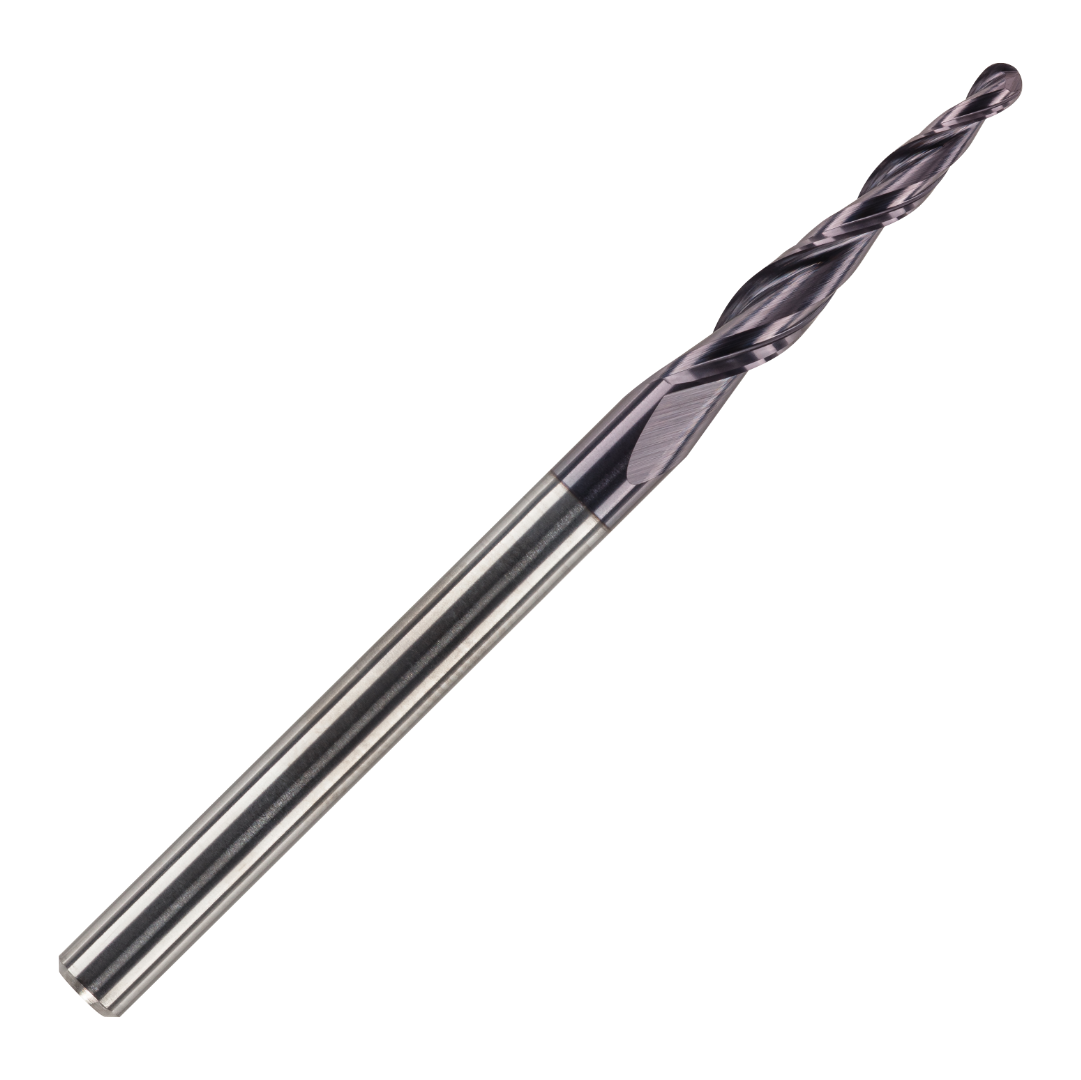

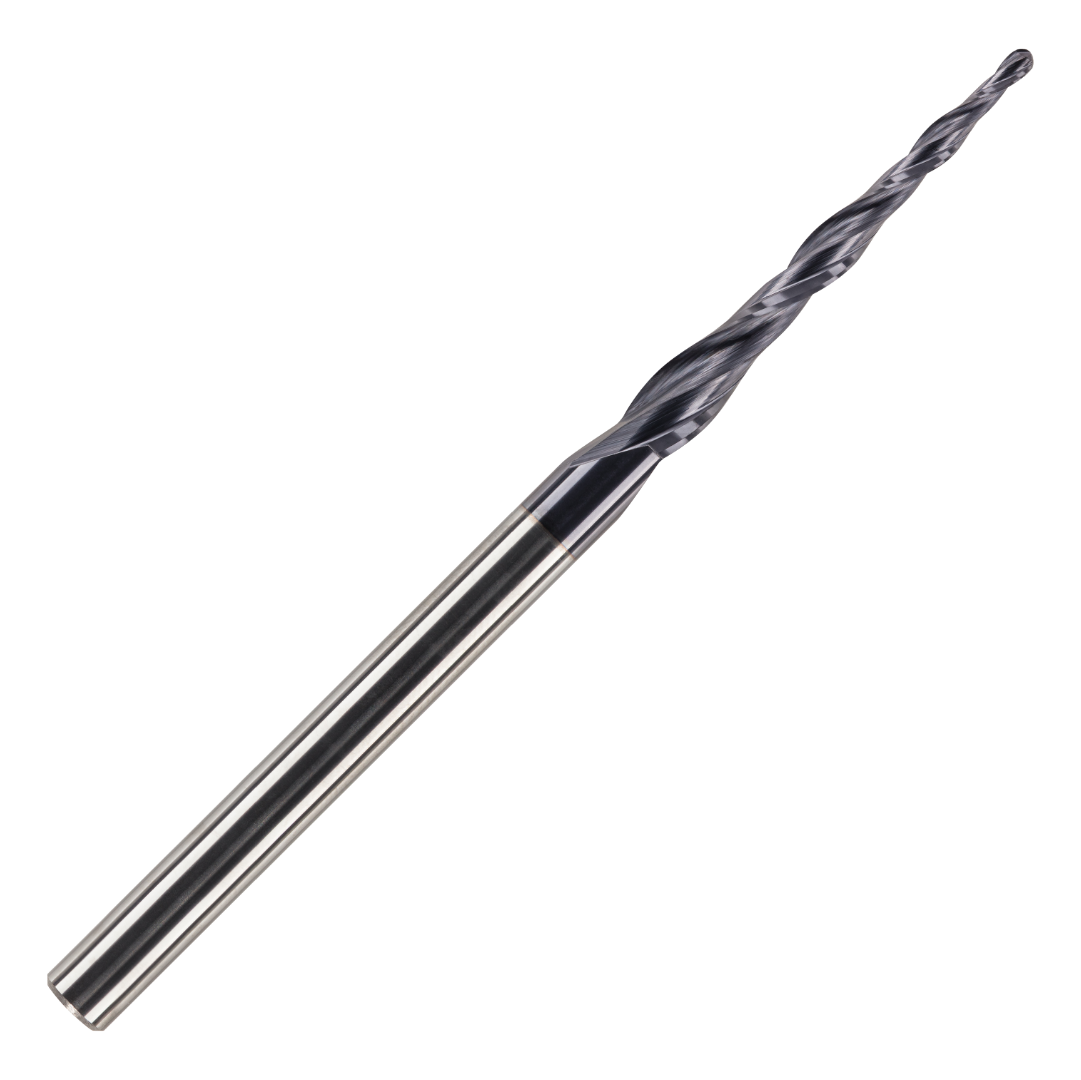

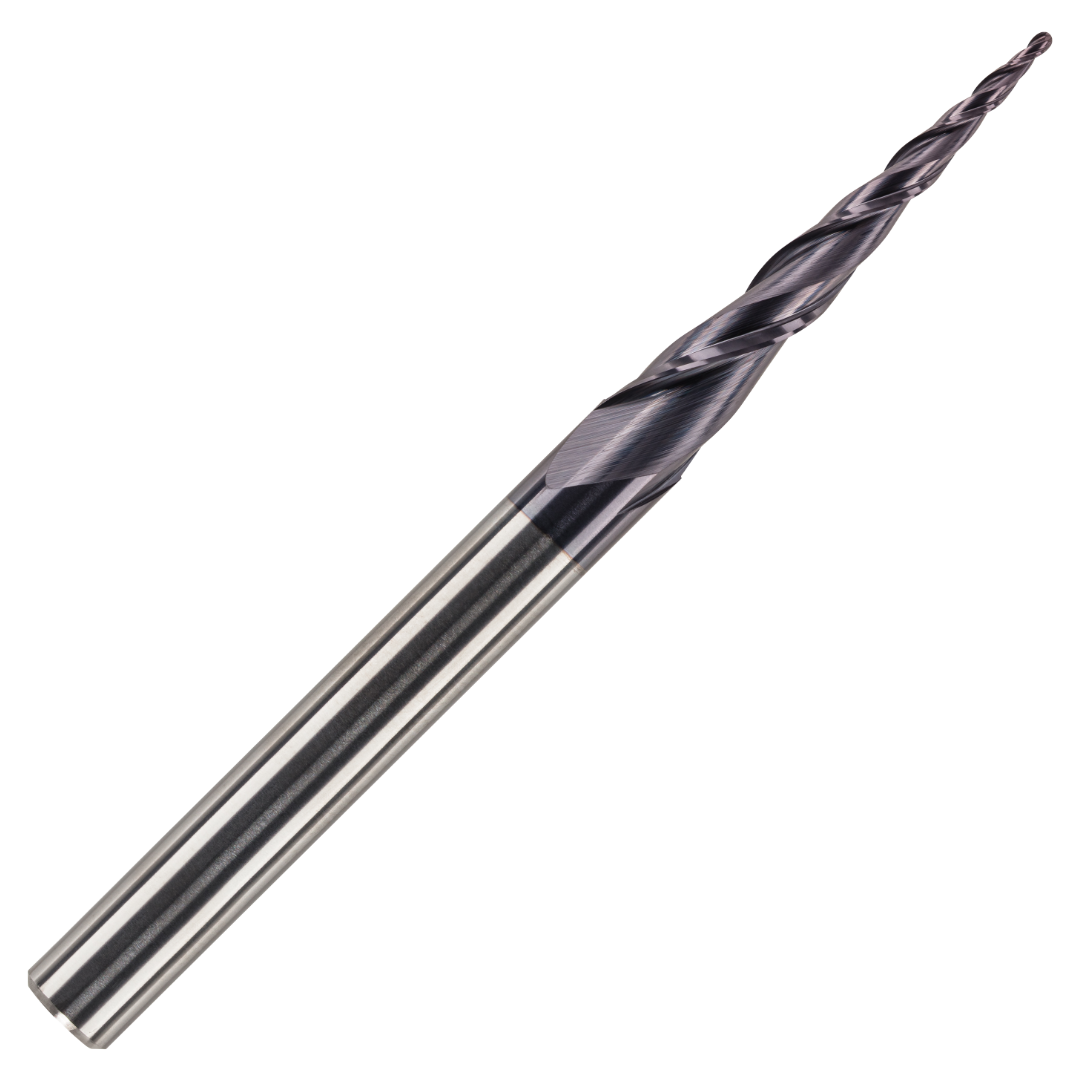

Solid Carbide Taper Ball Nose End Mill Engraving Bit TiAlN Coated

Solid Carbide Taper Ball Nose End Mill Engraving Bit TiAlN Coated

  • £10.59
Shipping calculated at checkout.

Only 33 left!

Solid Carbide Taper Ballnose Endmills -

Overall lengths -
4mm shank - 20.5mm Flute -  50mm Overall Length
6mm shank - 30mm Flute -  75mm Overall Length
6mm shank - 40mm Flute -  100mm Overall Length

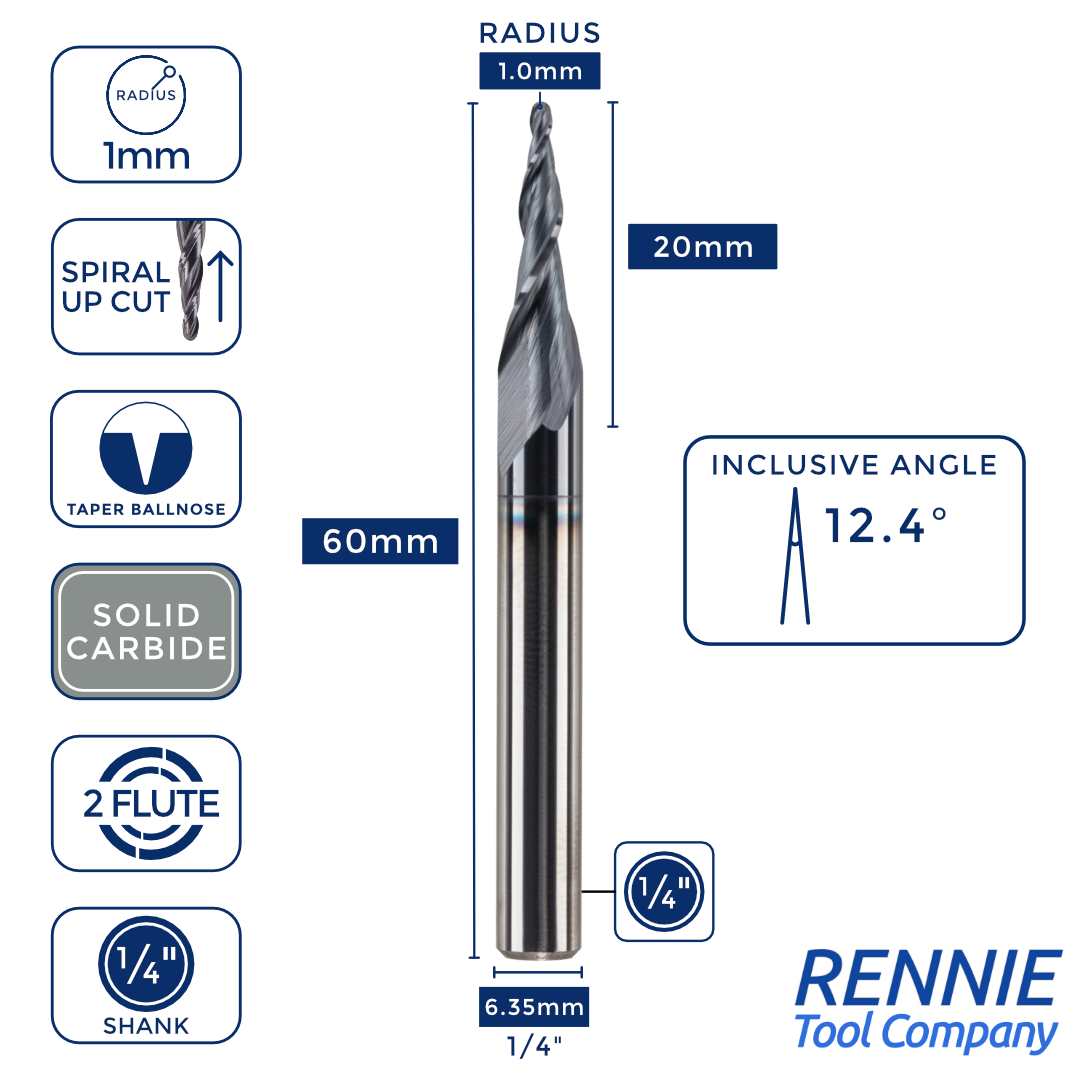

1/4" Shank - 20mm Flute - 60mm Overall Length
1/4" Shank - 30mm Flute - 75mm Overall Length
8mm shank - 75mm Flute -  120mm Overall Length

These are ideal for machining -
Wood - MDF/HDF, plywood, soft and hardwoods
Plastic - ABS, phenolics
Metal - copper, aluminium, brass and bronze
Signboard fibreglass and composites

Full Dimensions including taper ballnose router bit angles -

Radius

Flute

Length

Inclusive

Angle

Overall

Length

Shank

Diameter

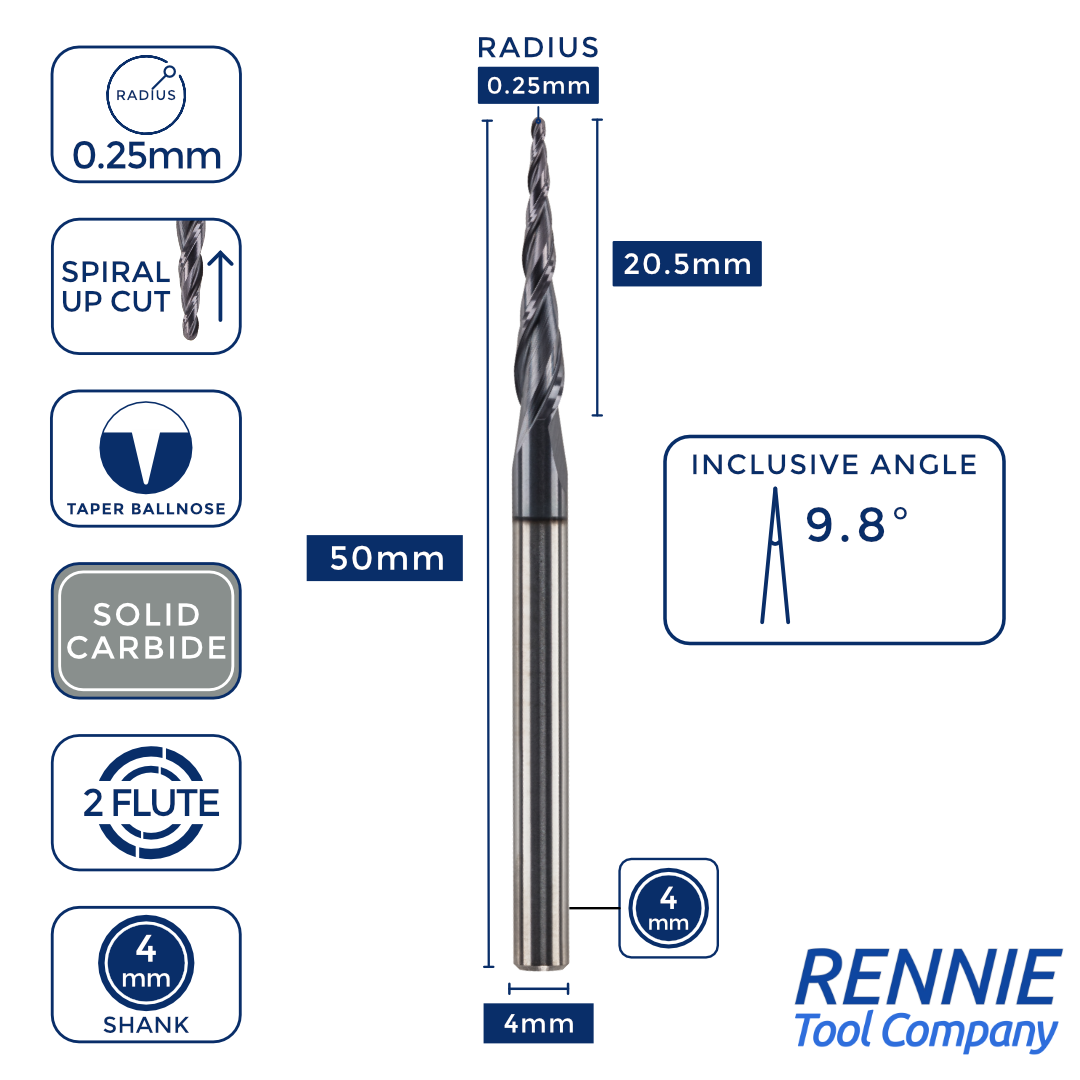

0.25mm 20.5mm 9.8 Degrees 50mm 4mm
0.25mm 30mm 10.5 Degrees 75mm 6mm
0.25mm 40mm 7.9 Degrees 100mm 6mm

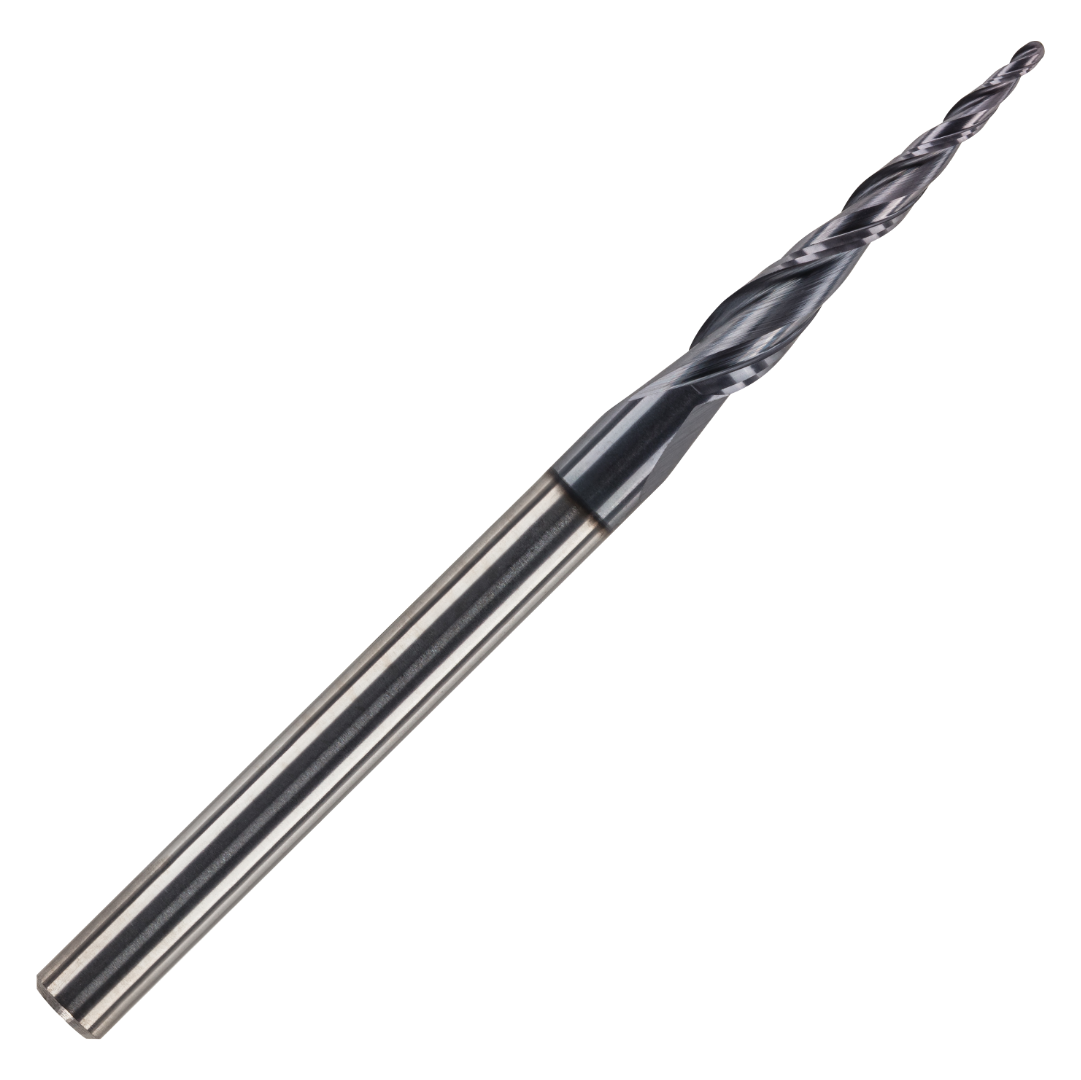

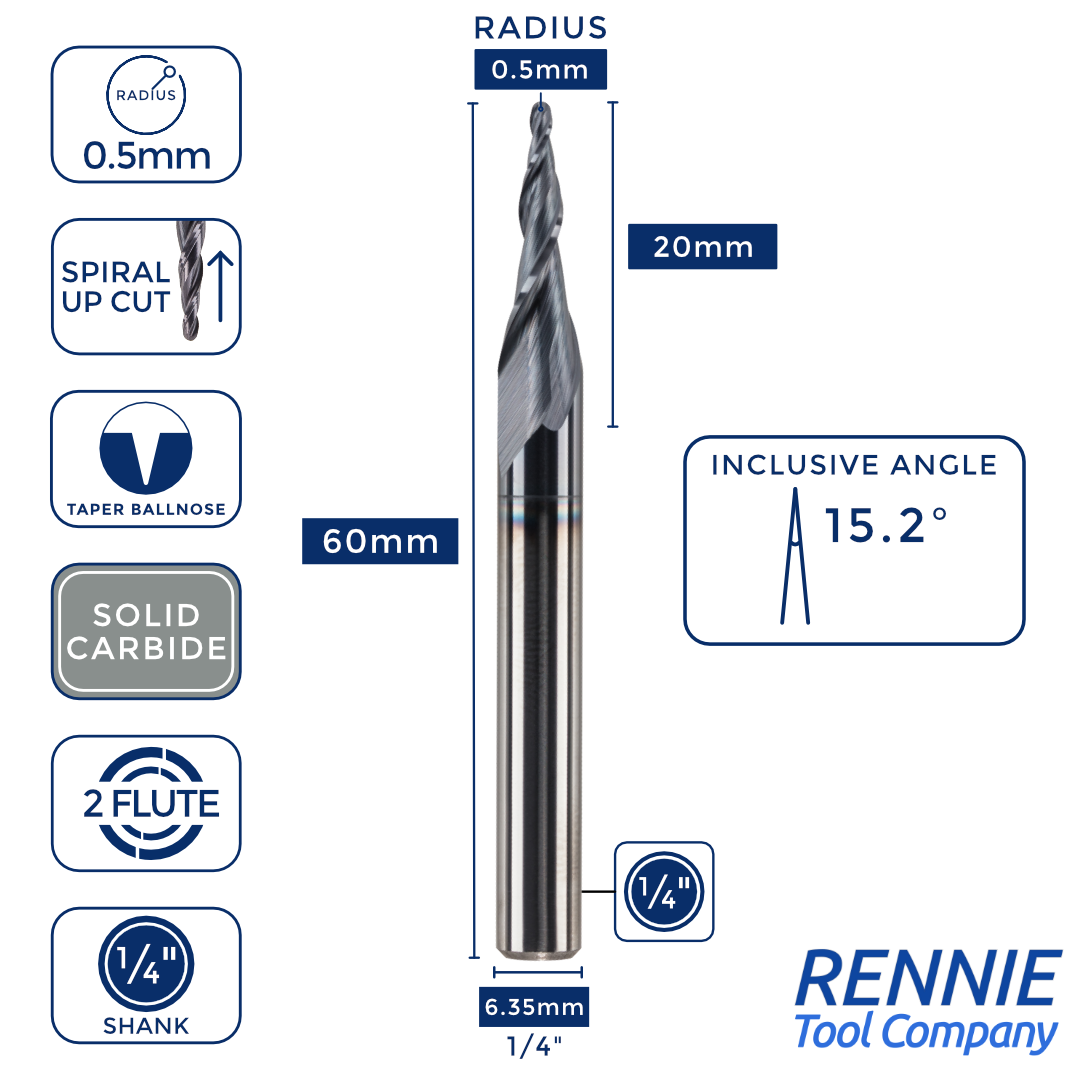

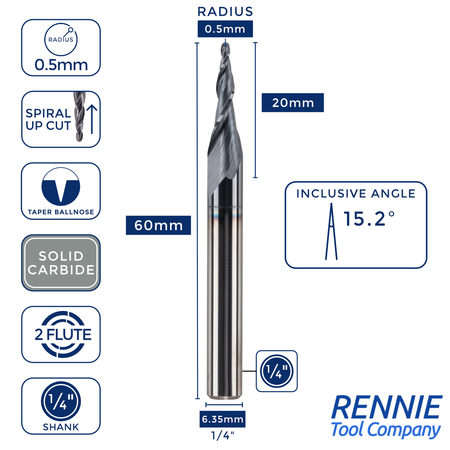

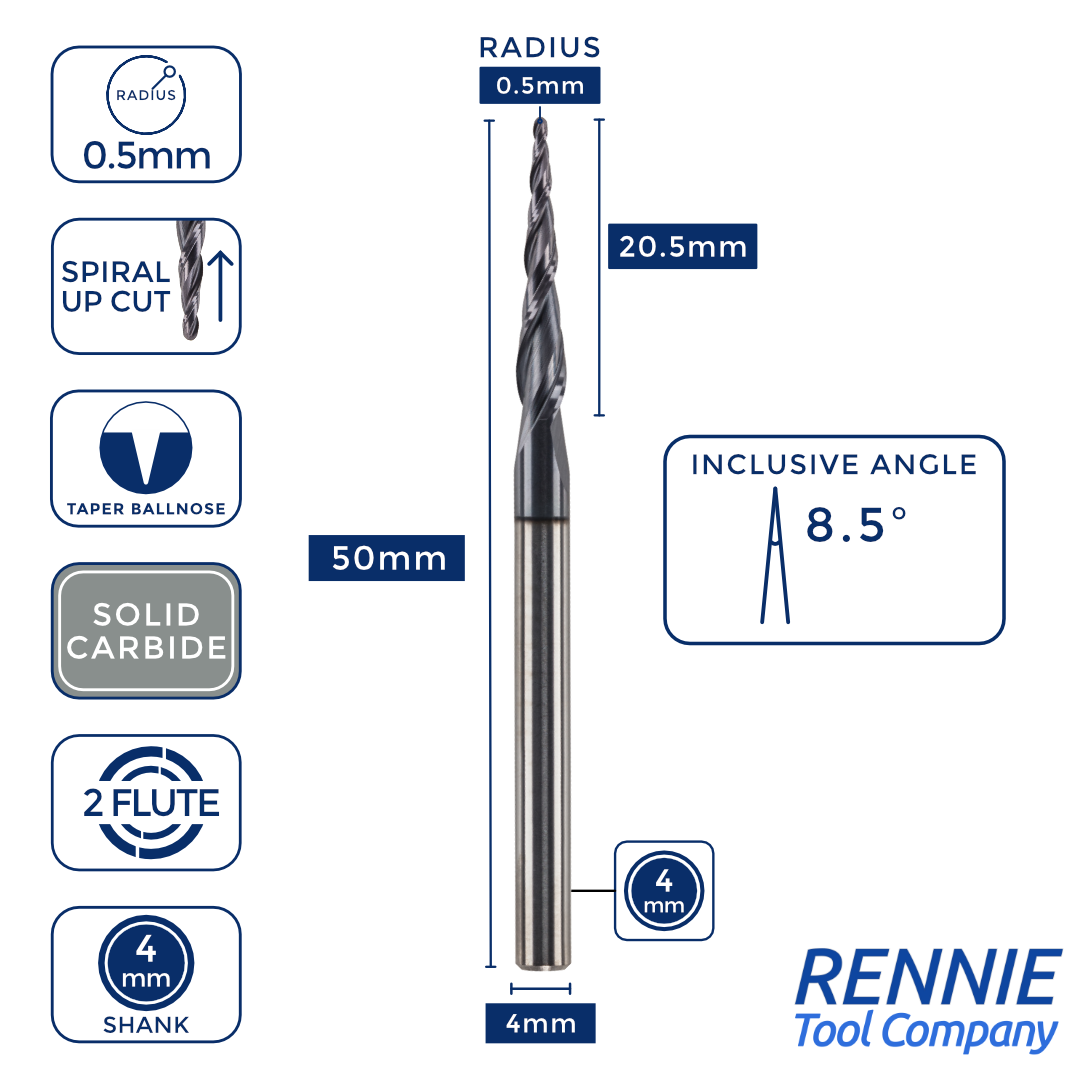

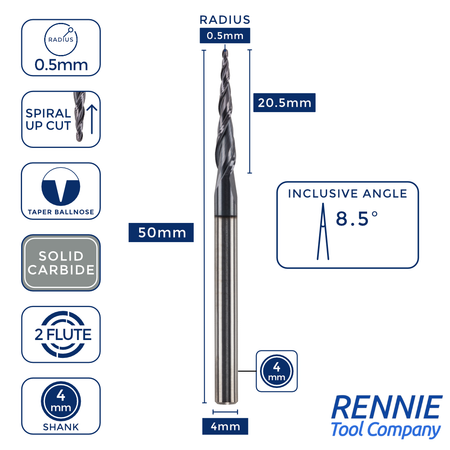

0.5mm 20.5mm 8.5 Degrees 50mm 4mm

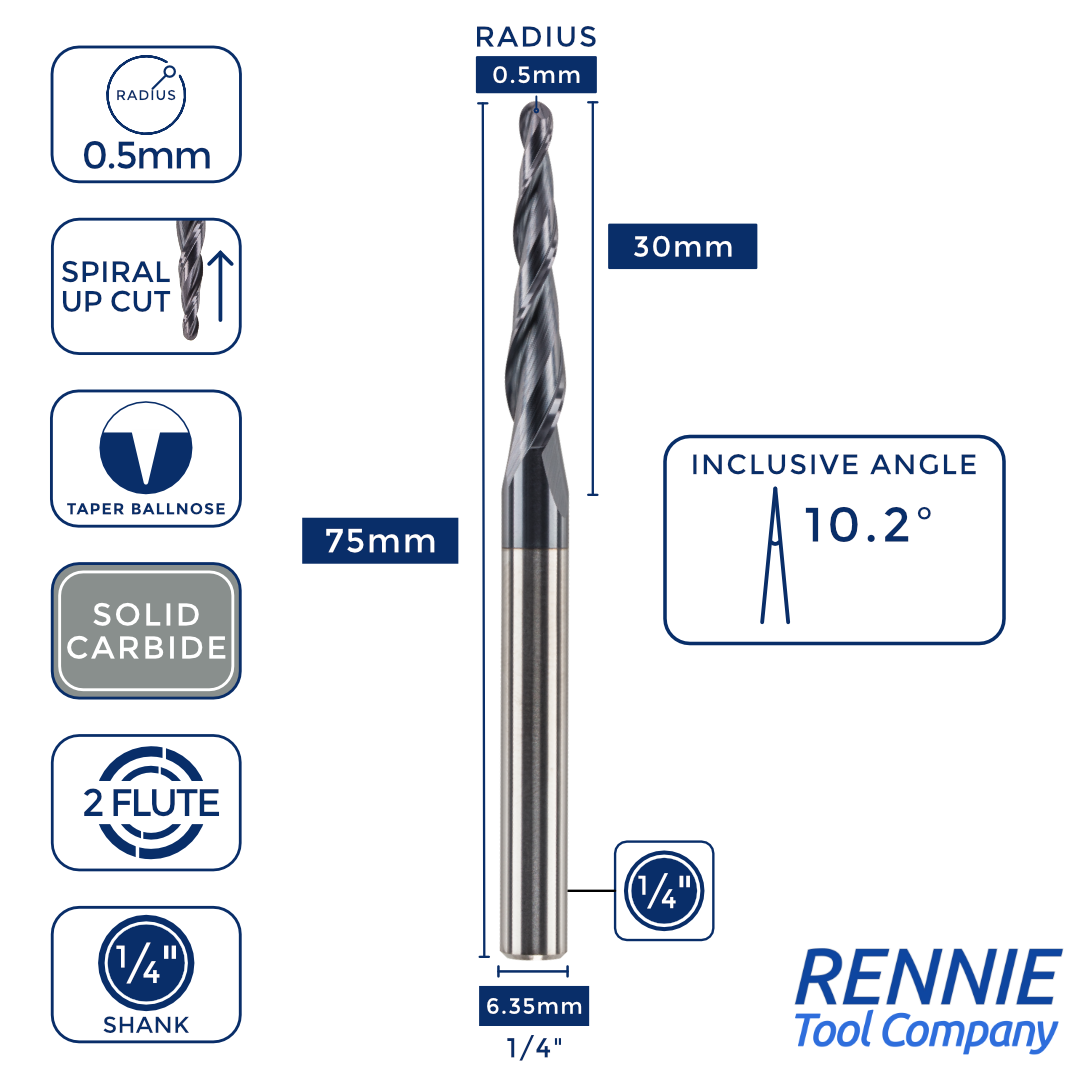

0.5mm 30mm 9.7 Degrees 75mm 6mm
0.5mm 40mm 7.3 Degrees 100mm 6mm

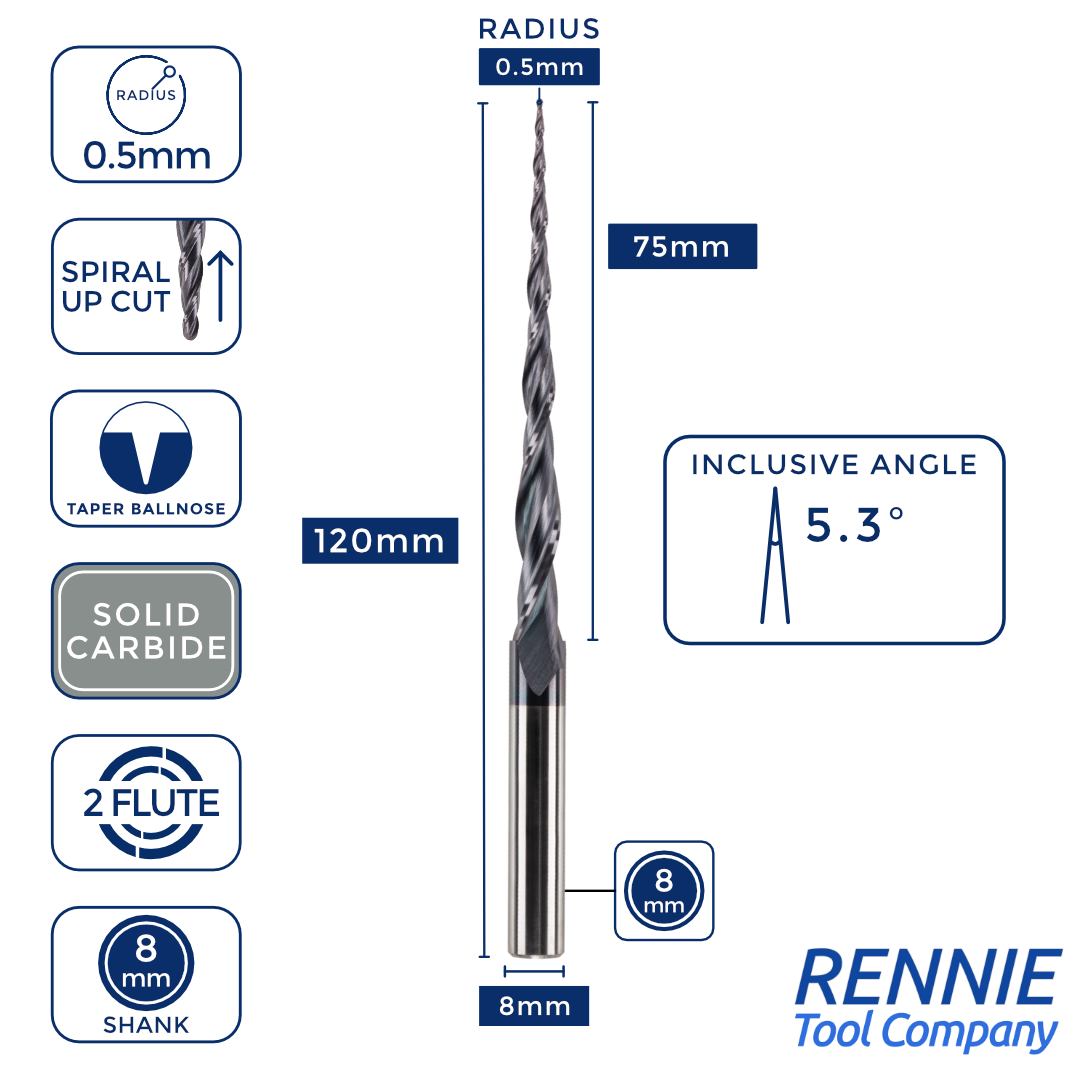

0.5mm 75mm 5.3 Degrees 120mm 8mm

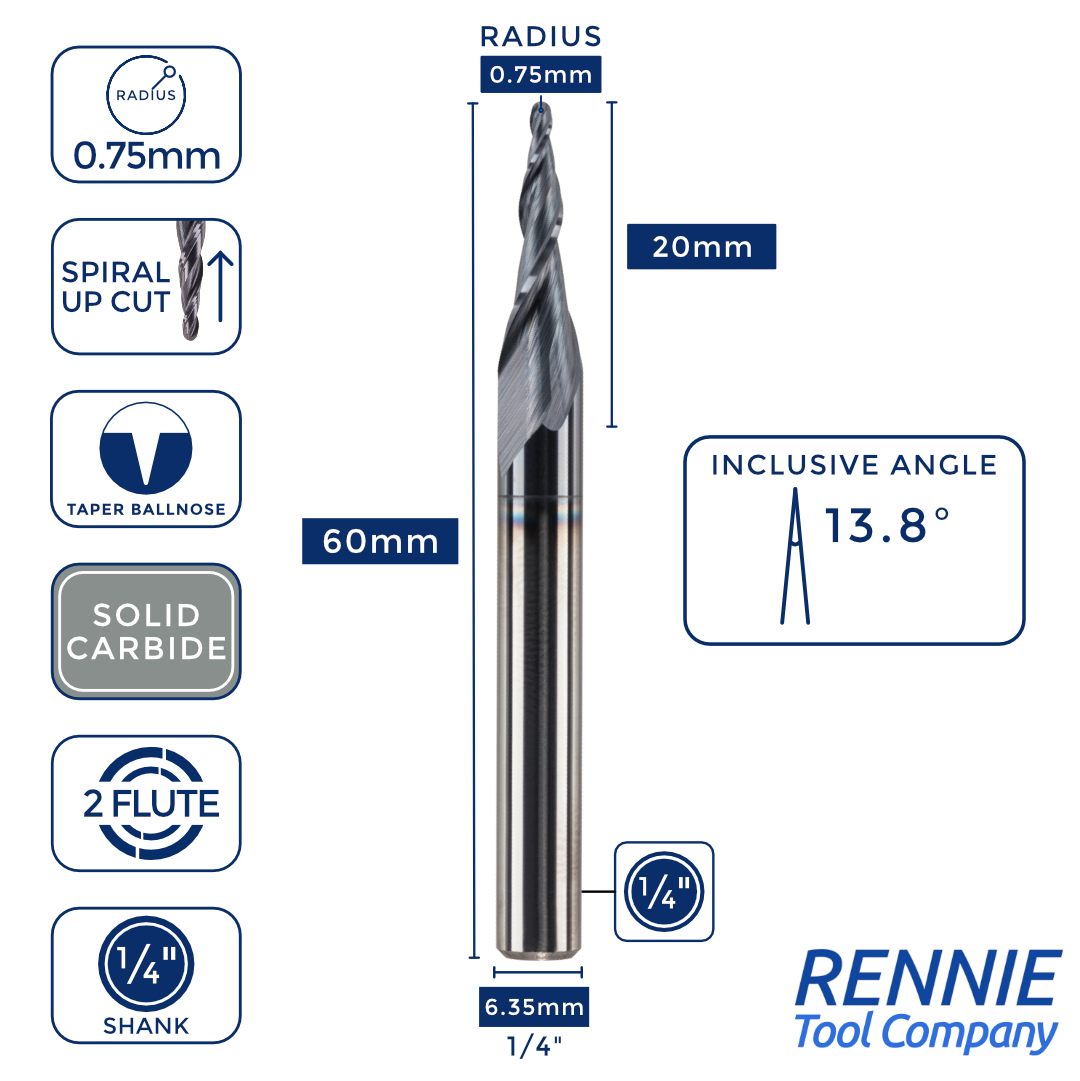

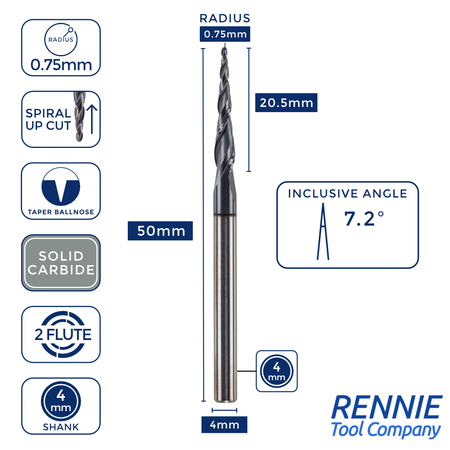

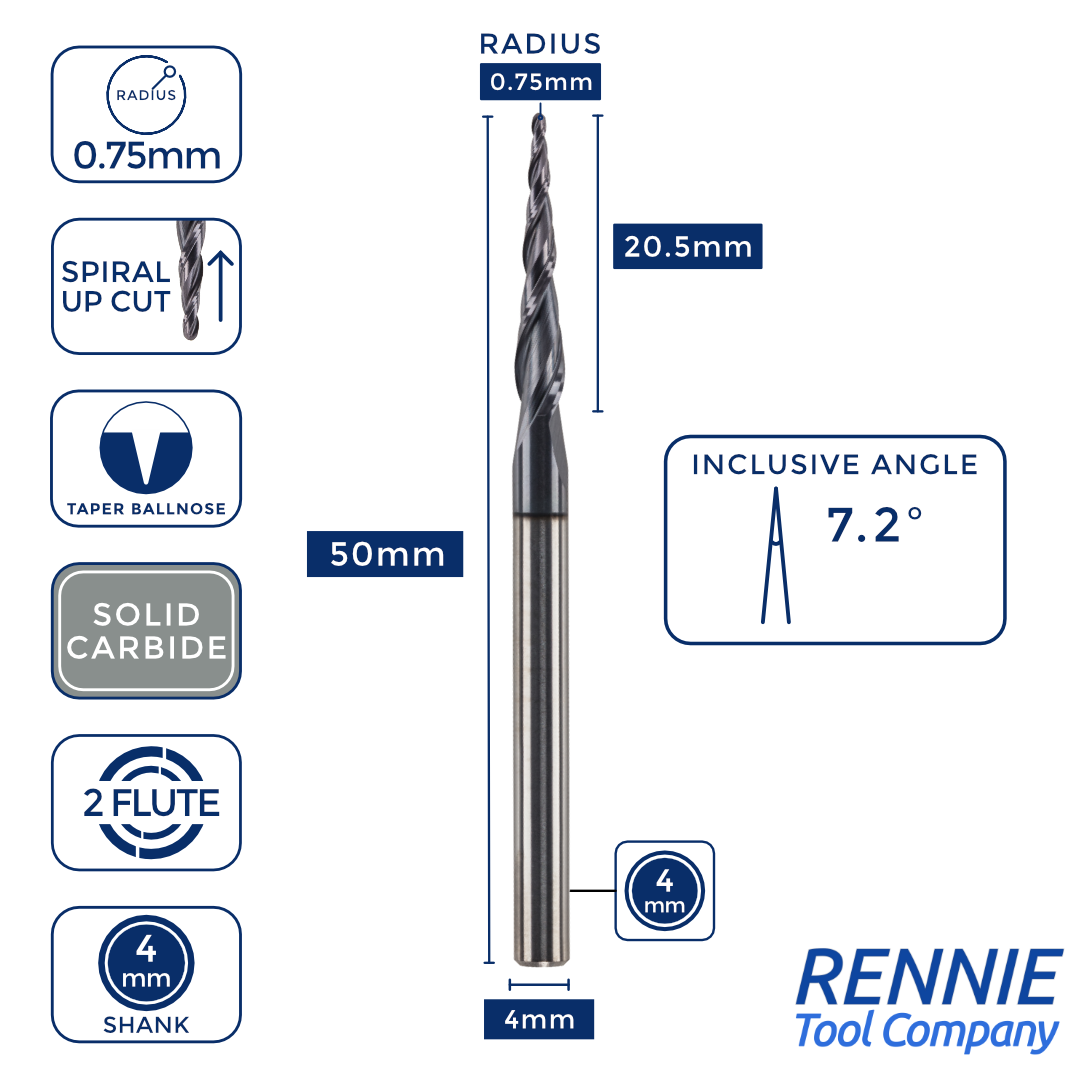

0.75mm 20.5mm 7.2 Degrees 50mm 4mm

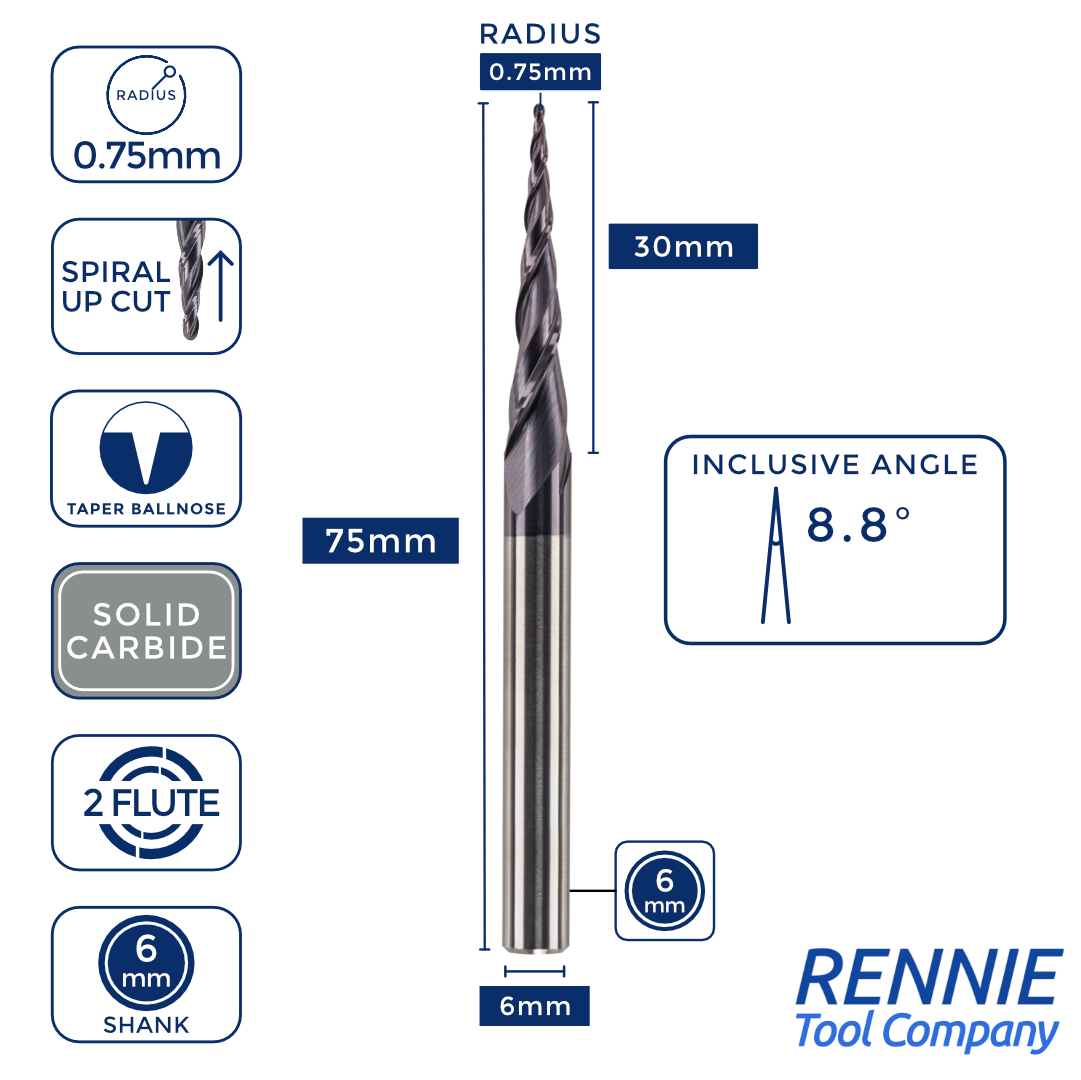

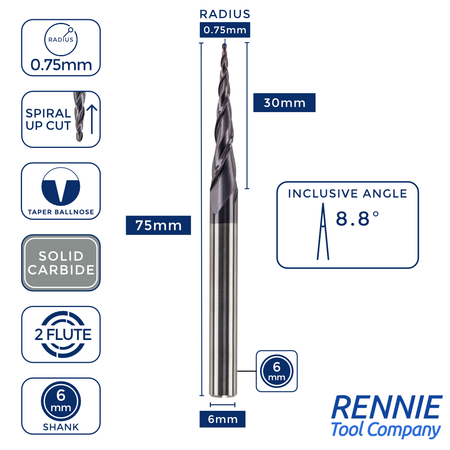

0.75mm 30mm 8.8 Degrees 75mm 6mm
0.75mm 40mm 6.5 Degrees 100mm 6mm
0.75mm 75mm 5 Degrees 120mm 8mm

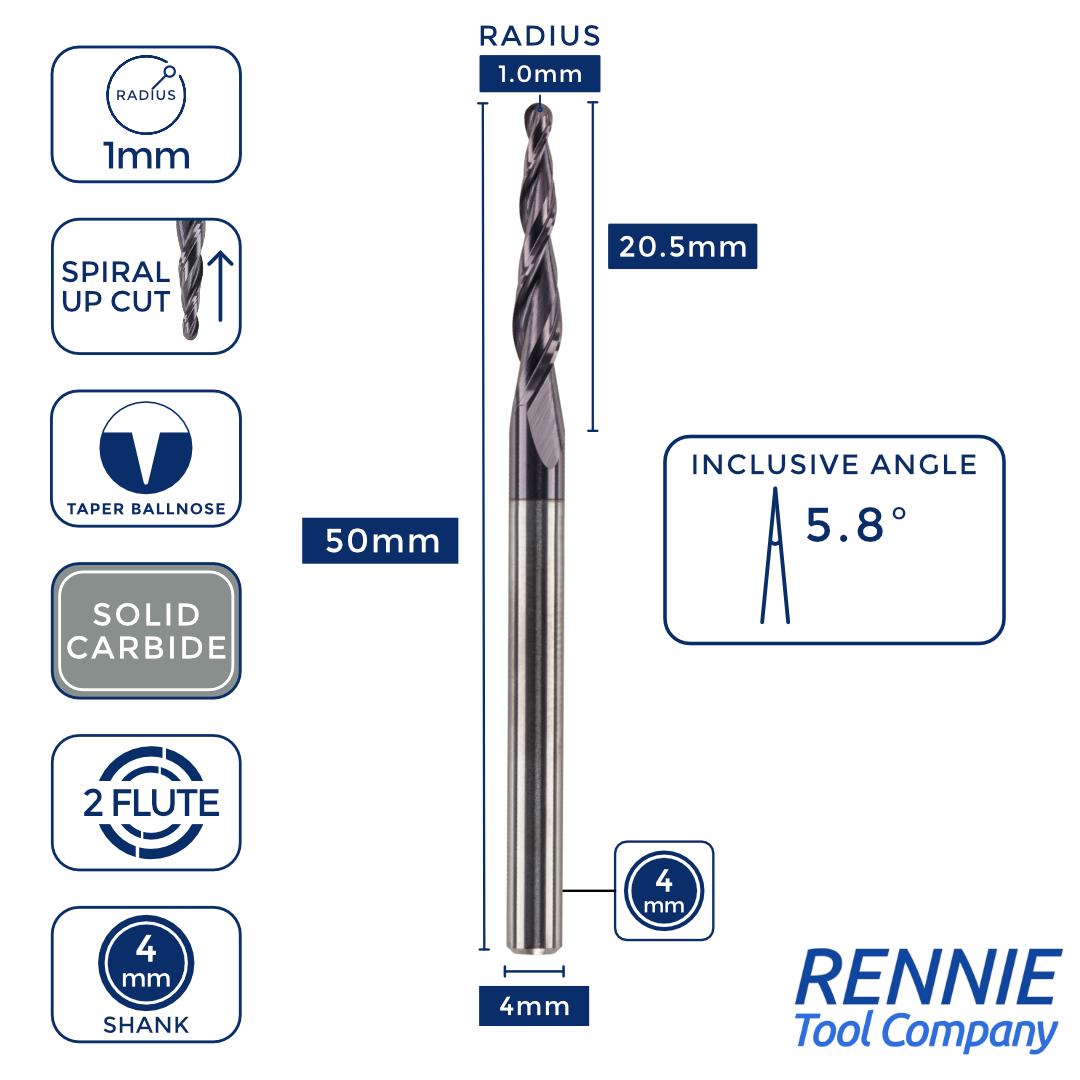

1mm 20.5mm 5.8 Degrees 50mm 4mm

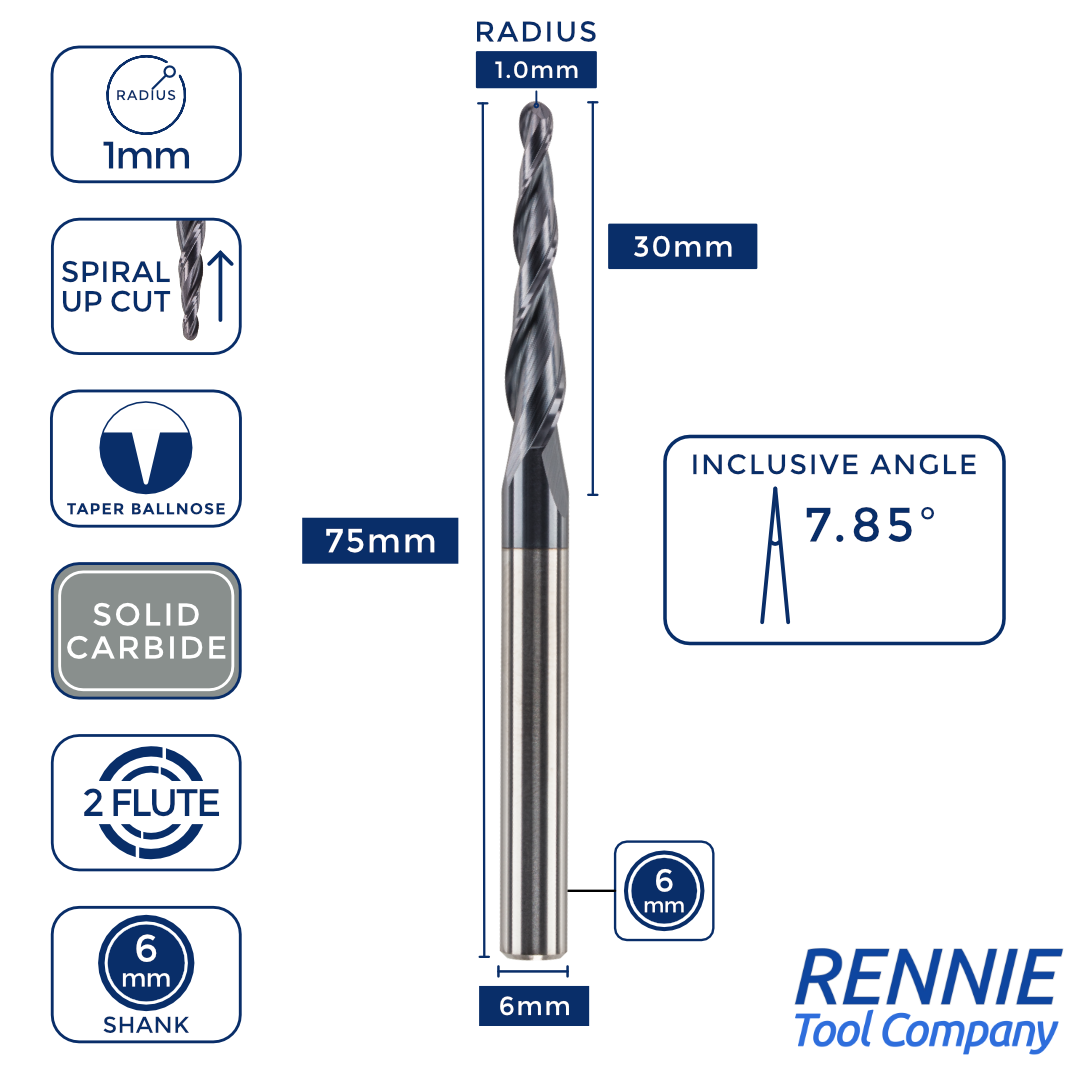

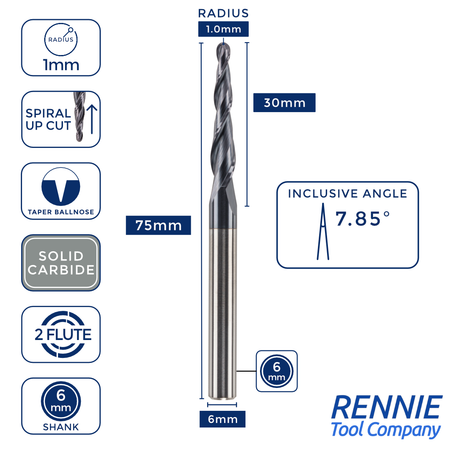

1mm 30mm 7.85 Degrees 75mm 6mm

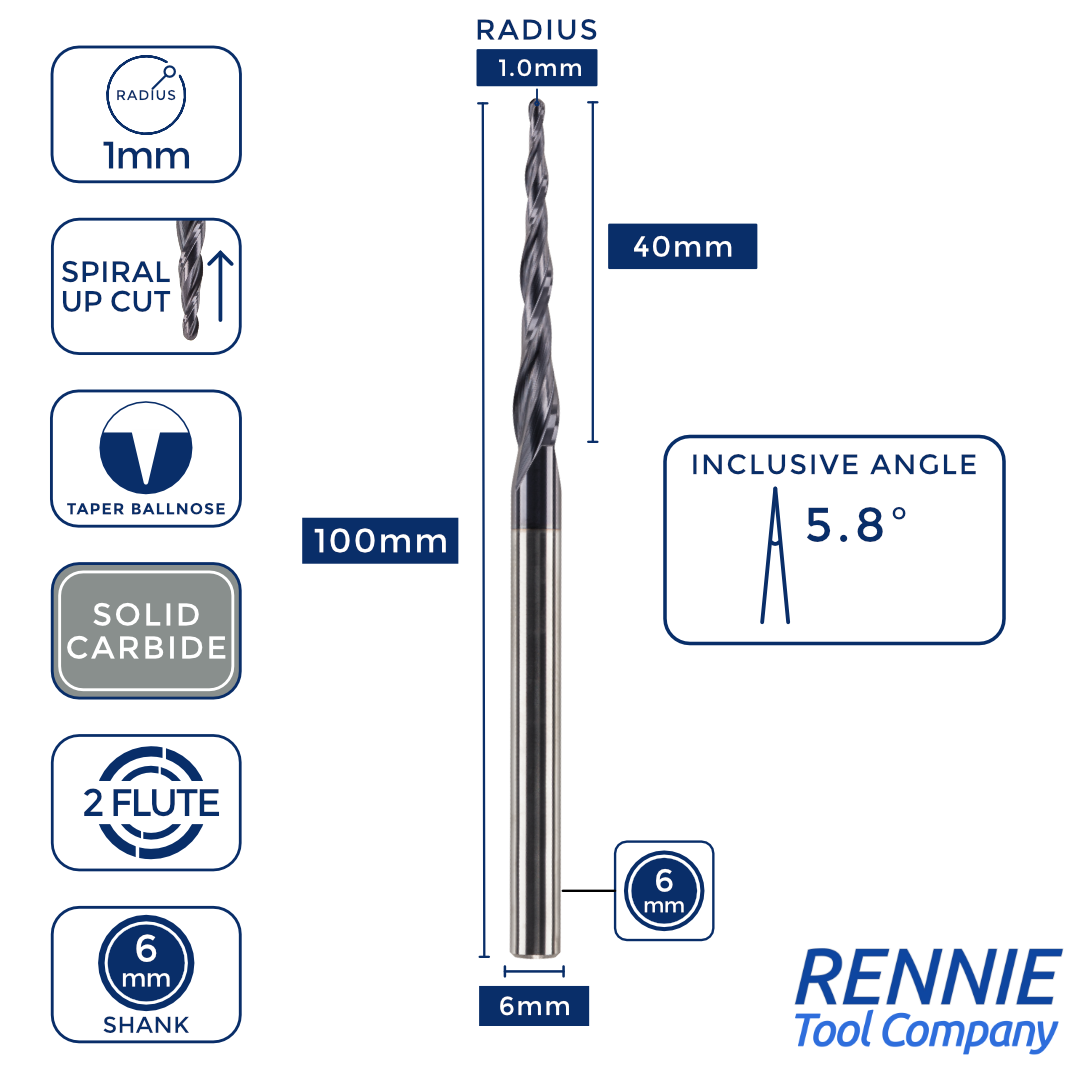

1mm 40mm 5.8 Degrees 100mm 6mm
1mm 75mm 4.6 Degrees 120mm 8mm
1.5mm 20.5mm 3 Degrees 50mm 4mm
1.5mm 30mm 6 Degrees 75mm 6mm
1.5mm 40mm 4.4 Degrees 100mm 6mm
1.5mm 75mm 3.8 Degrees 120mm 8mm
2mm 30mm 4 Degrees 100mm 6mm
2mm 40mm 3Degrees 100mm 6mm

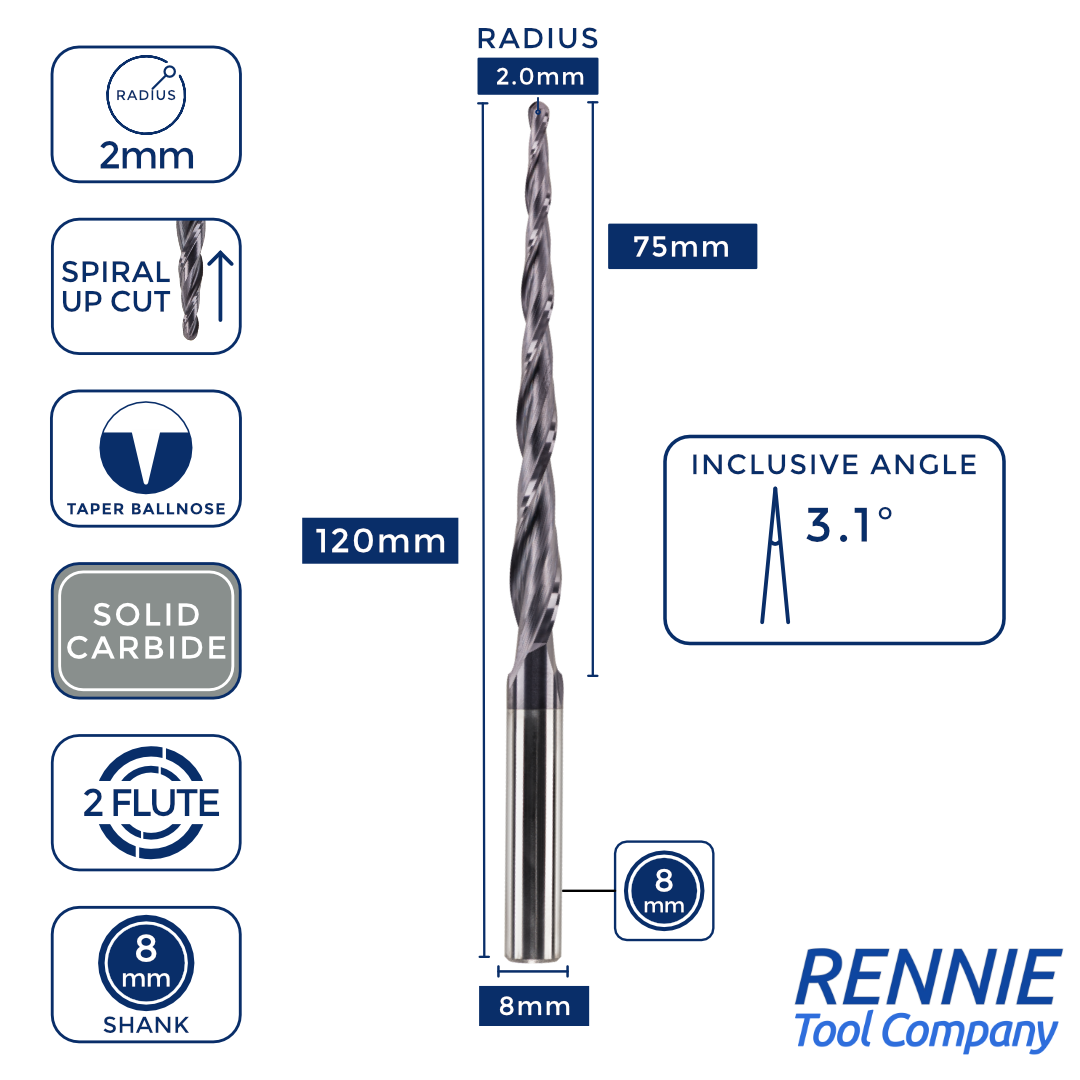

2mm 75mm 3.1 Degrees 120mm 8mm
