PCD Tipped Resharpenable Up Down Compression Spiral Router Cutter Bit
PCD RESHARPENABLE- can be re-sharpened for extended tool life
● For use on MDF,HDF, hard natural timber, raw, veneered and laminated particle board, plywood, hardboard and solid laminates.
● Suitable for profiling, rebating, grooving and aperture forming.
● Use in fixed head, NC or CNC routers only.
● Segmented tip (compression cut style)
● Up cut and down cut shear to prevent edge breakout on veneers and laminates
RH cutting rotation
RPM = 18000 - 24000 Vf = 4-8 m/min Reduce feed rate for severing operations. Suitable for ramp plunge cutting operations
Sturdy tool body with 3 helically positioned wings. Cutting length on each of the 3 wings (Z=1)

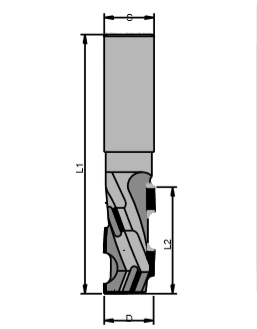

Dimensions -
| D | L2 | L1 | Flutes | S |
| 10mm | 25mm | 70mm | 3 | 12.7mm |
| 12mm | 25mm | 70mm | 3 | 12mm |
| 14mm | 25mm | 70mm | 3 | 12.7mm |
| 14mm | 35mm | 80mm | 3 | 12.7mm |
| 16mm | 35mm | 80mm | 3 | 12.7mm |
| 16mm | 25mm | 85mm | 3 | 16mm |
| 16mm | 35mm | 95mm | 3 | 16mm |
| 18mm | 25mm | 85mm | 3 | 16mm |
| 18mm | 35mm | 95mm | 3 | 16mm |
| 18mm | 43mm | 105mm | 3 | 16mm |
| 18mm | 35mm | 105mm | 3 | 25mm |
| 18mm | 43mm | 115mm | 3 | 25mm |
| 1/2" | 1" | 2.3/4" | 3 | 1/2" |
| 1/2" | 1.3/8" | 3.1/8" | 3 | 1/2" |
| 5/8" | 1" | 2.7/8" | 3 | 1/2" |
| 3/4" | 1" | 3.3/8" | 3 | 1/2" |
